DTC B2288: Steering Lock Signal Circuit Malfunction: Wiring Diagram

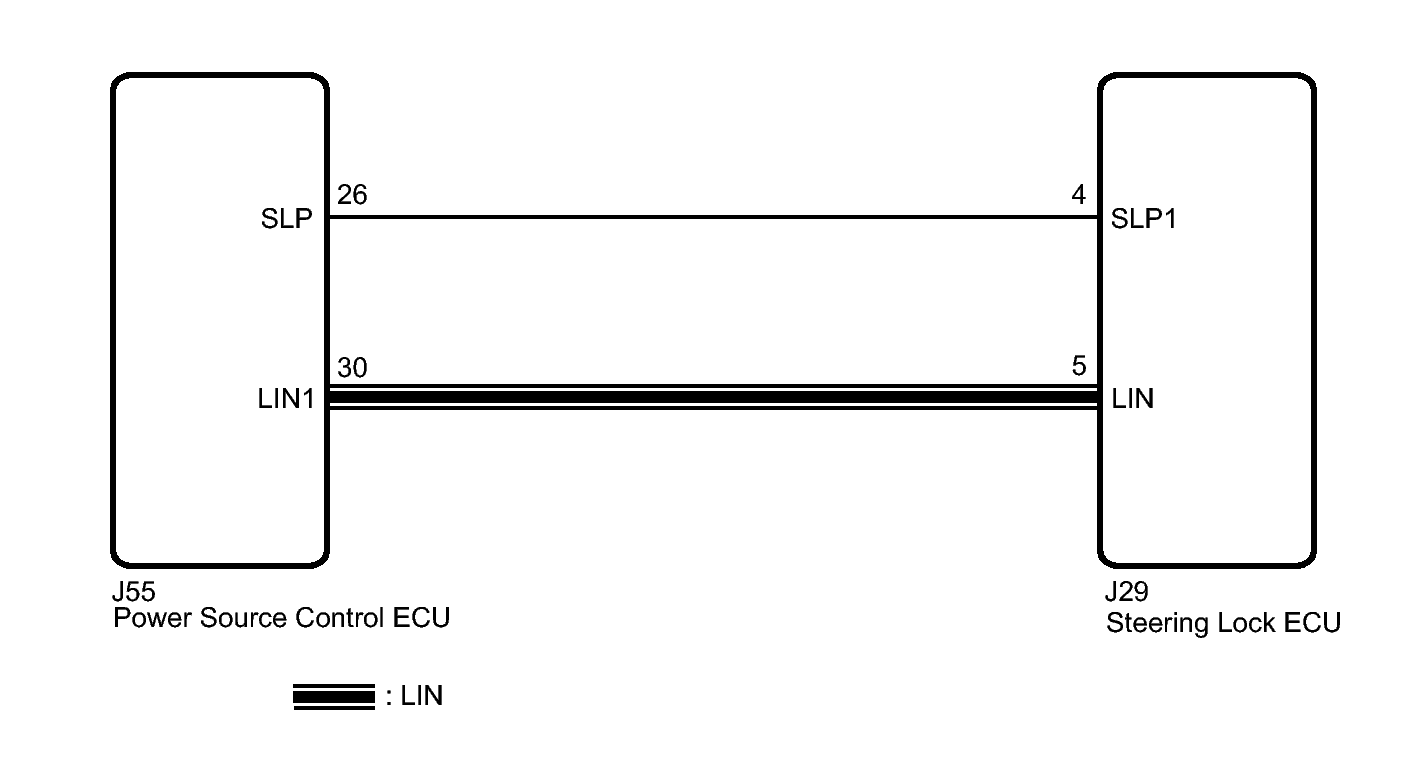

Fig 1: Steering Lock Signal Circuit Wiring Diagram

GTY256044

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
