DTC B2281: "P" Signal Malfunction: Wiring Diagram

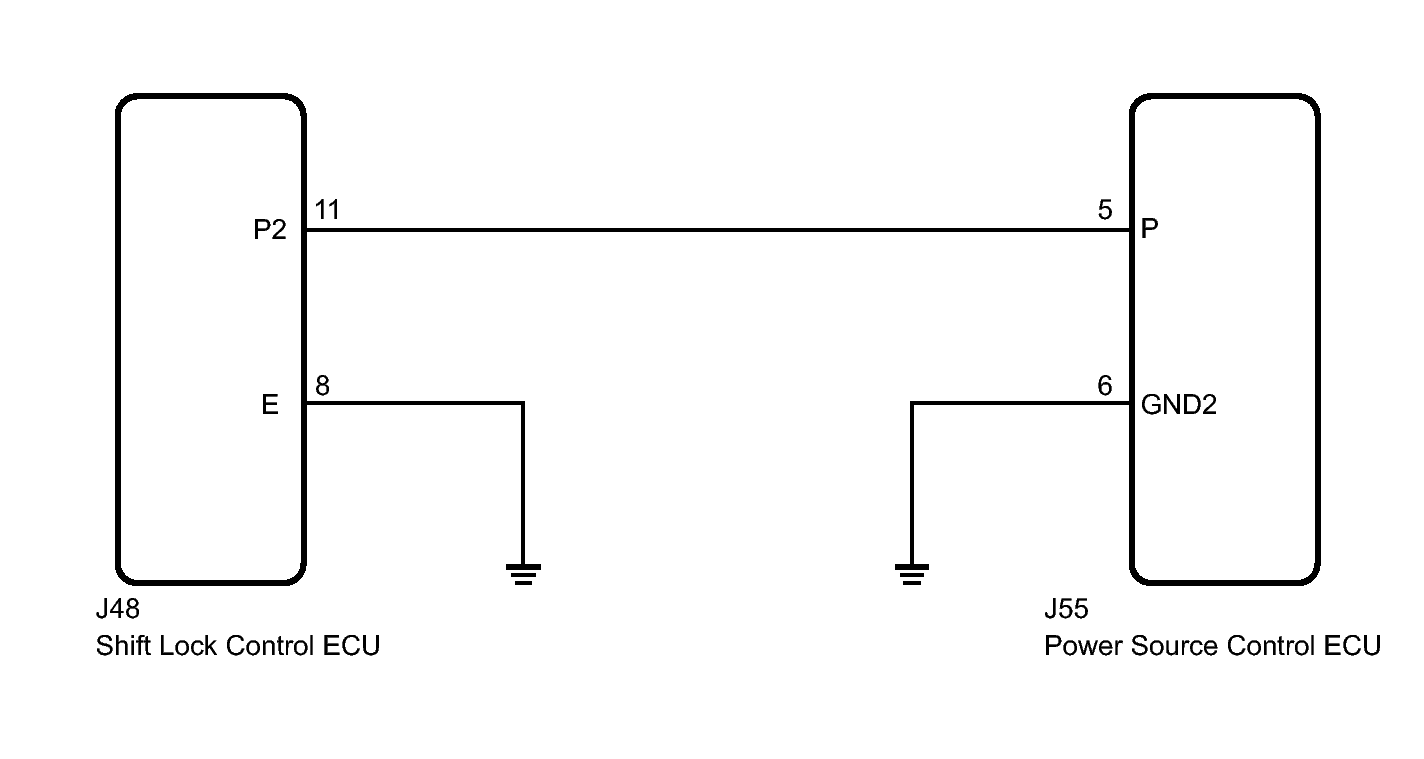

Fig 1: Skid Lock Control ECU And Power Source Control ECU Wiring Diagram

GTY114762

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
