Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

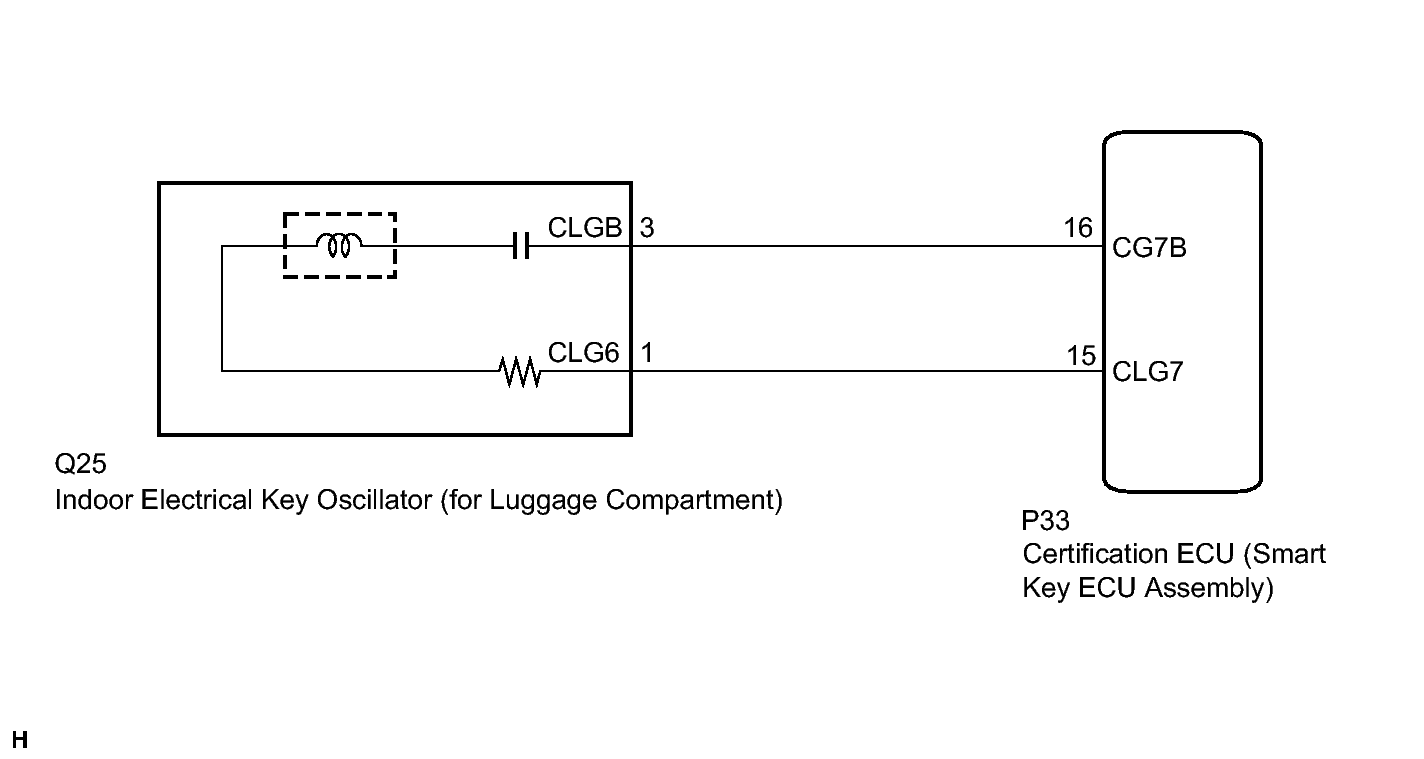

Fig 1: Key Luggage Compartment Lock-in Wiring Diagram

GTY356452

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
