Driver Side Door Entry Lock Function does not Operate: Wiring Diagram

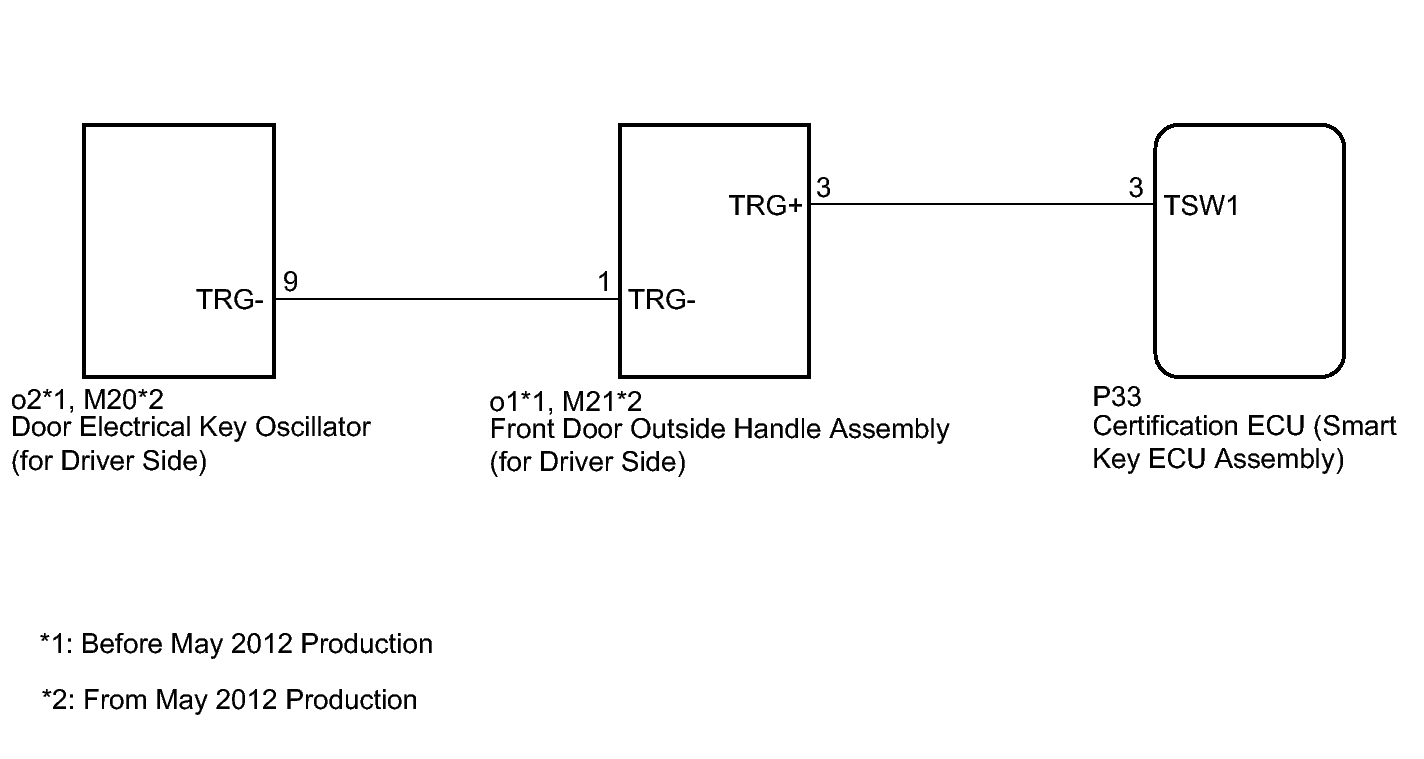

Fig 1: Driver Side Door Entry Wiring Diagram

GTY394139

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
