All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate: Procedure

  1. READ VALUE USING TECHSTREAM (ENTRY CANCEL FUNCTION)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Smart Access / Data List.
    5. Read the Data List according to the display on the Techstream.
      SMART ACCESS (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Entry Cancel SW Entry function cancel / ON or OFF Mode status displayed -
      RESULT

      Result Proceed to
      Entry function cancel is OFF A
      Entry function cancel is ON B

    B → See step   7

    A: Go to next step

  2. CHECK WAVE ENVIRONMENT
    1. Move the key as described below and perform the operation inspection.

      HINT:

      • When the key is brought near the door outside handle assembly or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • The transmitting waves of the wireless functions and entry functions are the same, but the wave logic is different. Therefore, it is possible that only the wireless functions or only the entry functions are affected by wave interference.
    2. Bring the key near the driver door outside handle assembly, and perform a front driver door entry lock and unlock operation check.

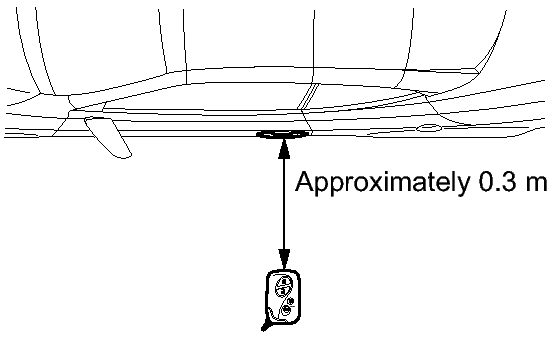

      Fig 1: Checking The Entry Lock Function
      GTY282606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When pressing the lock switch, hold the key about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

    3. Bring the key near the front passenger door outside handle assembly, and perform a front passenger door entry lock and unlock operation check.

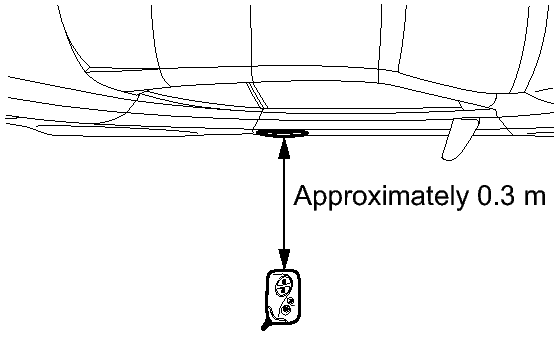

      Fig 2: Identifying Door Entry Lock & Unlock Operation Check
      GTY281035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When pressing the lock switch, hold the key about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the door outside handle assembly, communication is not possible.

    4. Bring the key near the outside electrical key oscillator (for luggage compartment), and perform an entry luggage compartment door open function check.

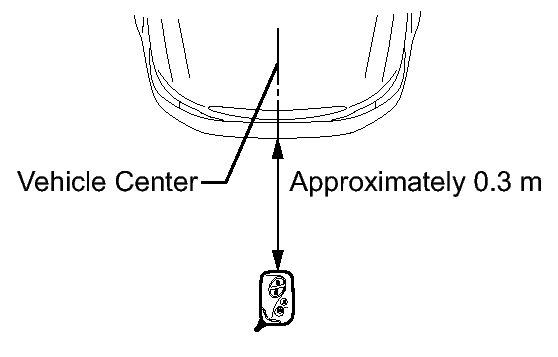

      Fig 3: Identifying Entry Luggage Compartment Door Open Function Check
      GTY279736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      When pressing the luggage door opener outer switch, hold the key about 1 m (3.28 ft.) above the ground and about 0.3 m (0.984 ft.) away from the vehicle as shown in the illustration.

      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication is not possible.

      HINT:

      If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      RESULT

      Result Proceed to
      Entry function does not operate for all doors. A
      Entry function operates for all doors. B
      Entry function operates for an individual door. C

    B → AFFECTED BY WAVE INTERFERENCE

    C → See step   13

    A: Go to next step

  3. PERFORM KEY DIAGNOSTIC MODE INSPECTION
    1. Diagnostic mode inspection (door electrical key oscillator (for driver side))

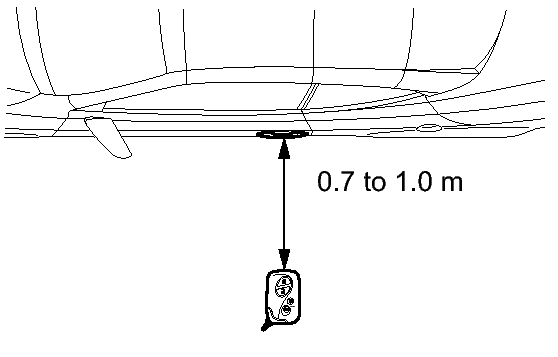

      Fig 4: Identifying Unlock Standby Mode
      GTY258566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Driver Side.
      5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        Hold the key at the same height as the door outside handle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

    2. Diagnostic mode inspection (door electrical key oscillator (for front passenger side))

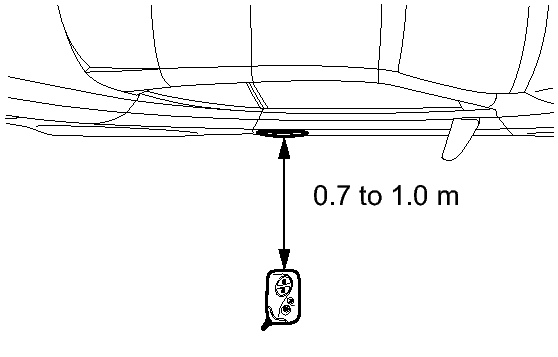

      Fig 5: Diagnostic Mode Inspection (Door Electrical Key Oscillator (For Front Passenger Side)
      GTY287619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Passenger Side.
      5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        Hold the key at the same height as the door outside handle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

    3. Diagnostic mode inspection (indoor electrical key oscillator (for front floor))
      Fig 6: Checking The Entry Ignition Function
      GTY282343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Front Room.
      5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        Place the key on the driver or front passenger seat cushion.

    4. Diagnostic mode inspection (indoor electrical key oscillator (for rear floor))
      Fig 7: Identifying Inspecting Point
      GTY281983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Utility / Smart Access / Communication Check (Key Diag Mode) / Overhead + Rear Room.
      5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        Place the key on the rear seat cushion.

    5. Diagnostic mode inspection (indoor electrical key oscillator (for luggage compartment))

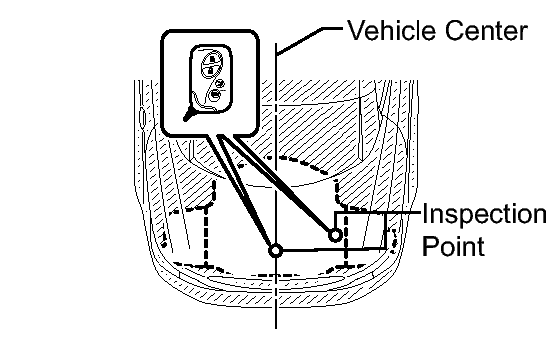

      Fig 8: Identifying Key Lock-In Prevention Function (For Luggage Compartment)
      GTY256316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Utility / Smart Access / Communication Check (Key Diag mode) / Overhead + Luggage (inside).
      5. When the key is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

        HINT:

        Place the key on the luggage area.

    6. Diagnostic mode inspection (outside electrical key oscillator (for luggage compartment))

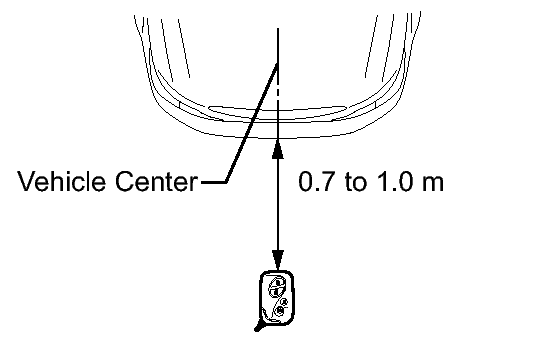

      Fig 9: Checking The Entry Luggage Compartment Door Open Function
      GTY262351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Utility / Communication Check (Key Diag Mode) / Overhead + Luggage (outside).
      5. When the key is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

        HINT:

        Hold the key at the same height as the rear bumper upper surface and align with the center of the rear of the vehicle (0.7 to 1.0 m (2.30 to 3.28 ft.)). Make sure that the direction of the key is as shown in the illustration.

        RESULT

        Result Proceed to
        Wireless door lock buzzer does not sound for all electrical key oscillators. A
        Wireless door lock buzzer does not sound only for either door electrical key oscillator. B
        Wireless door lock buzzer does not sound only for one indoor electrical key oscillator. C
        Wireless door lock buzzer does not sound only for outside electrical key oscillator (for luggage compartment). D
        Wireless door lock buzzer sounds for all electrical key oscillators. E

    B → See step   8

    C → See step   9

    D → See step   10

    E → See step   11

    A: Go to next step

  4. REPLACE ELECTRICAL KEY TRANSMITTER
    1. Replace the key.

    NEXT: Go to next step

  5. REGISTER ELECTRICAL KEY TRANSMITTER
    1. Register the key. Refer to REGISTRATION .

    NEXT: Go to next step

  6. CHECK ELECTRICAL KEY TRANSMITTER (OPERATION)
    1. Check that the entry functions operate normally. Refer to OPERATION CHECK .

      OK

      Entry functions operate normally.

    NG → See step   12

    OK → END (ELECTRICAL KEY TRANSMITTER WAS DEFECTIVE)

  7. PERFORM CANCELLATION OF ENTRY KEY CANCEL FUNCTION. Refer to  CUSTOMIZE PARAMETERS
  8. GO TO OTHER PROBLEM (Proceed to Problem Symptoms Table Flow Chart for Each Door). Refer to  PROBLEM SYMPTOMS TABLE
  9. GO TO OTHER PROBLEM (Room Oscillator does not Recognize Key). Refer to  Room Oscillator does not Recognize Key
  10. GO TO OTHER PROBLEM (Proceed to Problem Symptoms Table). Refer to  PROBLEM SYMPTOMS TABLE
  11. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL
  12. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL
  13. GO TO OTHER PROBLEM (Proceed to Problem Symptoms Table). Refer to  PROBLEM SYMPTOMS TABLE
