Parts Location: Illustration

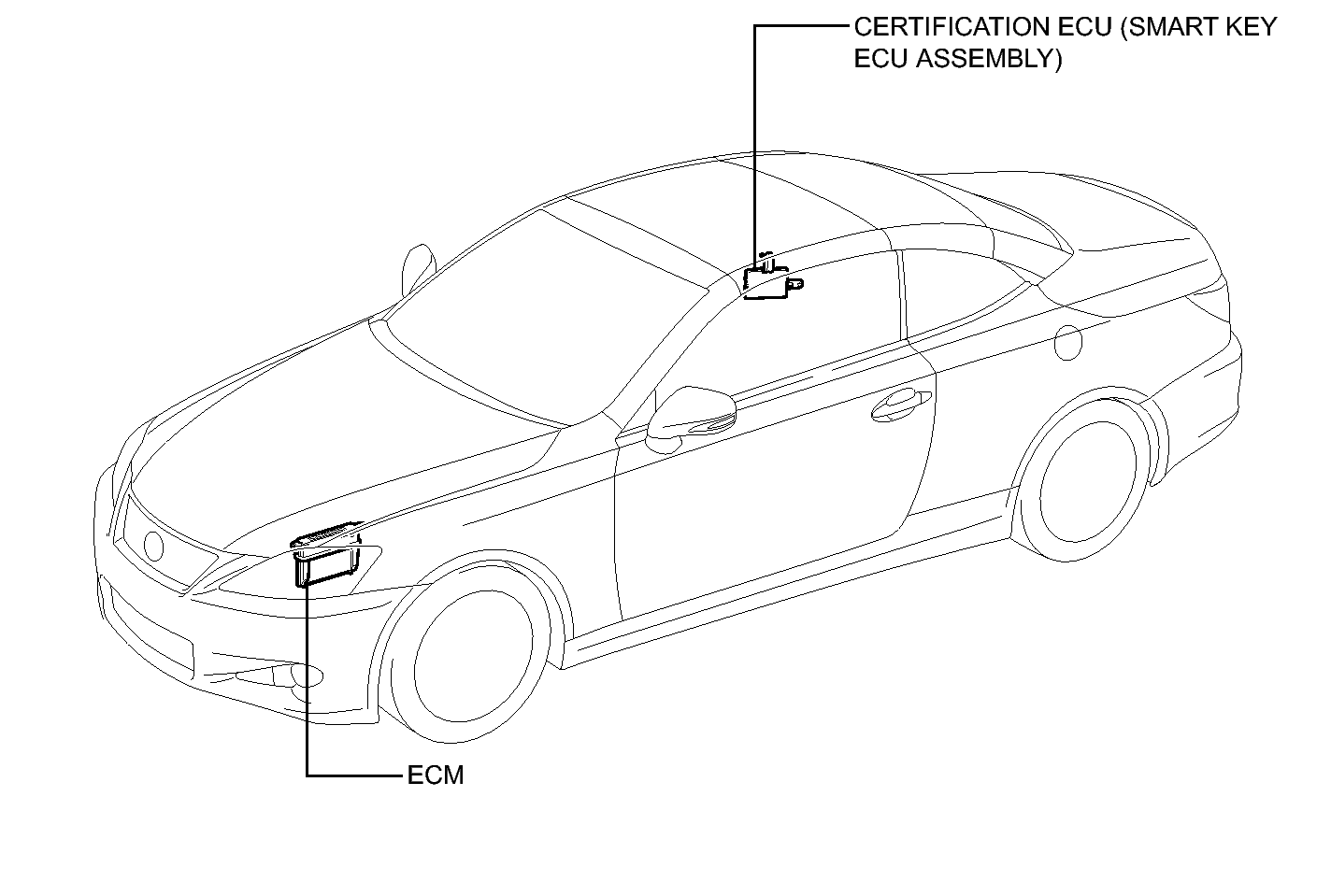

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 4)
GTY256756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

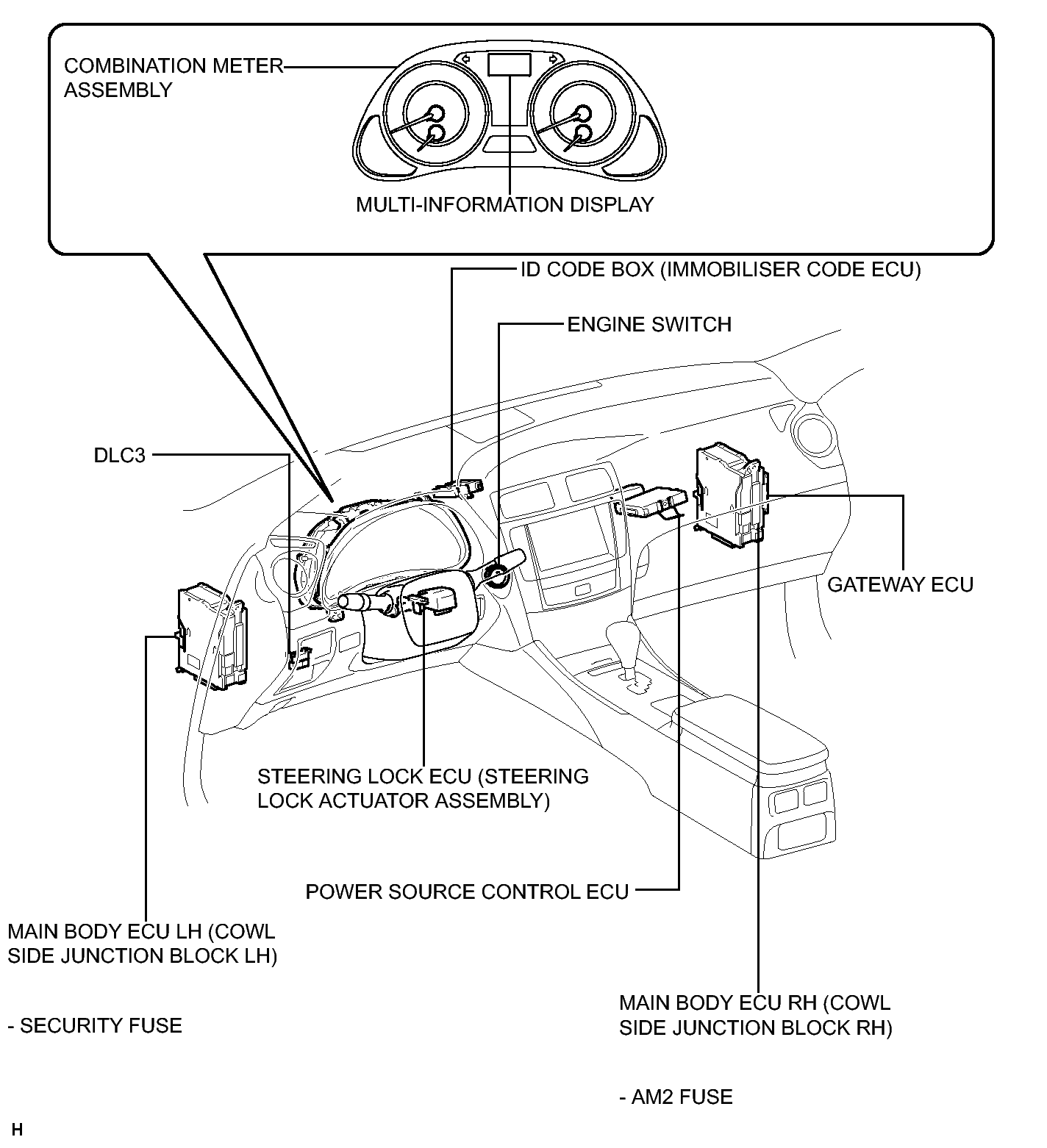

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 4)
GTY276967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

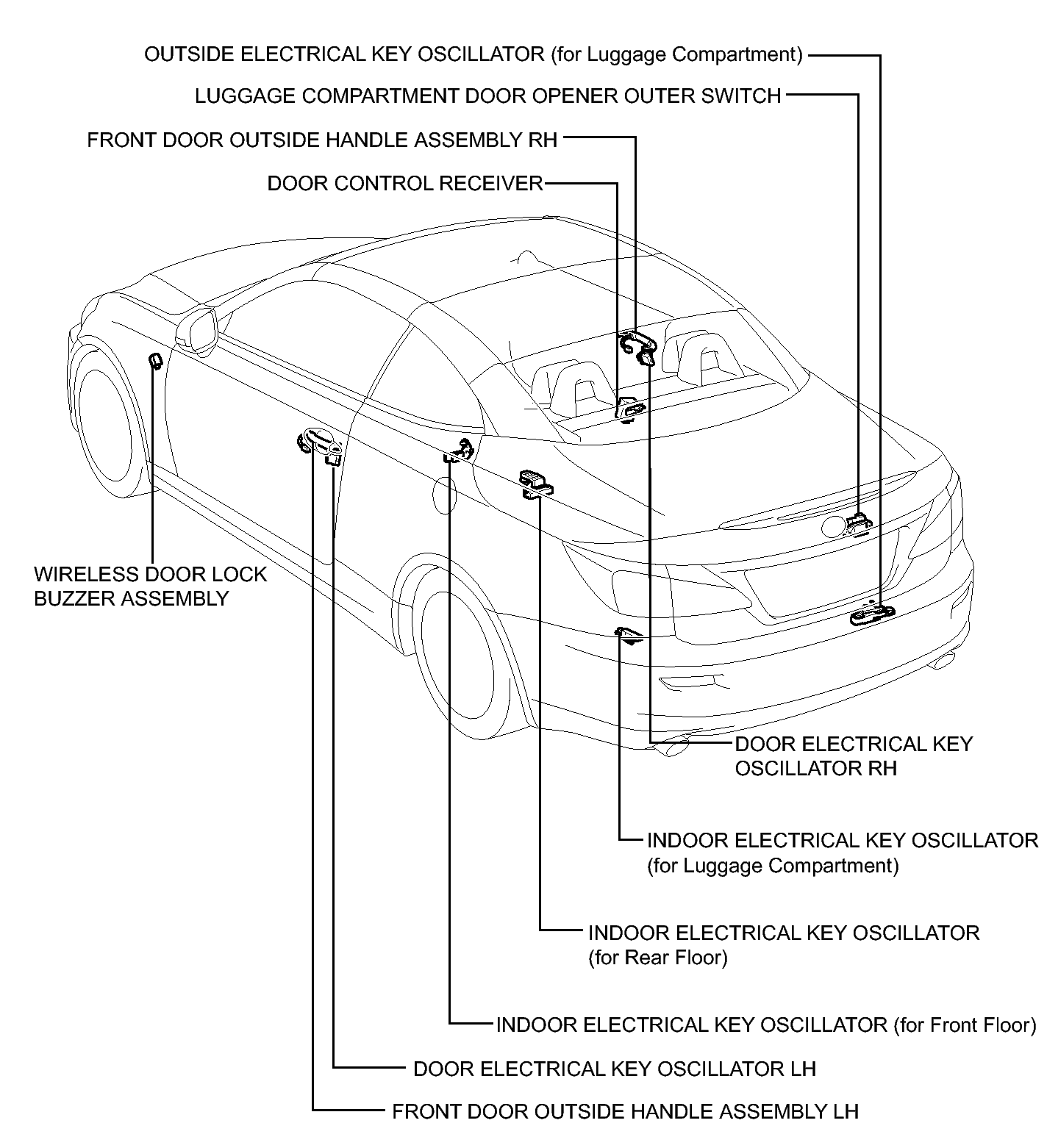

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 4)
GTY355443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

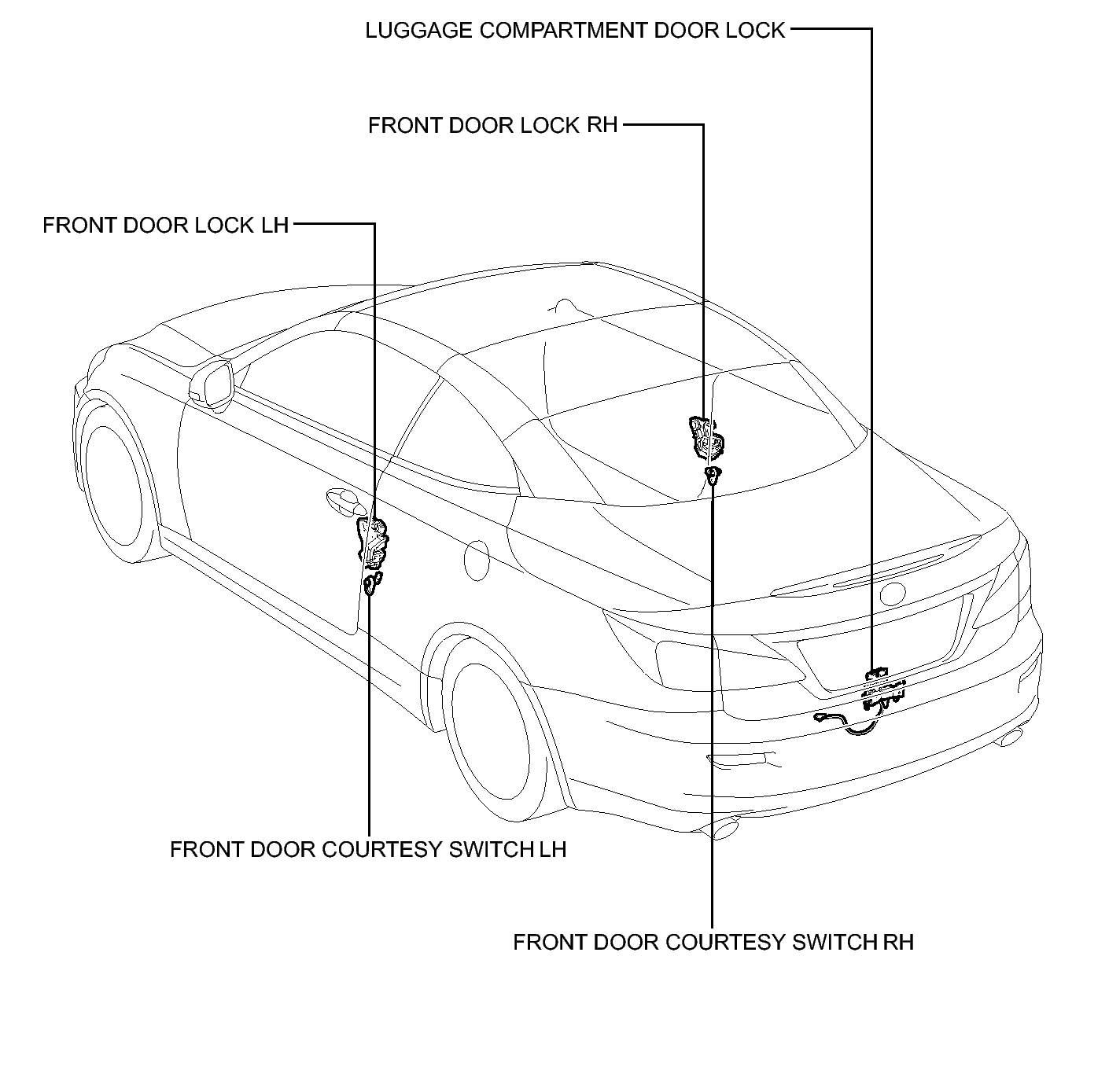

Fig 1: Identifying Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 4)
GTY282710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
