Parts Location: Illustration

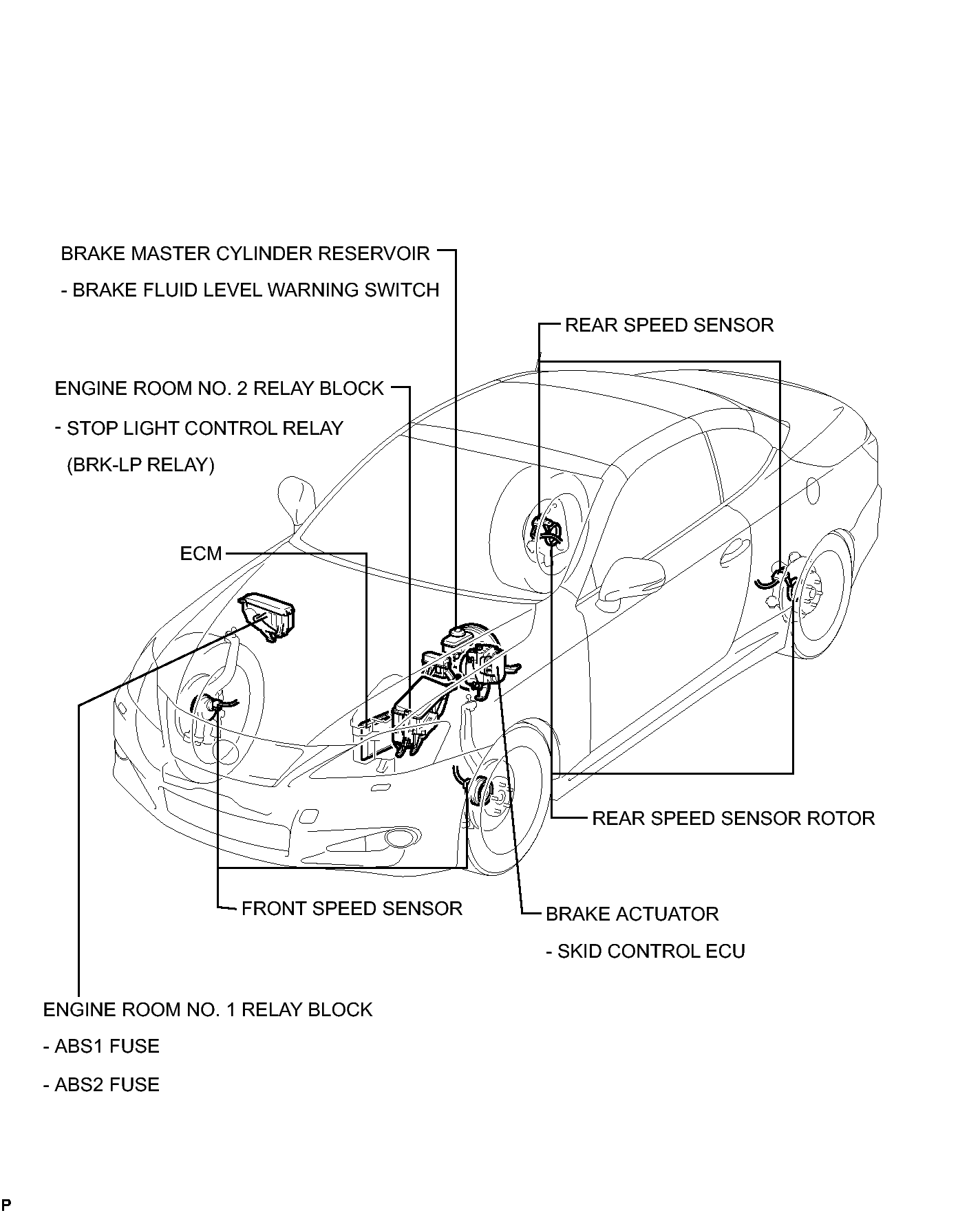

Fig 1: Vehicle Stability Control System Components Location (1 Of 2)
GTY355809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

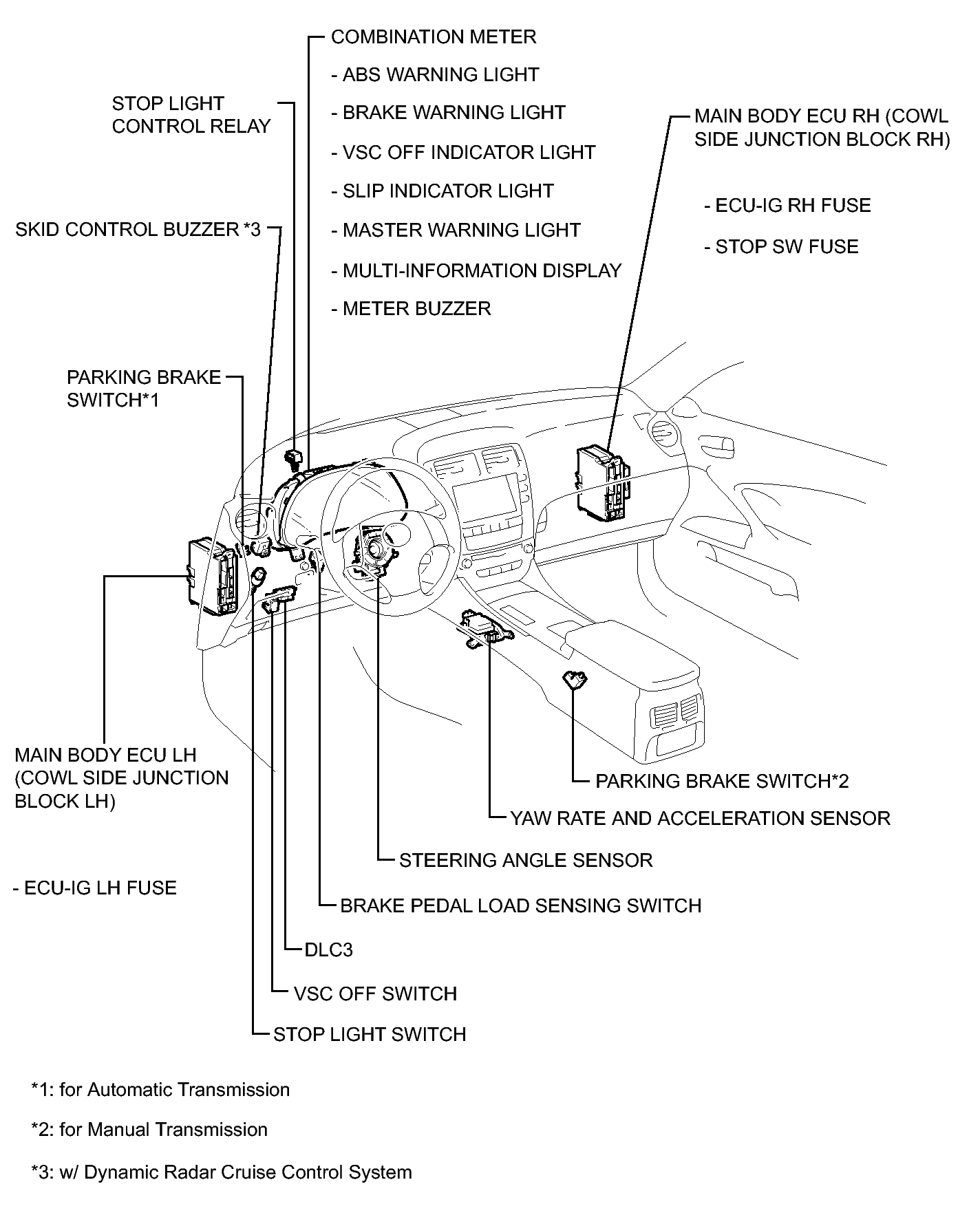

Fig 1: Vehicle Stability Control System Components Location (2 Of 2)
GTY394966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
