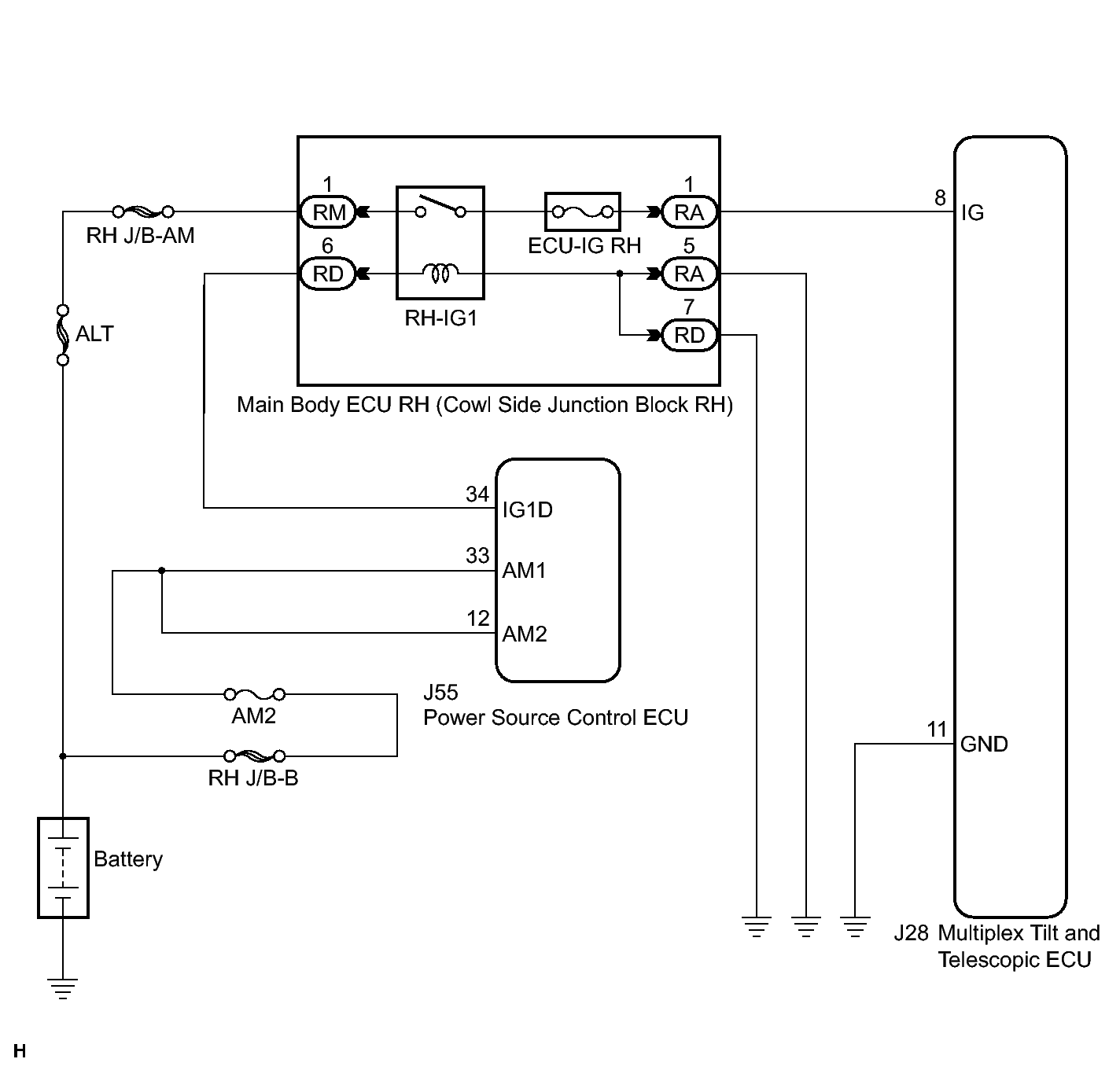

Home >> Lexus >> 2012 >> IS 250C Automatic Trans >> Repair and Diagnosis (Single Page) >> Steering >> Steering Column >> Power Tilt & Telescopic Steering Column System (Diagnostic Codes & Circuit Tests) >> Power Tilt And Power Telescopic Steering Column System >> Circuit Tests >> IG Power Source Circuit >> Wiring Diagram
