Remote Control Mirror (w/o Seat Position Memory): Notes

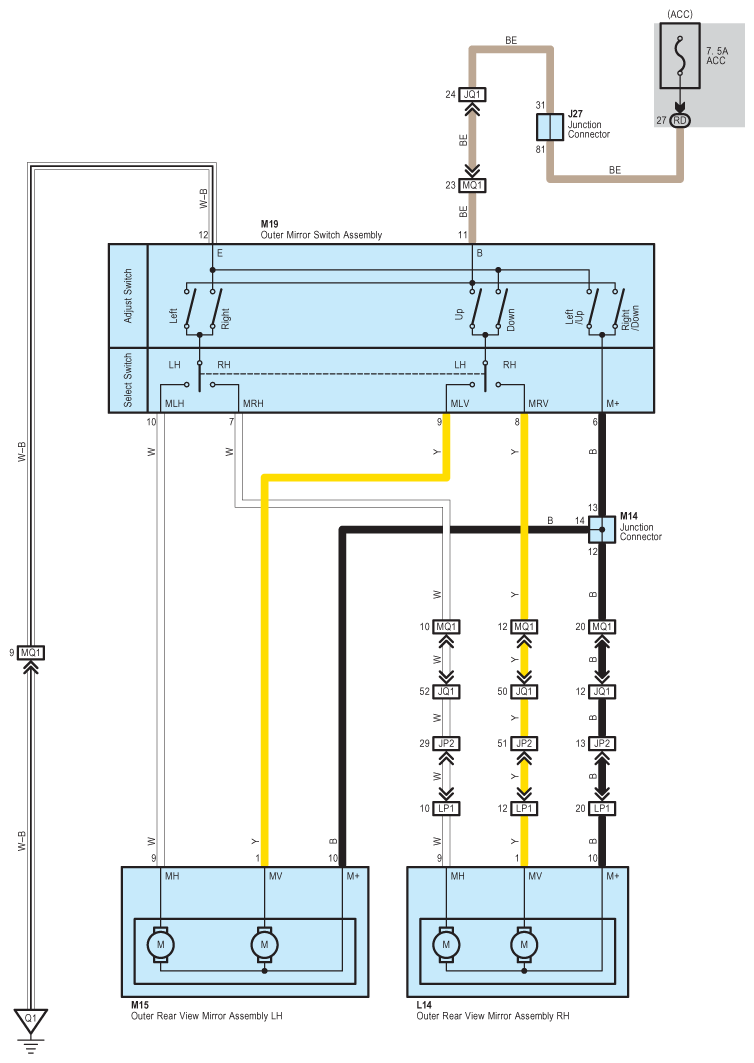

Fig 1: Remote Control Mirror (W/O Seat Position Memory) - Wiring Diagram

G08938885

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
