DVD Image Signal Circuit between Radio Receiver and Multi-display: Procedure

1. Disconnect the radio receiver assembly connector.
2. Disconnect the display and navigation module display connector.
3. Measure the resistance according to the value(s) in the table below.
   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   J65-8 (NTSC) - J52-9 (VV+)	Always	Below 1 Ω
   J65-22 (GND) - J52-20 (VV-)	Always	Below 1 Ω
   J65-8 (NTSC) - Body ground	Always	10 kΩ or higher
   J65-22 (GND) - Body ground	Always	10 kΩ or higher
   J65-7 (SLD) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the radio receiver assembly connector.

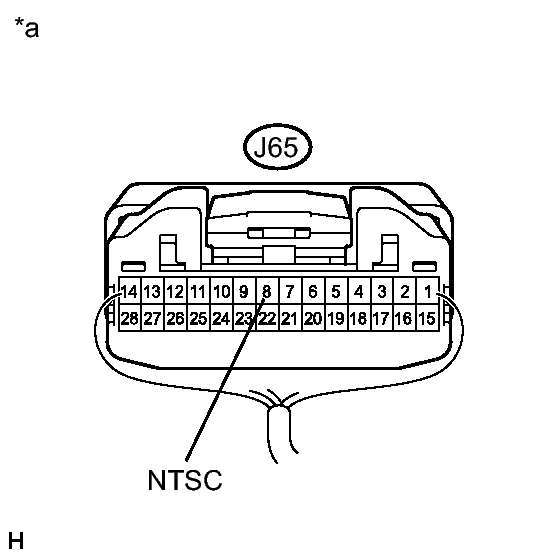

   Fig 1: J65 Connector Terminal Identification

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the waveform according to the table below.

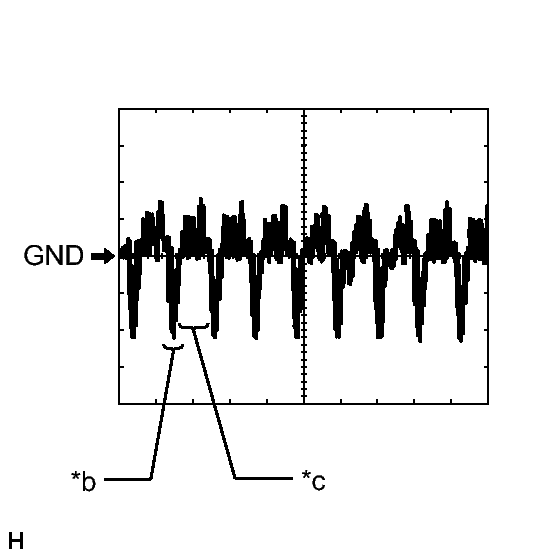

   Fig 2: Identifying Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   OSCILLOSCOPE WAVEFORM



   Item	Content
   Measurement terminal	J65-8 (NTSC) - Body ground
   Measurement setting	200 mV/DIV. 10 μs/DIV.
   Condition	DVD display is on

   NOTE:

   The video waveform changes according to the image output from the radio receiver assembly to the display and navigation module display, but the synchronization signal does not change.

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Radio Receiver Assembly)
   *b	Synchronization Signal
   *c	Video Waveform

NG → See step   3

OK → See step   4
