Navigation ECU Communication Stop Mode: Wiring Diagram

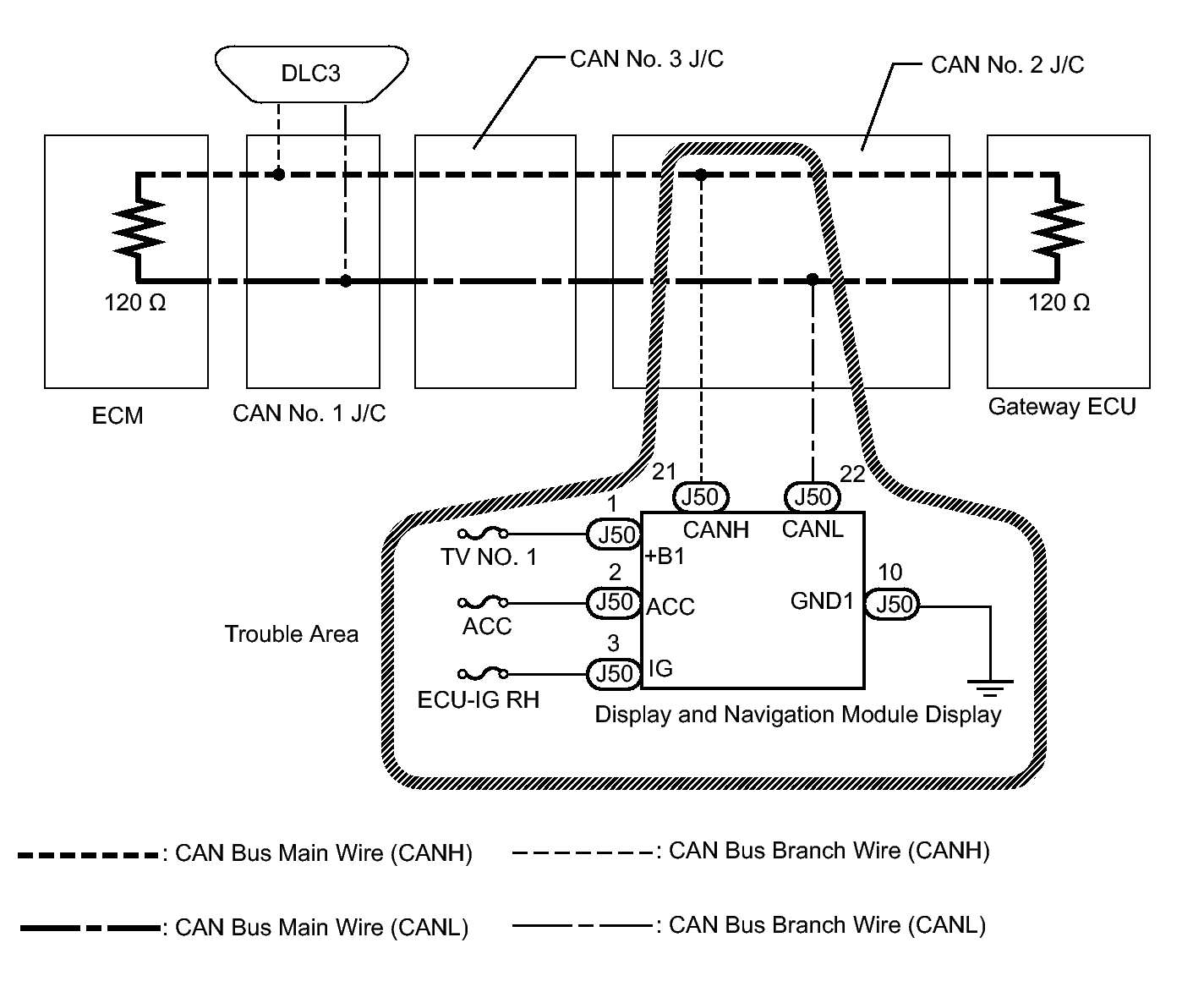

Fig 1: Navigation ECU Communication Wiring Diagram

GTY394065

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
