System Diagram

FUEL FLOW DIAGRAM

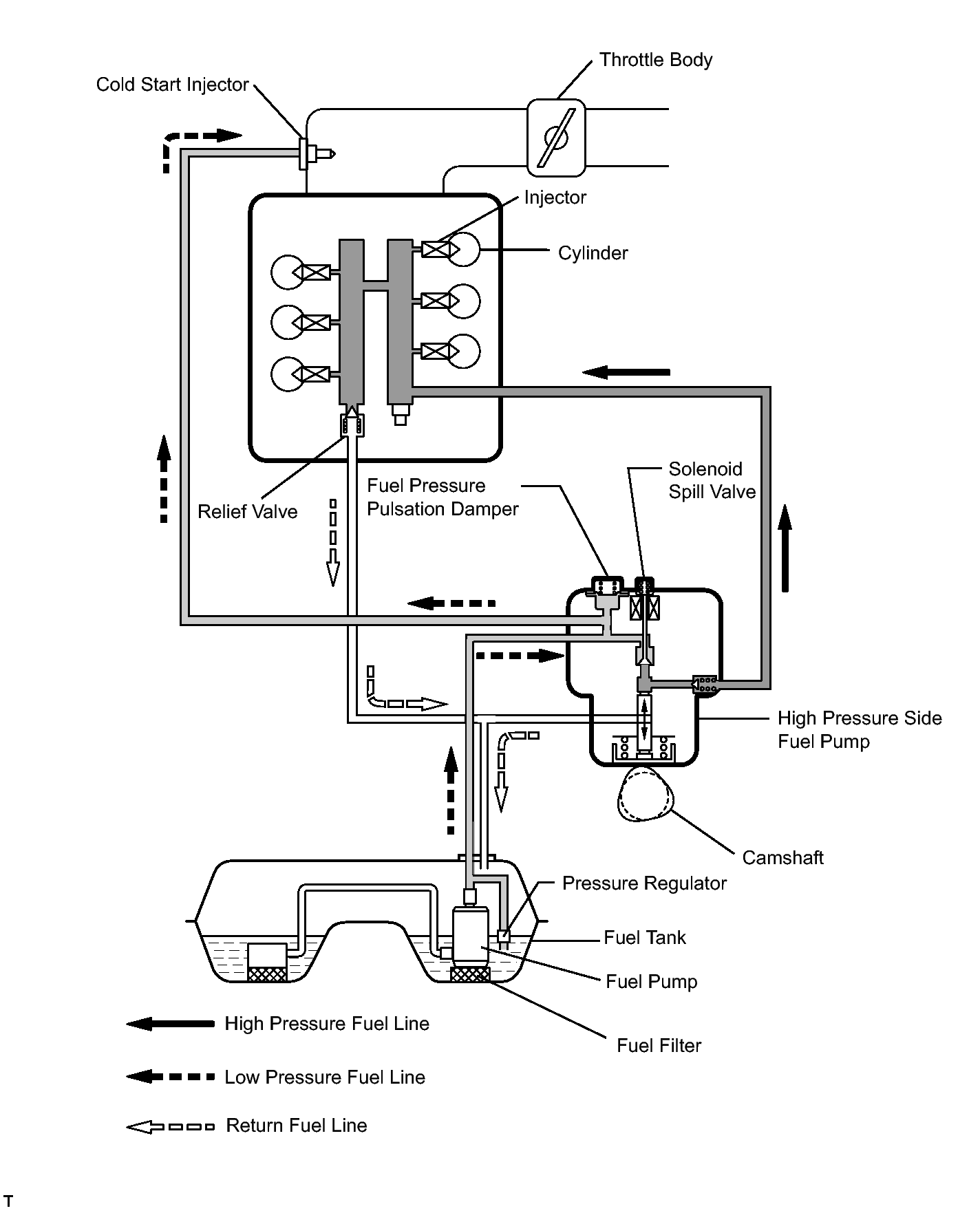

Fig 1: Identifying Fuel Flow Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ELECTRICAL CONTROL DIAGRAM

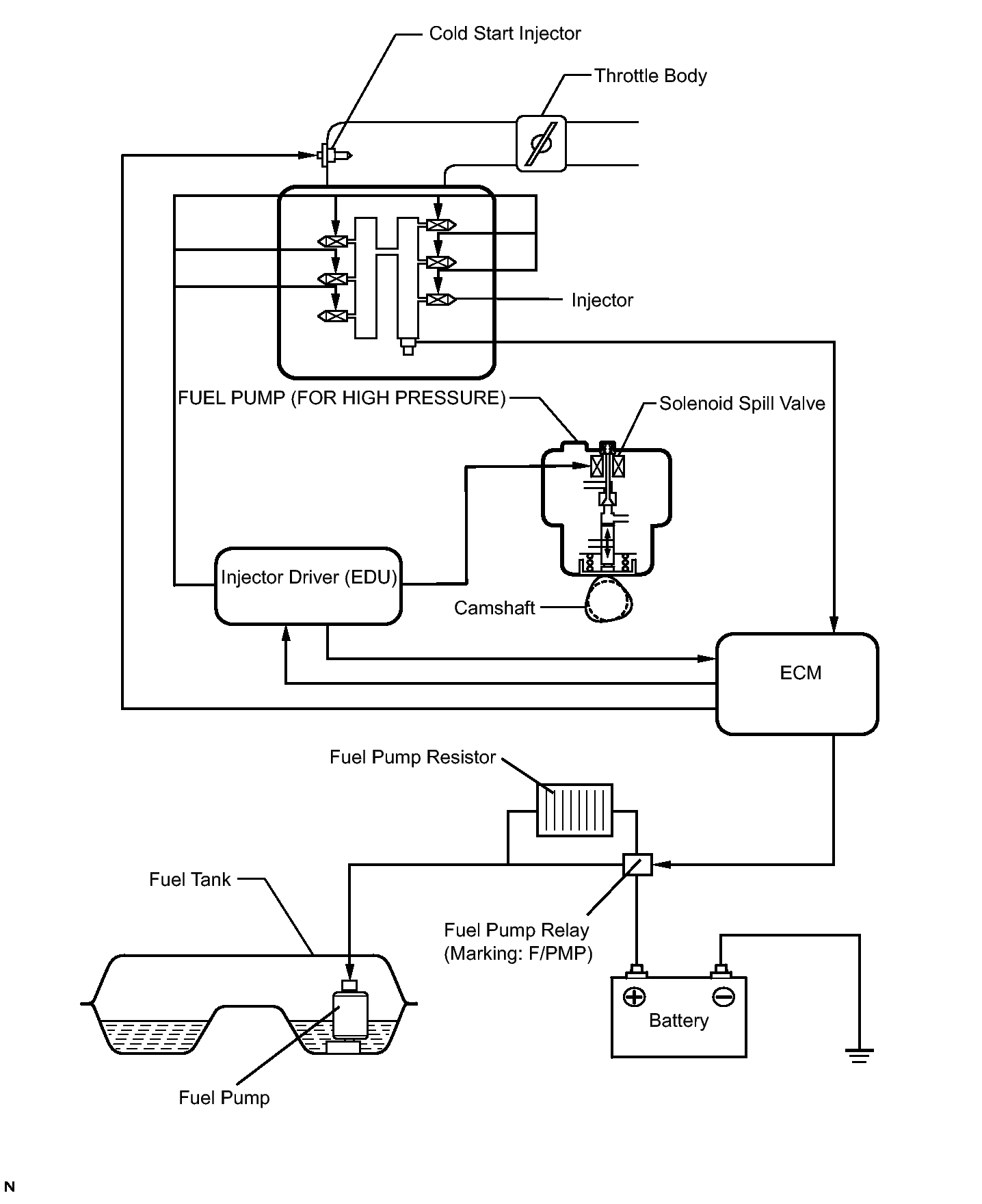

Fig 2: Fuel System Electrical Control Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HIGH PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

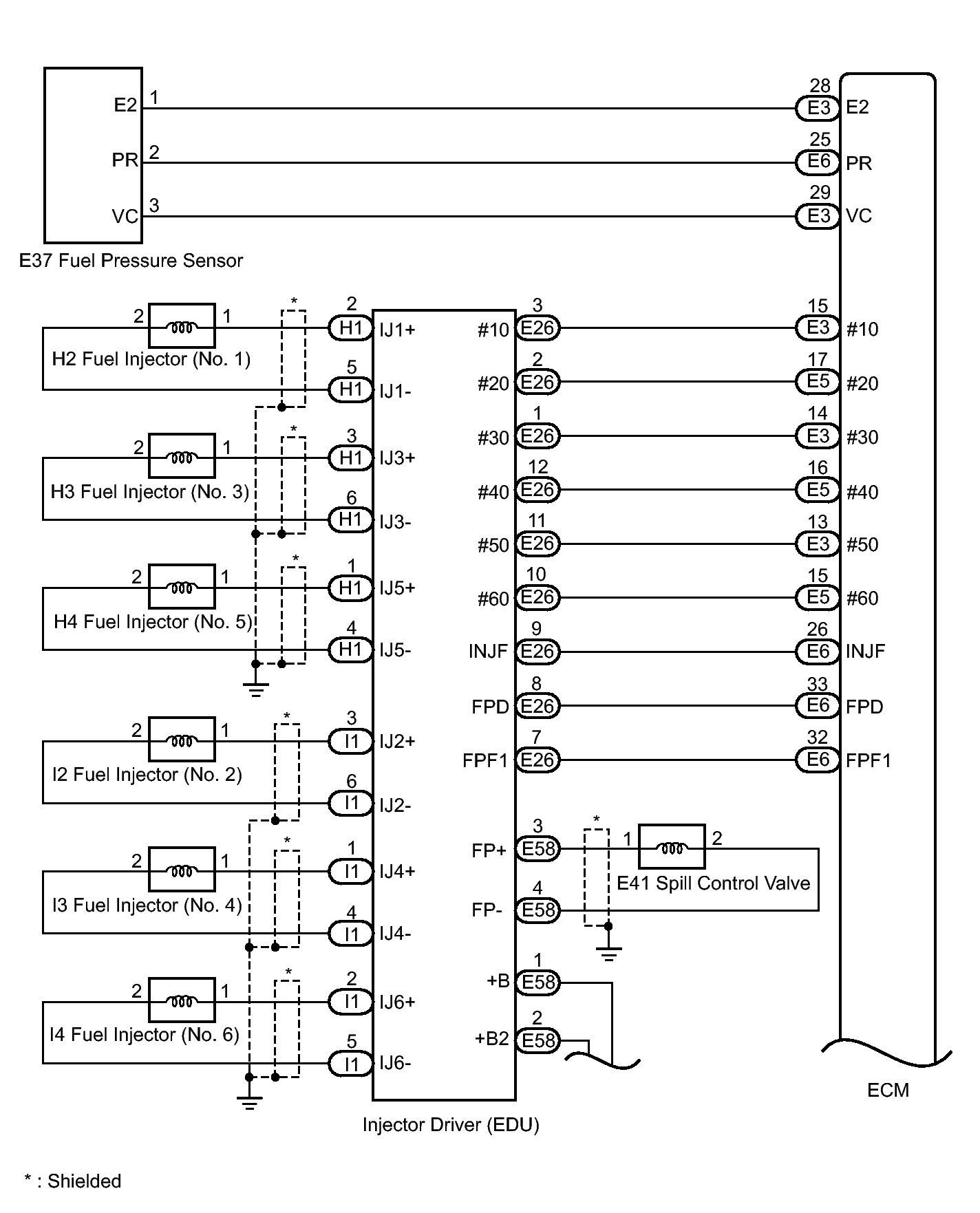

Fig 3: Identifying High Pressure Side Fuel System Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

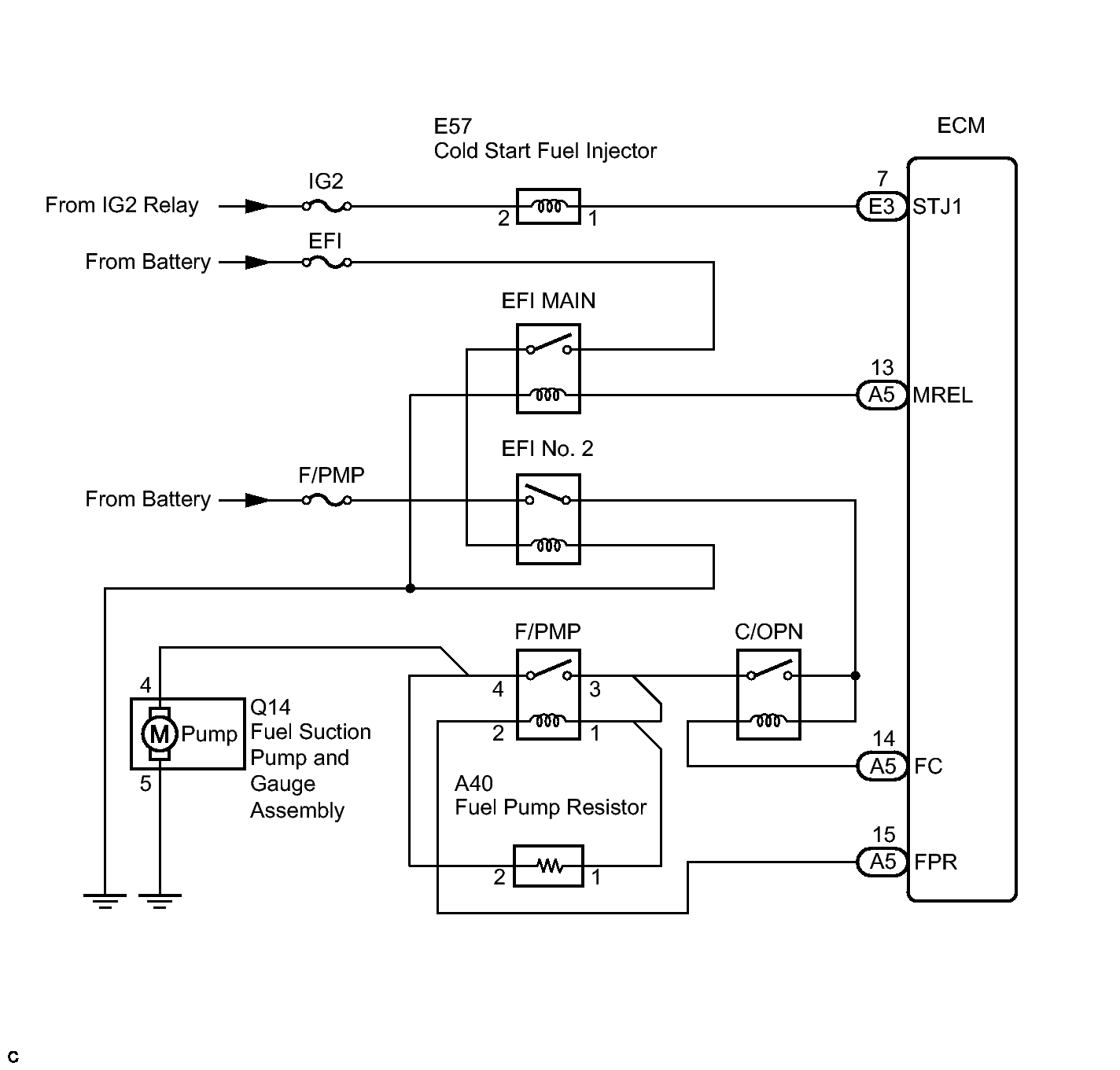

Fig 4: High Pressure Side Fuel System Wiring Diagram From Battery
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

Fig 5: Low Pressure Side Fuel System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COLD START INJECTOR CIRCUIT DESCRIPTION
1. The cold start injector is attached to the intake air surge tank. The cold start injector is designed to improve the ability of the engine to perform a cold start. It operates when the engine coolant temperature is -12°C (10°F) or less, the engine speed is 400 rpm or less, and the starter signal is on.
