Fuel Relief Valve: Components: Illustration

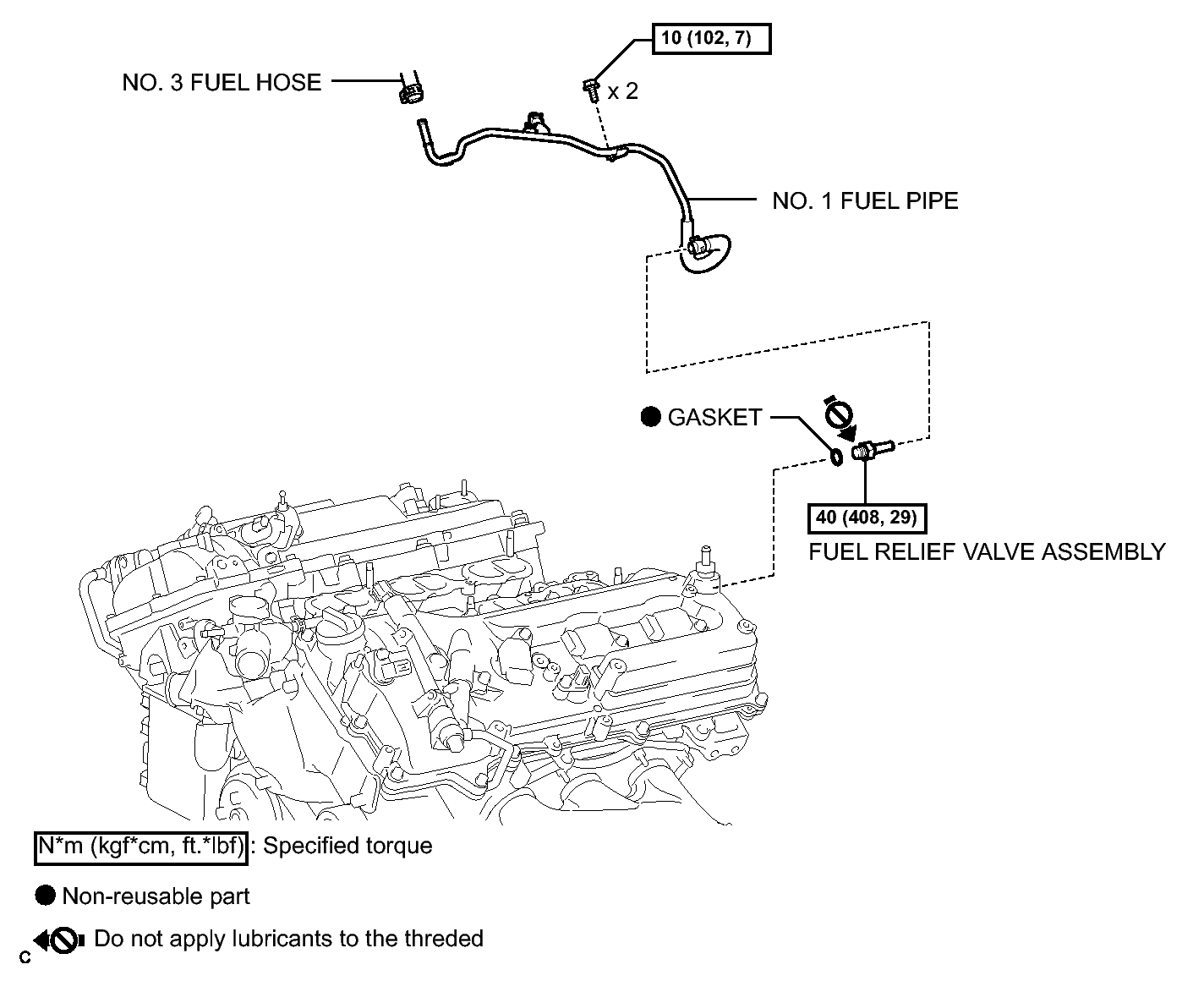

Fig 1: Identifying Fuel Relief Valve Replacement Components

GTY359296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
