Oil Pump: Components: Illustration

WARNING: This page is about a different car, the 2012 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

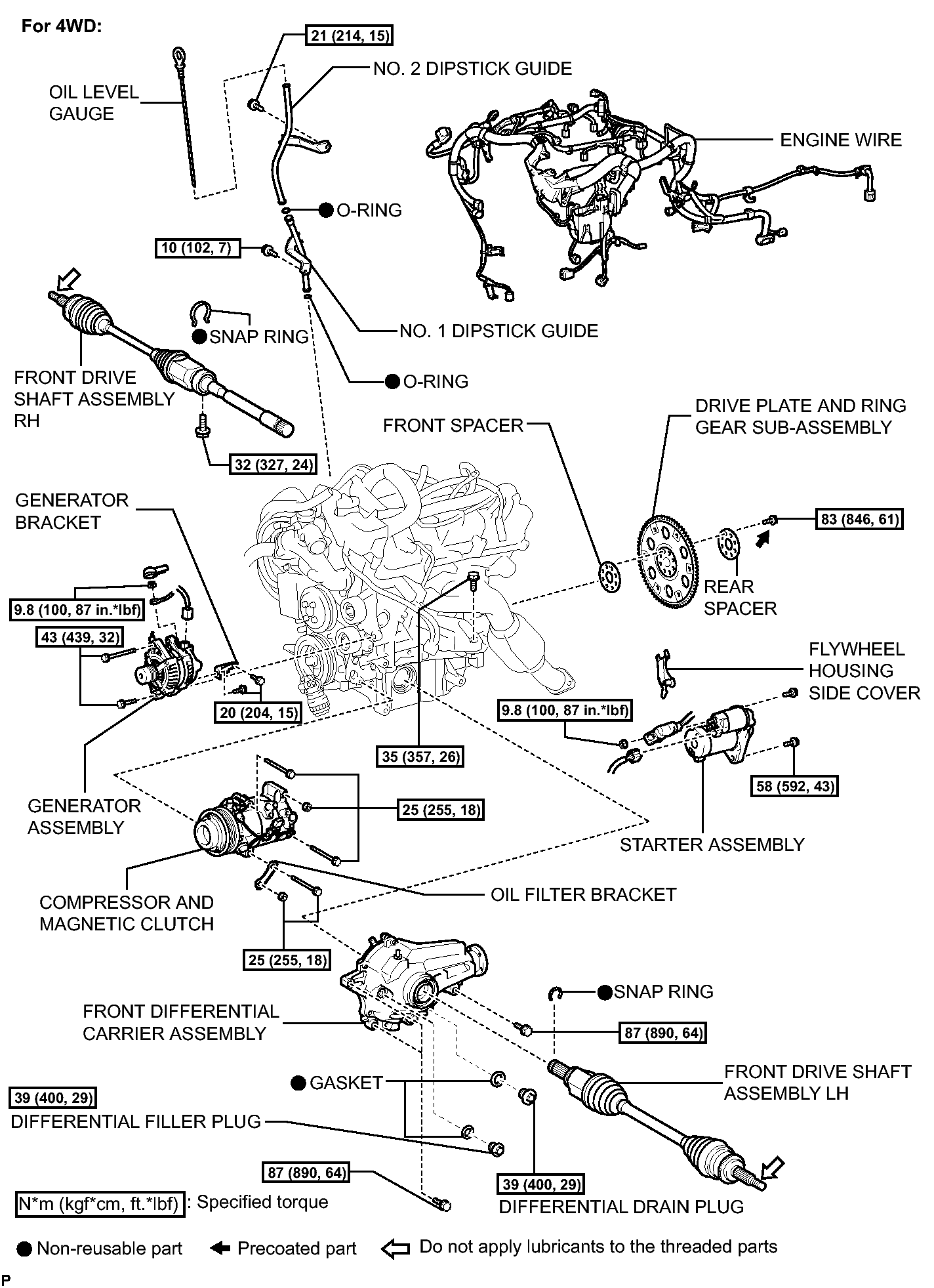

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

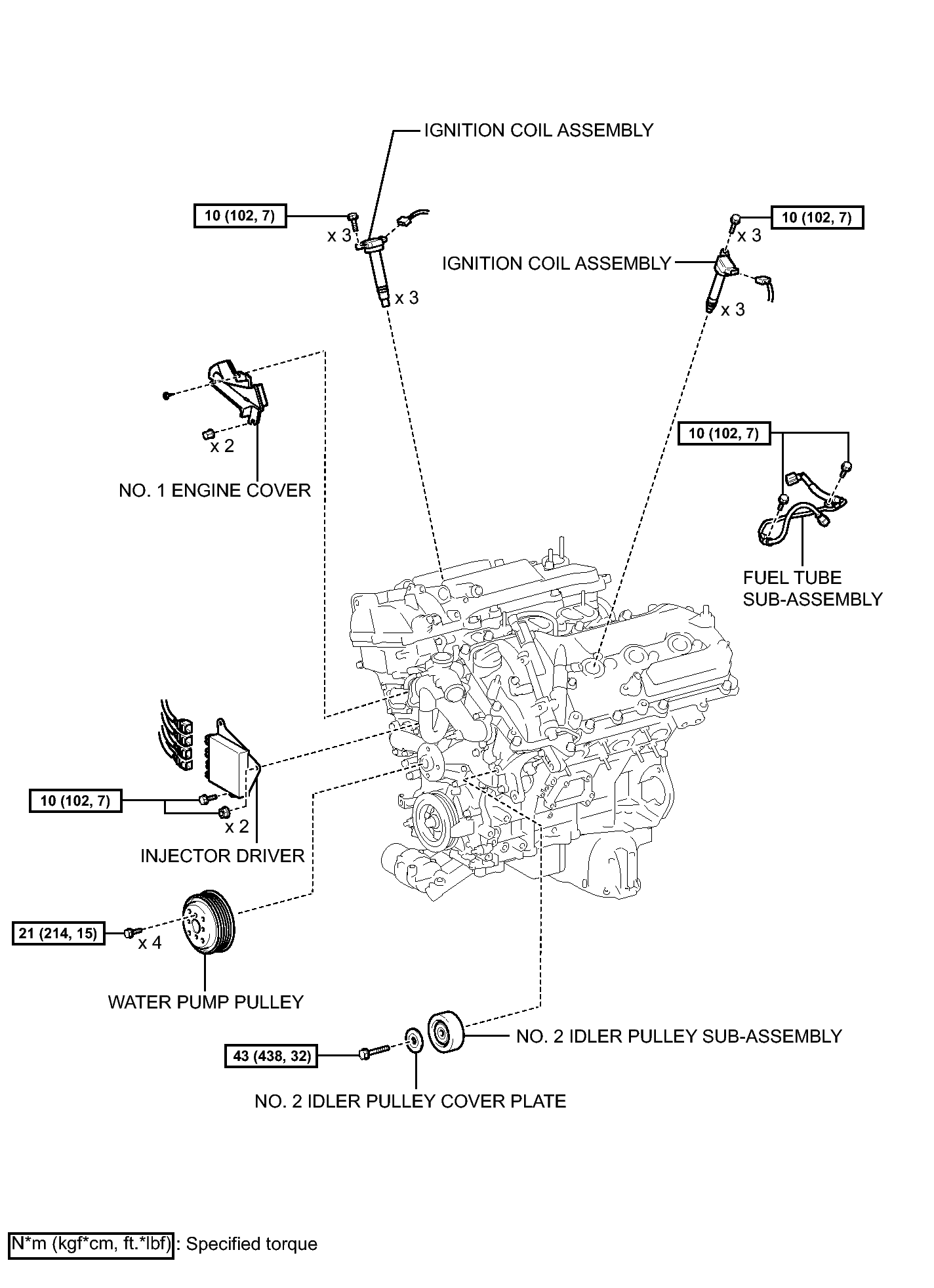

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

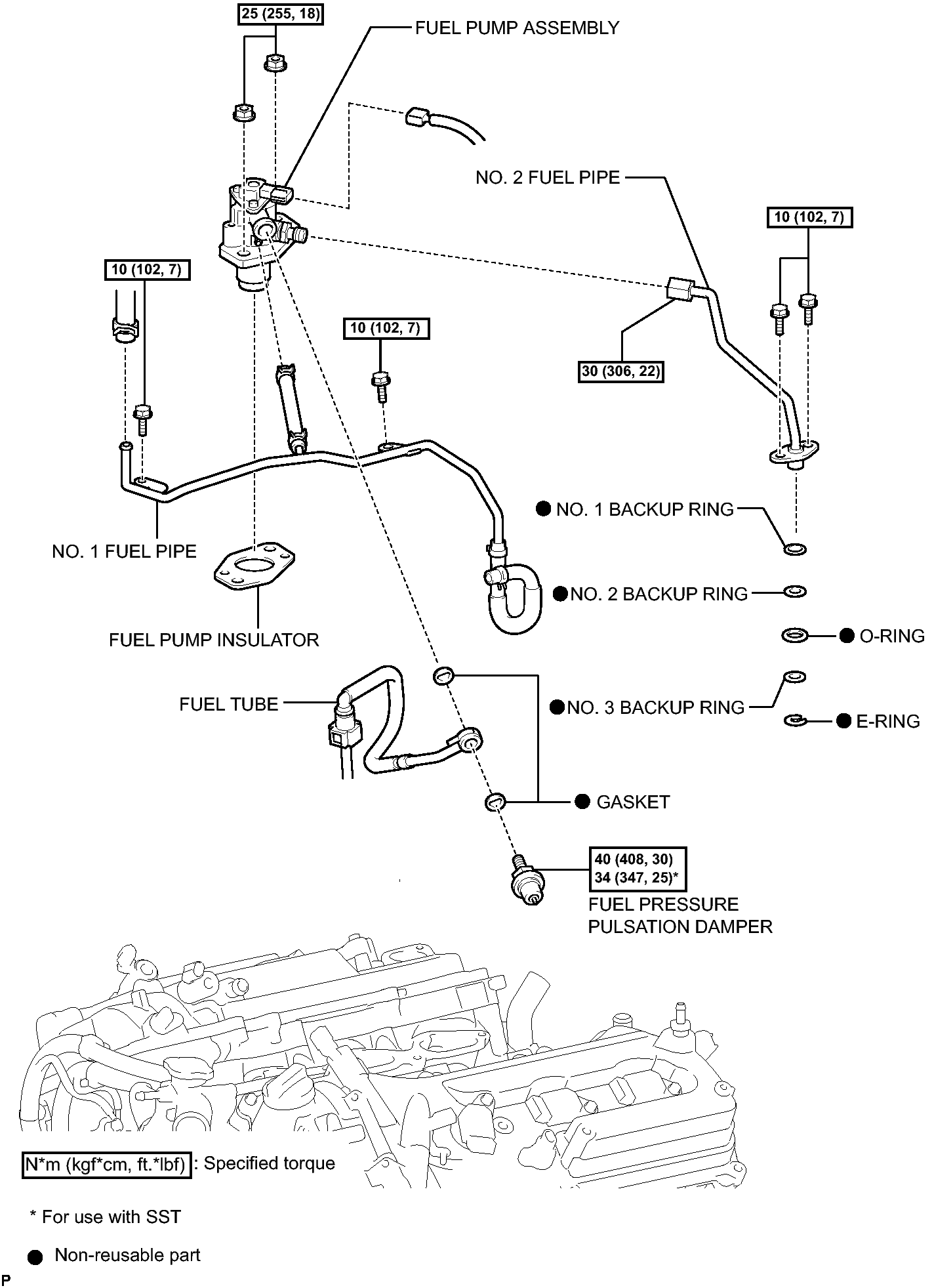

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

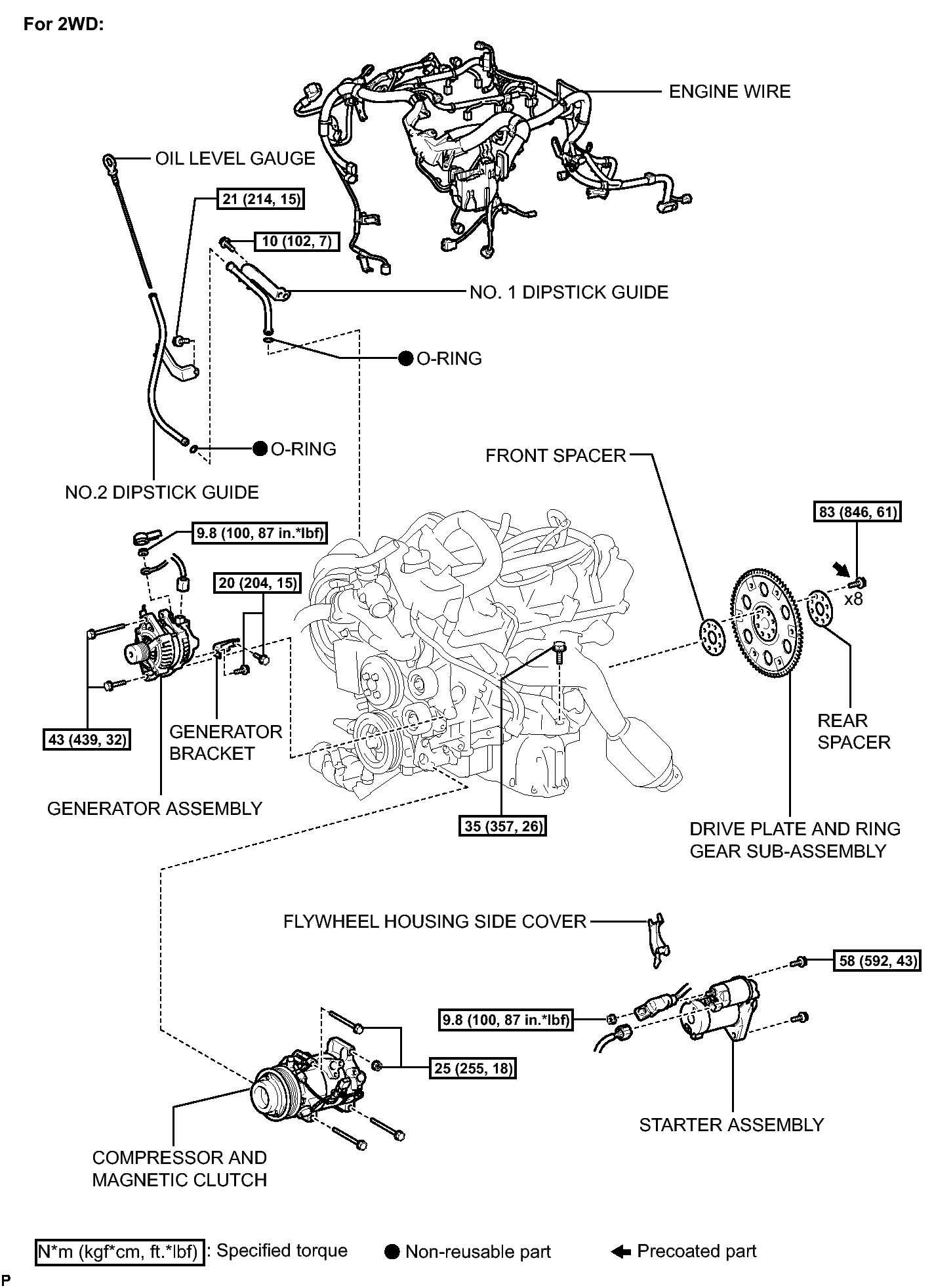

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

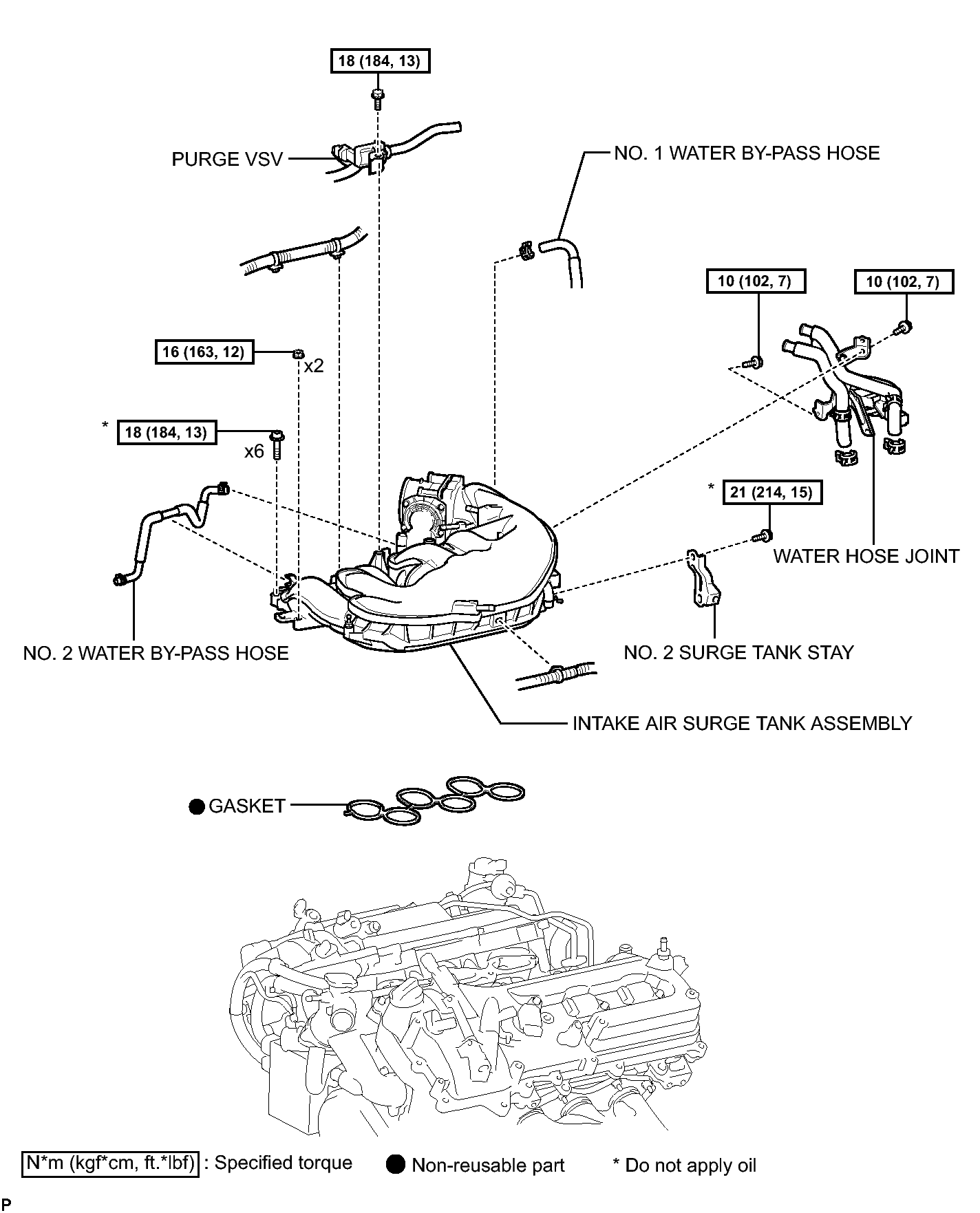

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (5 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (8 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (9 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (10 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (11 Of 17)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (12 Of 17)

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (13 Of 17)

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (14 Of 17)

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (15 Of 17)

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (16 Of 17)

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (17 Of 17)
