DTC P0230: Fuel Pump Primary Circuit: Wiring Diagram

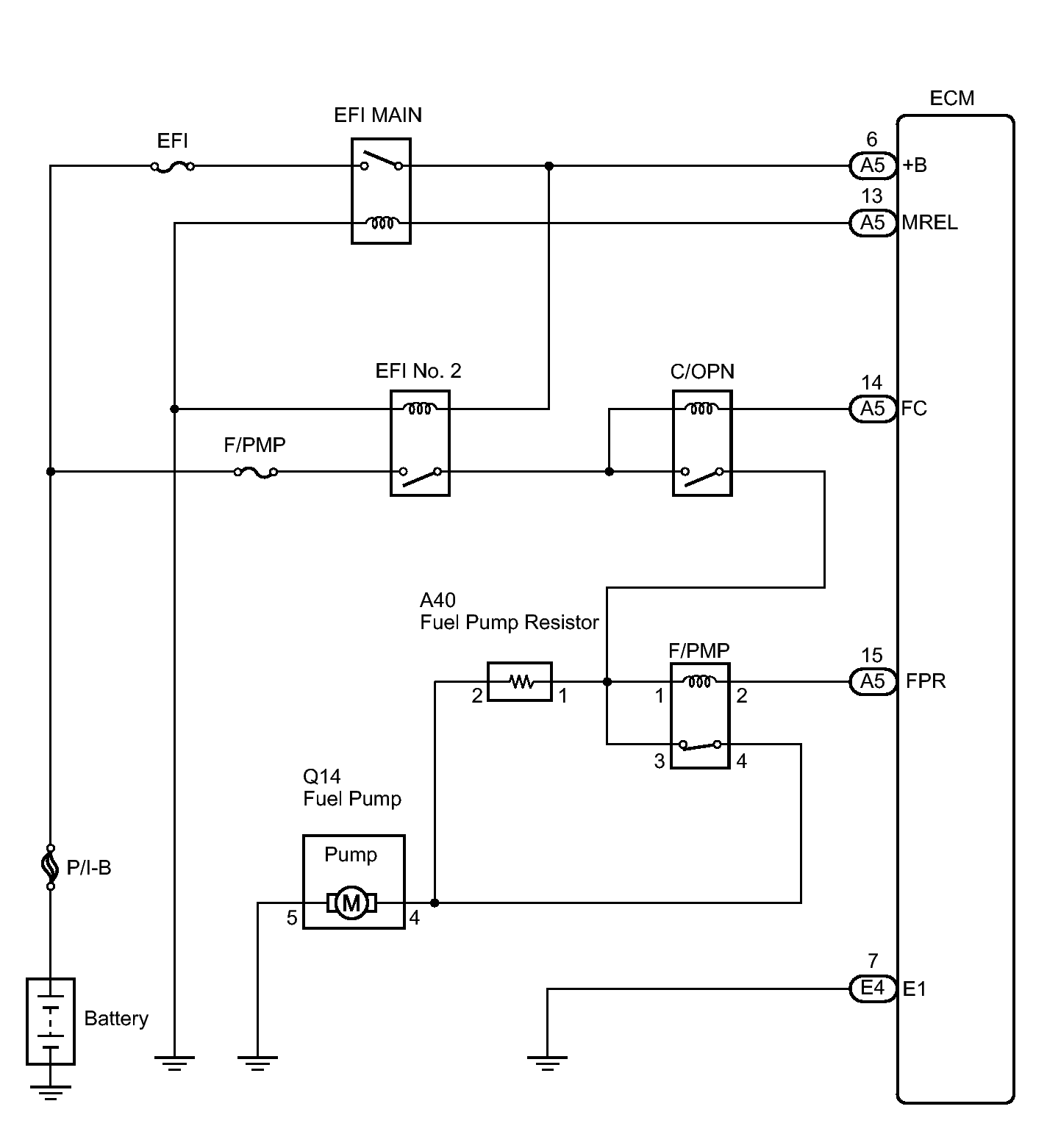

Fig 1: Identifying Engine Control Circuit Wiring Diagram

GTY348183

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
