DTC P0230: Fuel Pump Primary Circuit: Description

When the engine is cranked, a signal is sent from the ignition control ECU's STSW terminal to the ECM's STSW terminal. Then voltage travels from the ECM's STAR terminal through the park/neutral position switch to the STARTER relay coil. The STAR terminal also sends a signal to the STA terminal. When the STA signal and NE signal are input to the ECM, the ECM interior's Tr1 turns on, which causes power to be supplied to the C/OPN relay coil (C/OPN on). As a result, the F/PMP relay actuates, which causes the fuel pump to operate. If the engine is operating and NE signals are being output, the ECM interior's Tr1 is on (C/OPN on), and the fuel pump will continue operating. The fuel pump's has a high and low speed setting. When the engine is starting or operating with a heavy load, the ECM interior's Tr2 turns off so that the F/PMP relay will close and the fuel pump will operates at the high speed setting. When the engine is idling or operating with a light load, the Tr2 turns on, operating the F/PMP relay and causing current to flows through the fuel pump resistor to the fuel pump. This operates the fuel pump at the low speed setting.

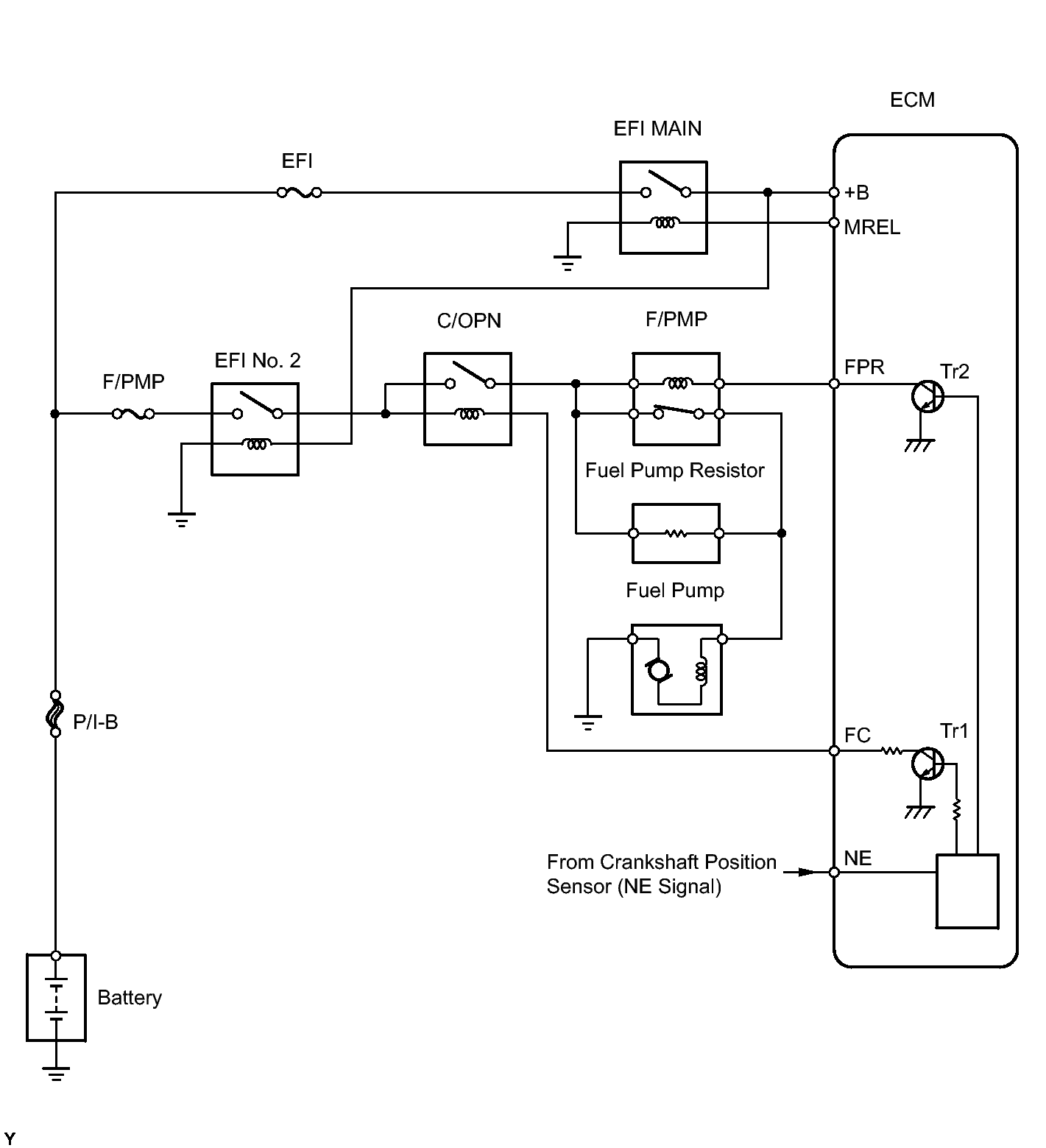

Fig 1: View Of Fuel Pump And Fuel Pump Resistor Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
