Oil Pump: Components: Illustration

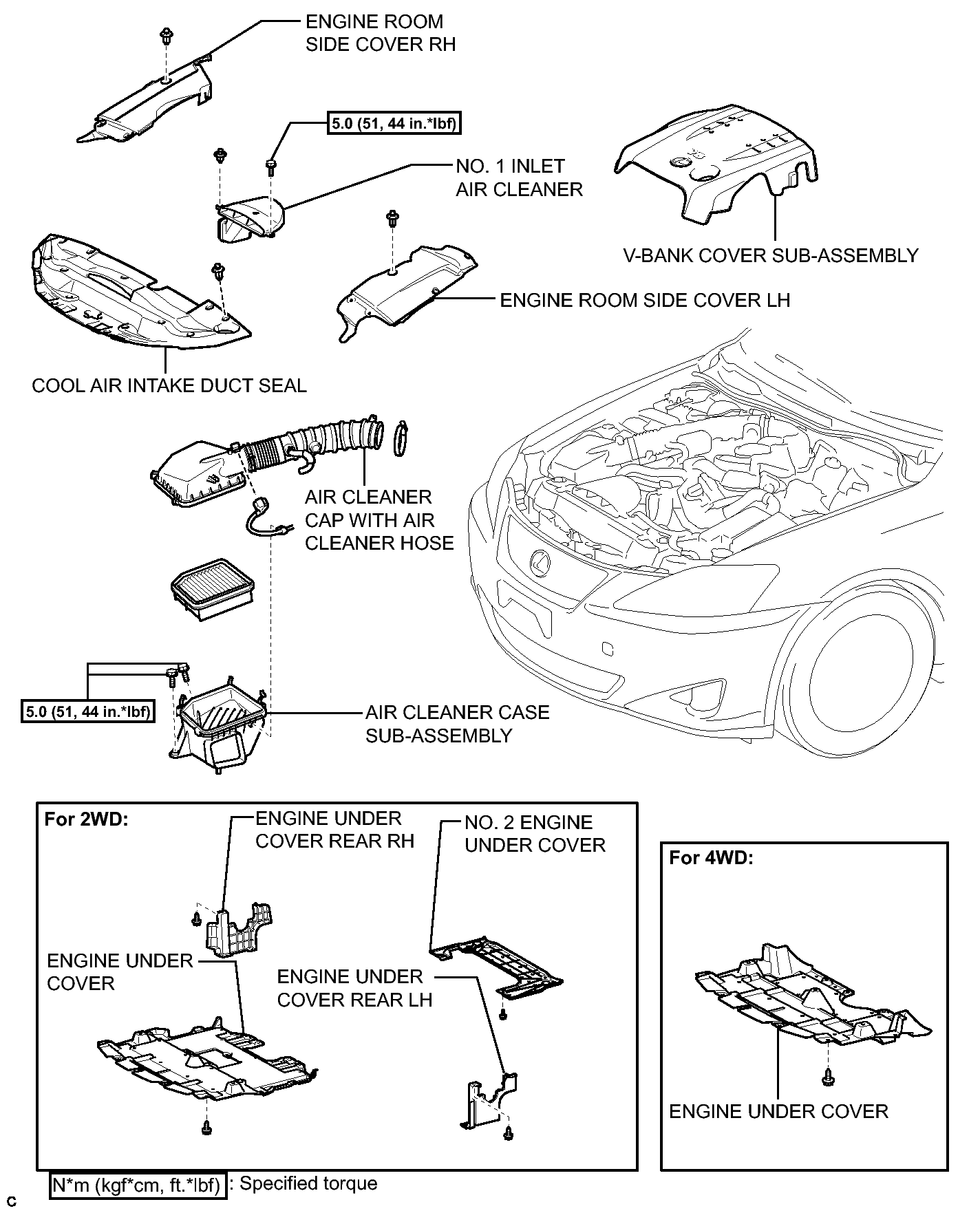

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (1 Of 17)
GTY355971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

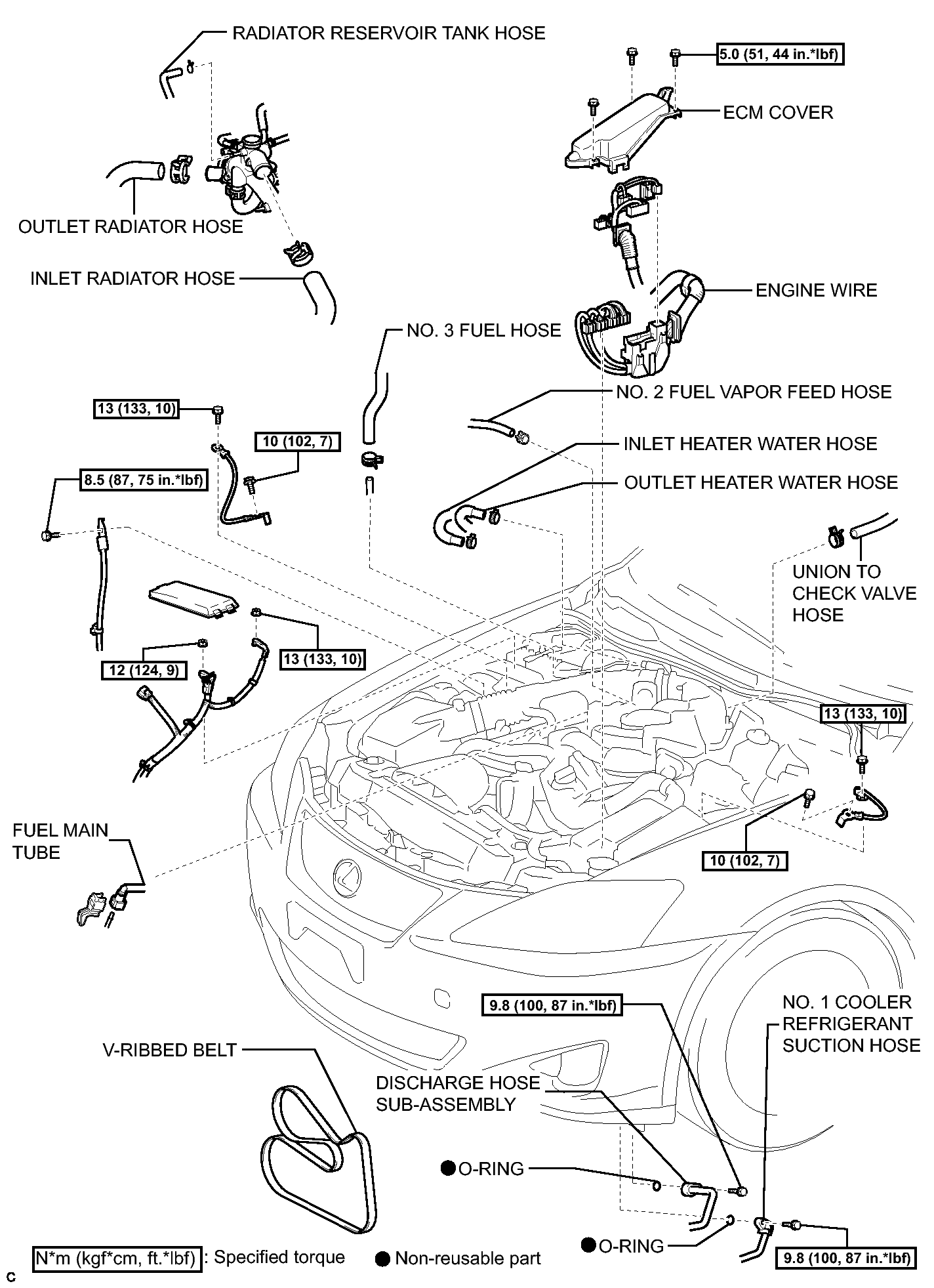

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 17)
GTY146377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

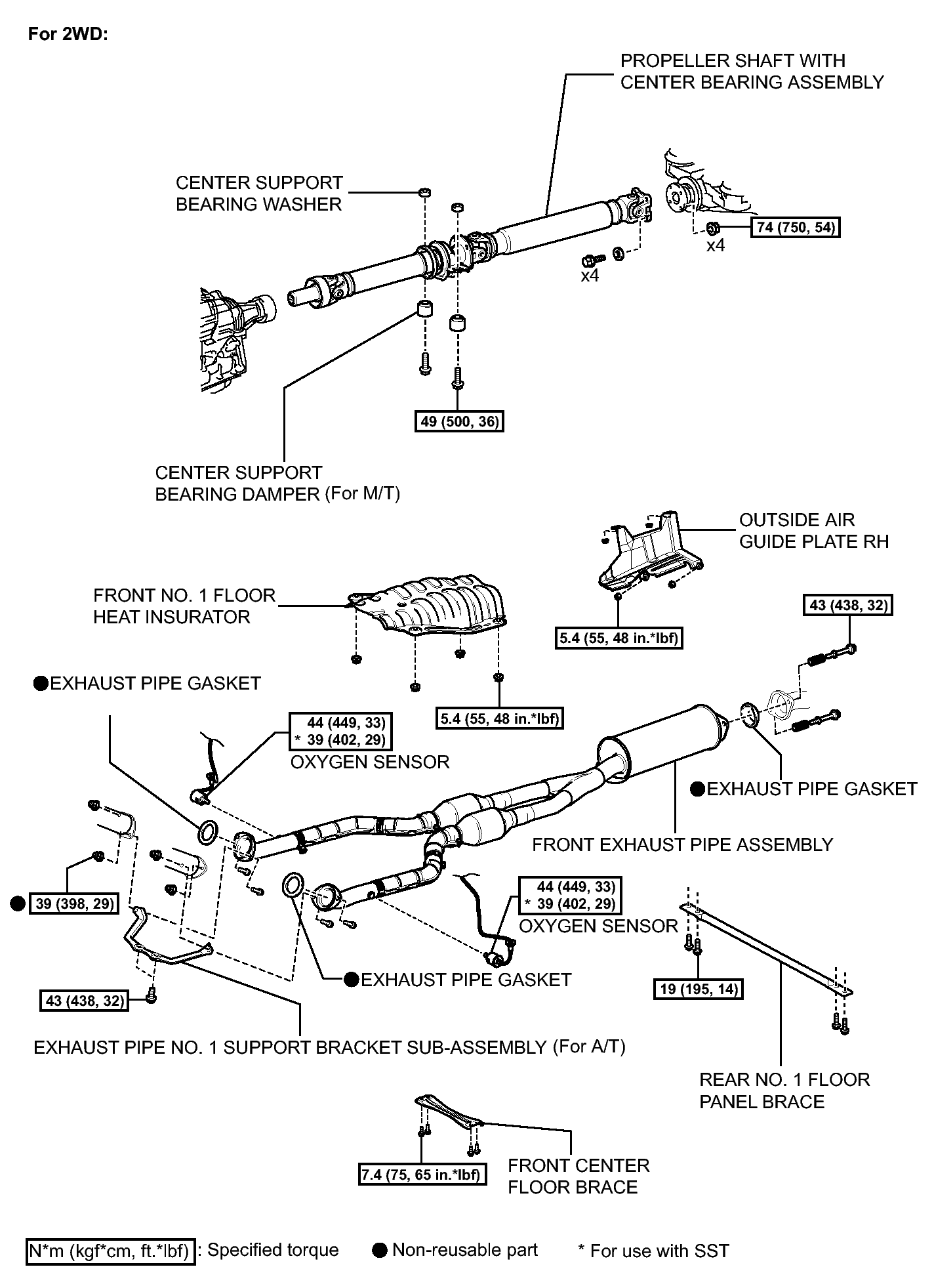

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 17)
GTY349711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 17)
GTY351781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

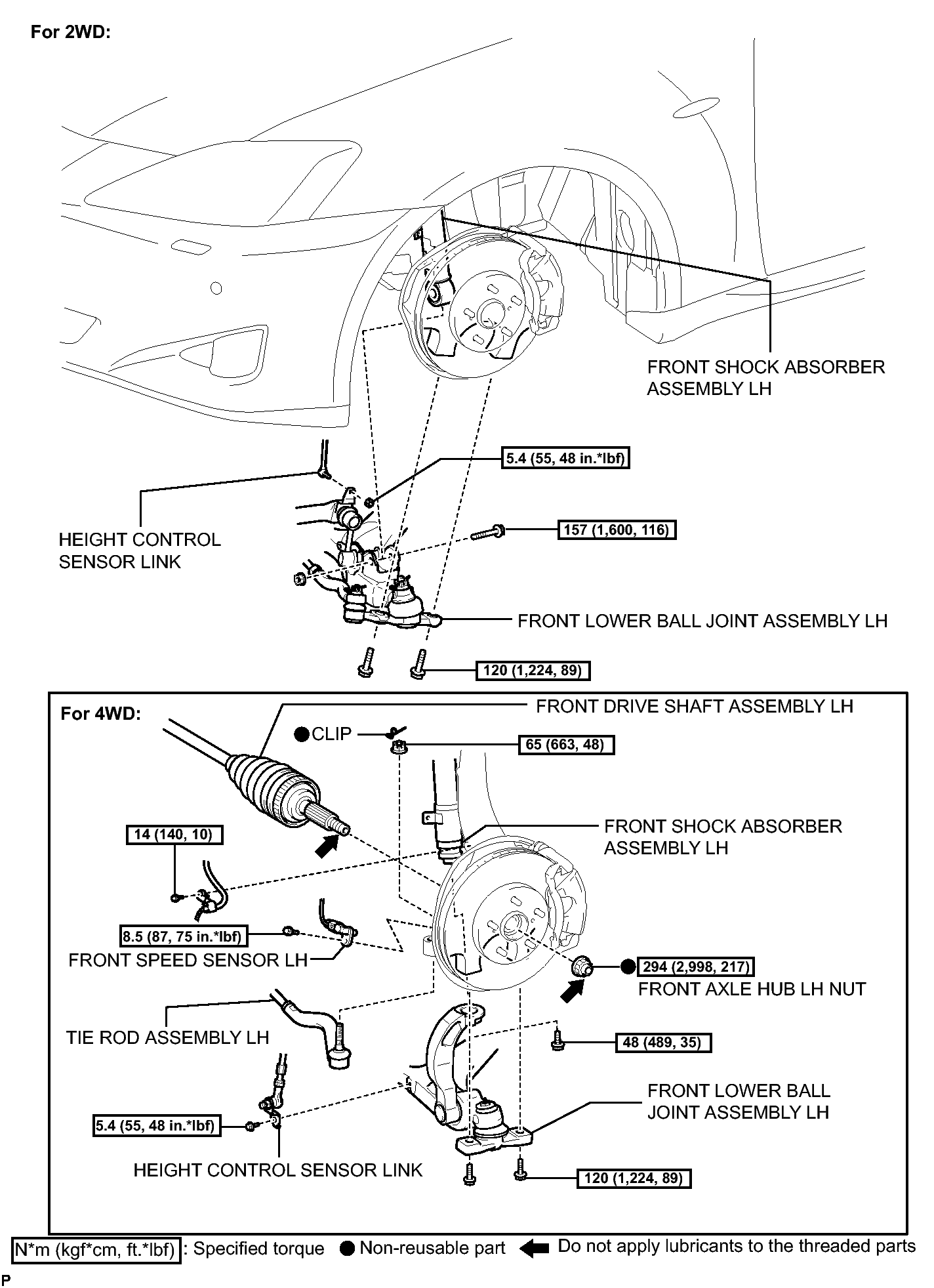

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 17)
GTY352709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

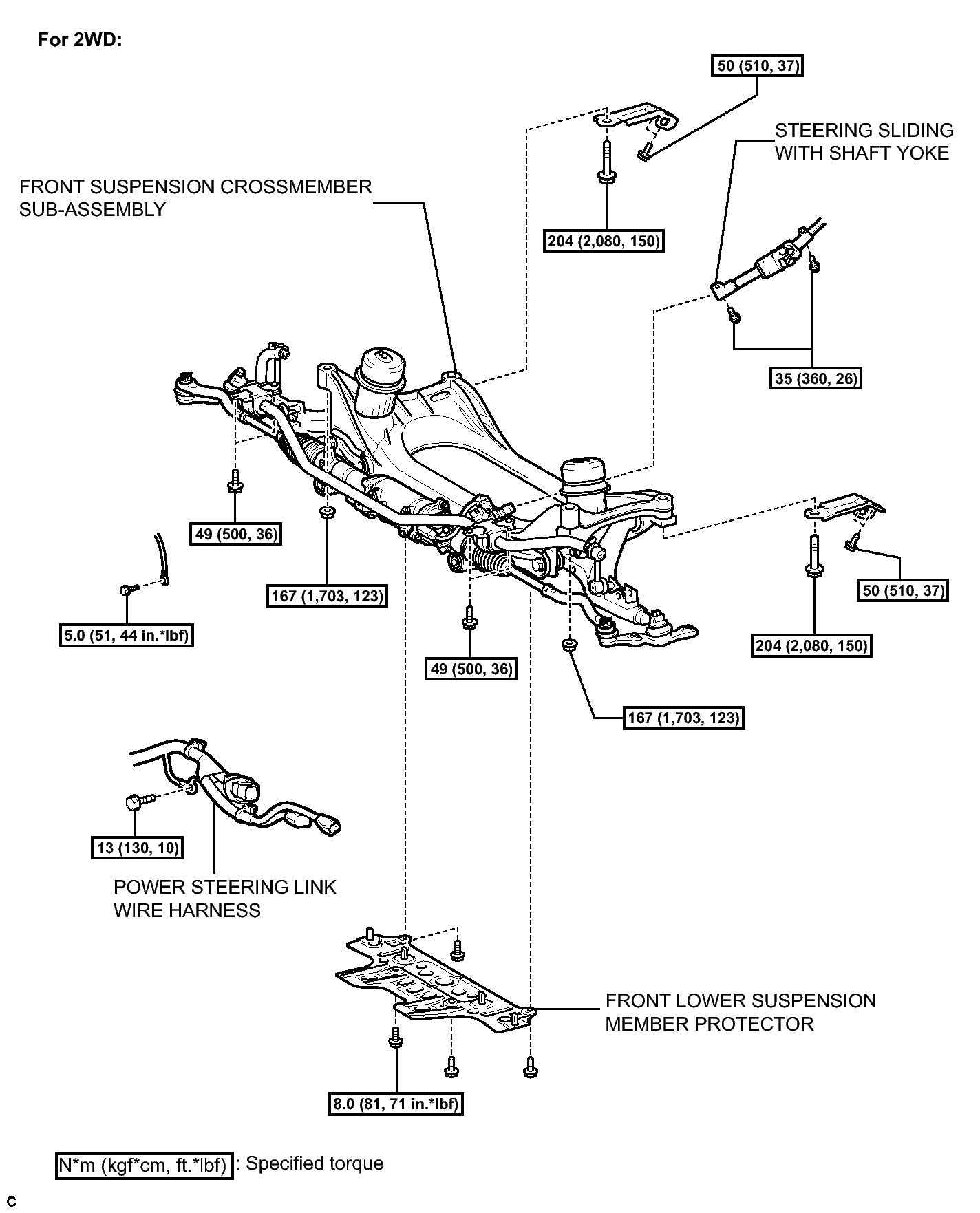

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (6 Of 17)
GTY146128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (7 Of 17)
GTY146130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

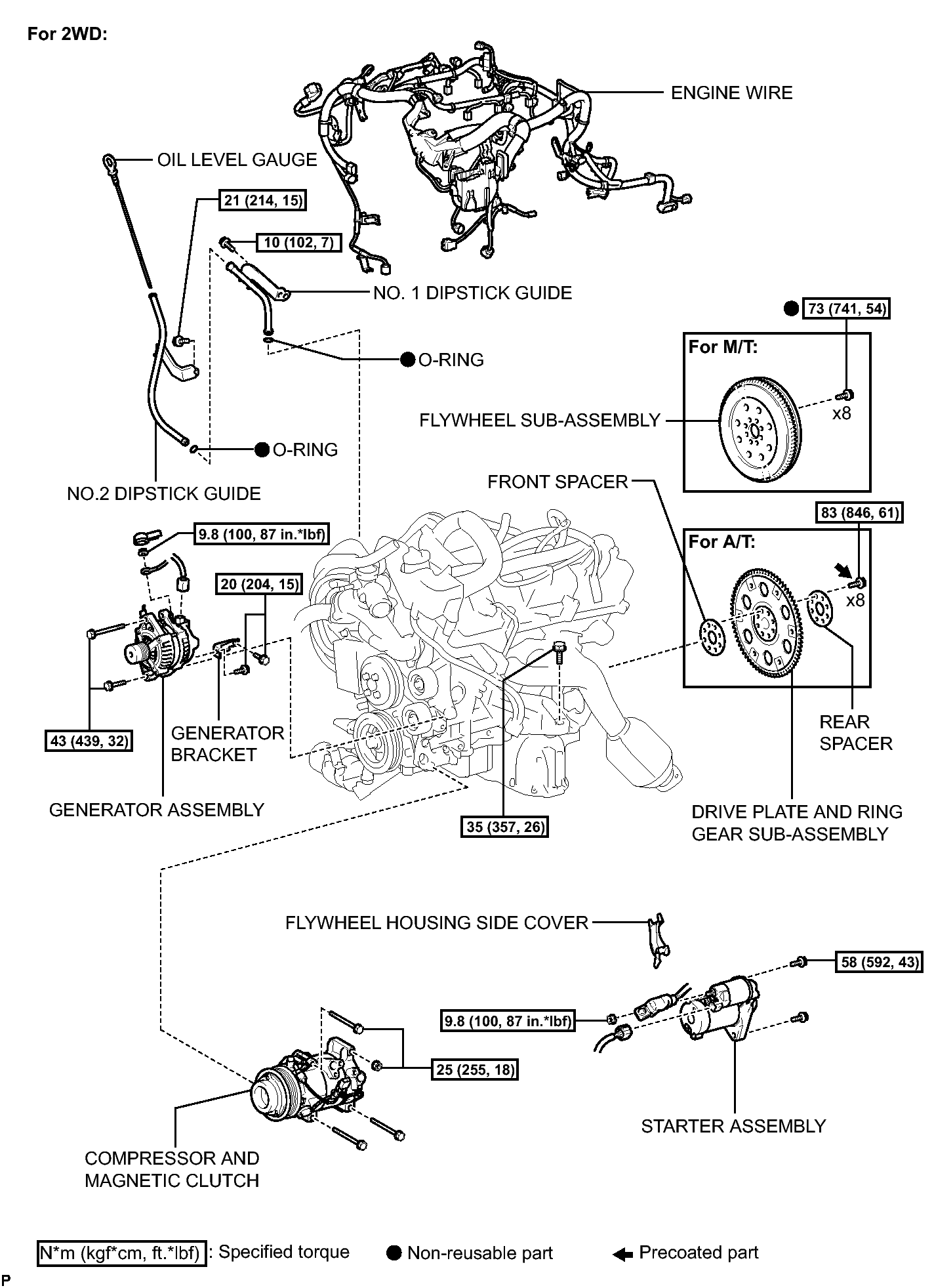

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (8 Of 17)
GTY286528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

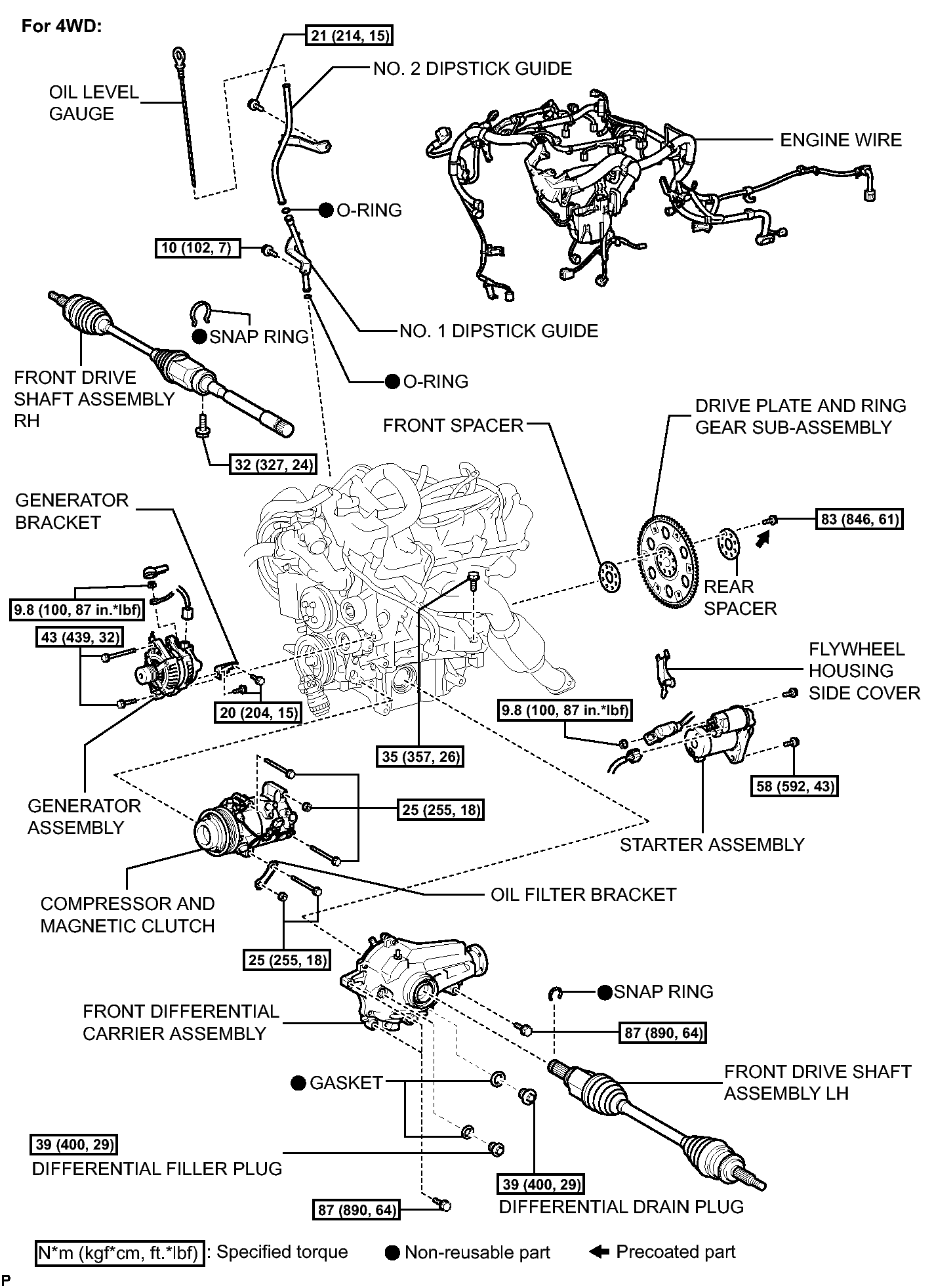

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (9 Of 17)
GTY266013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

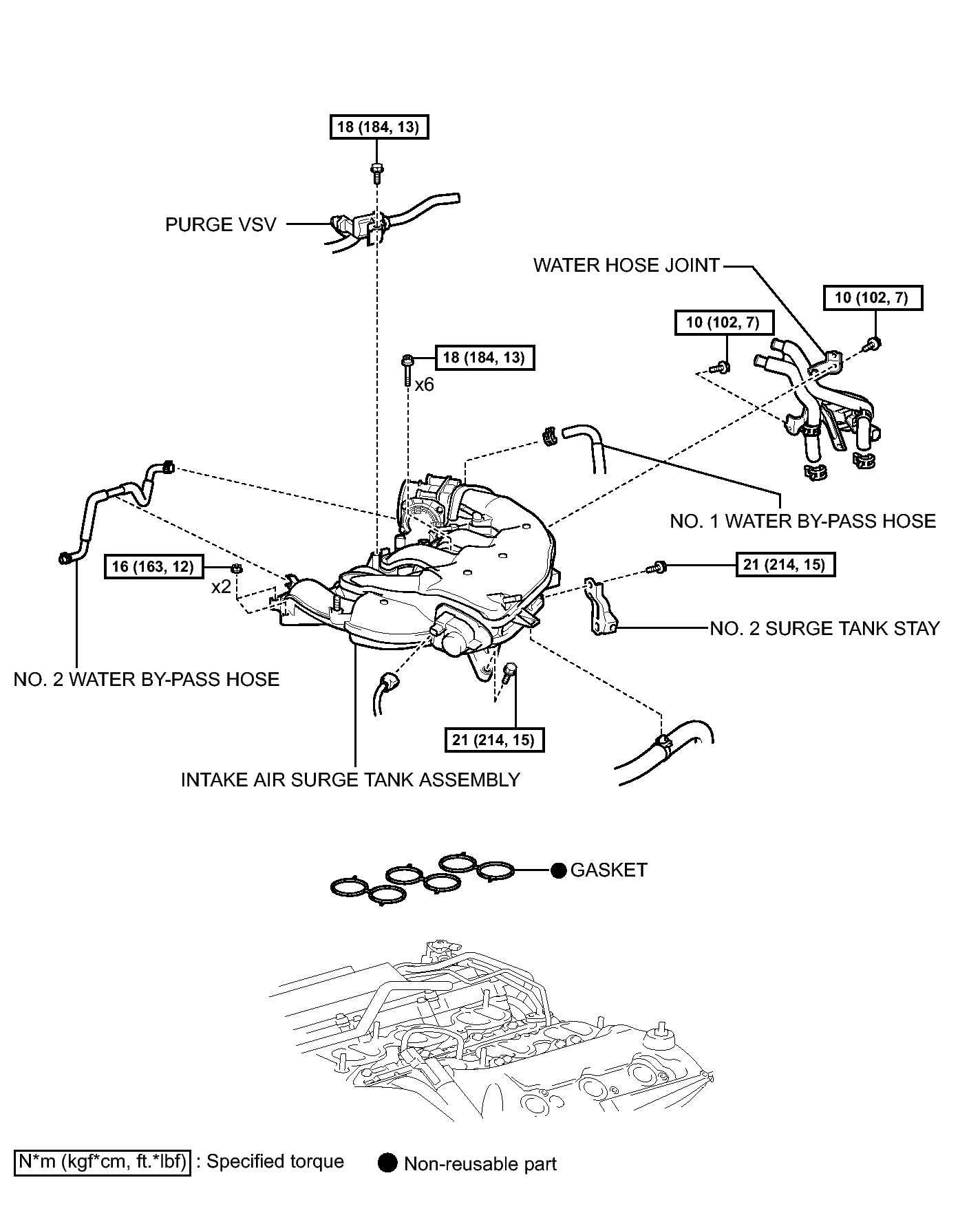

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (10 Of 17)
GTY146299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

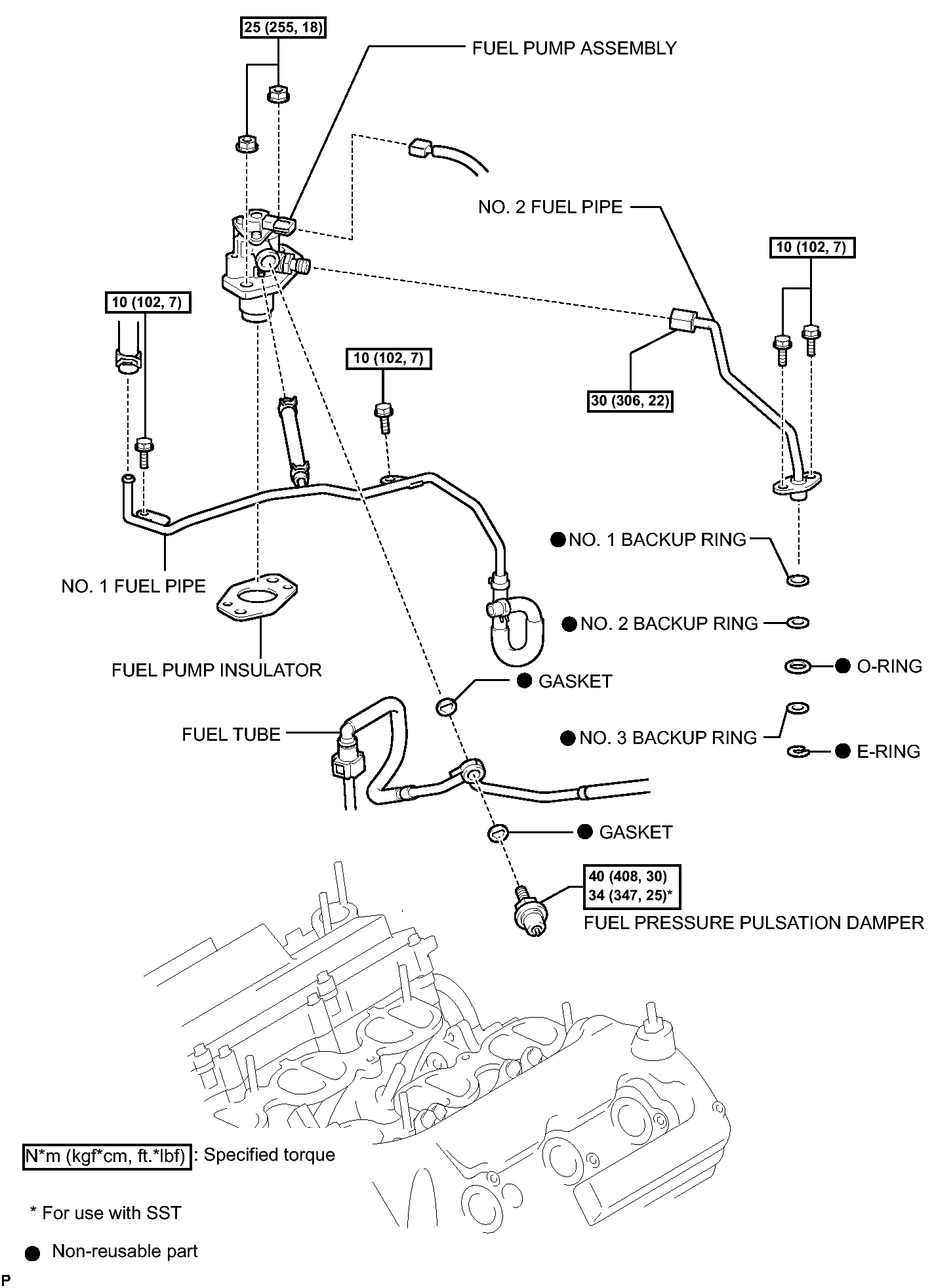

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (11 Of 17)
GTY279042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

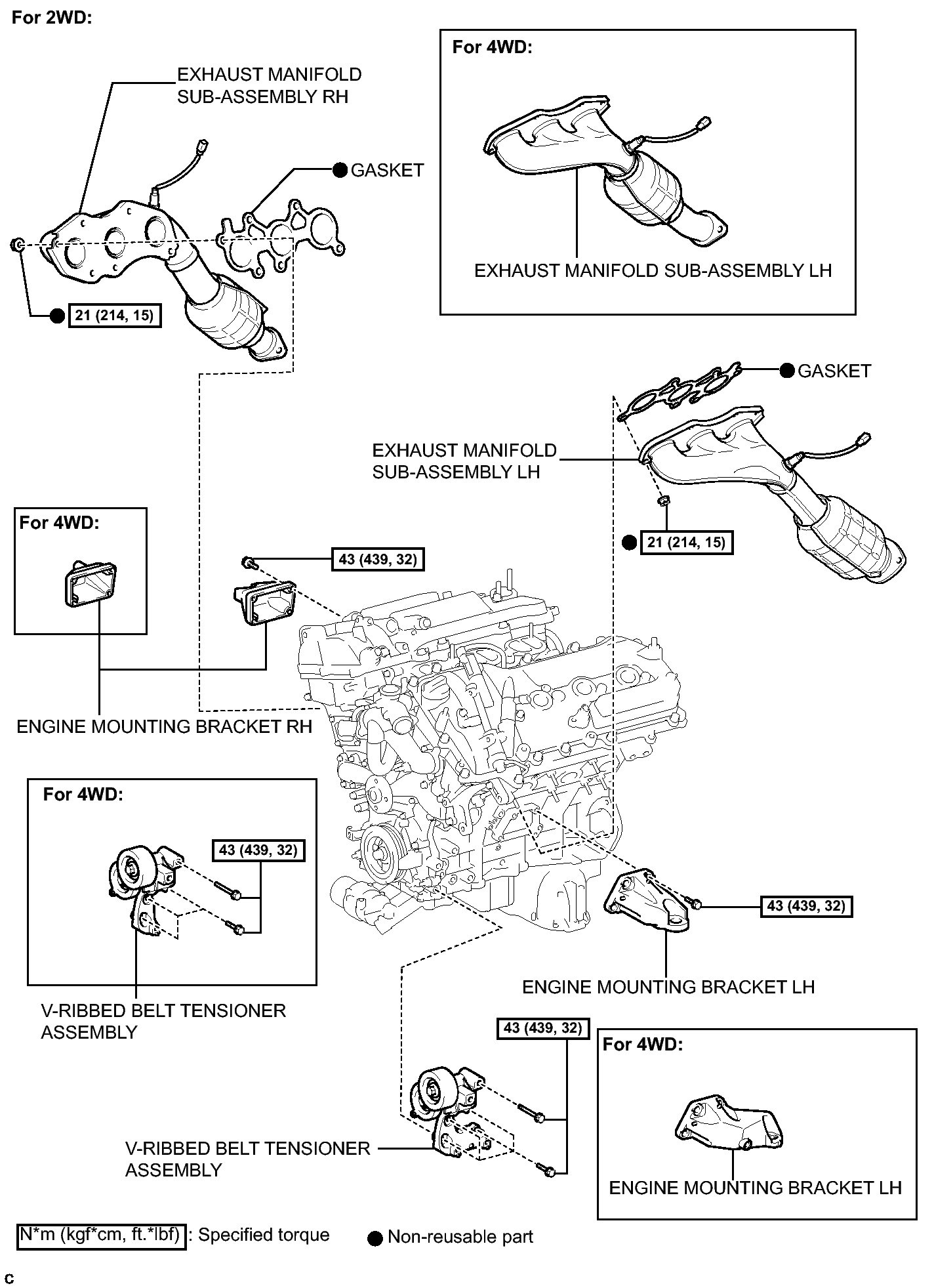

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (12 Of 17)
GTY359562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

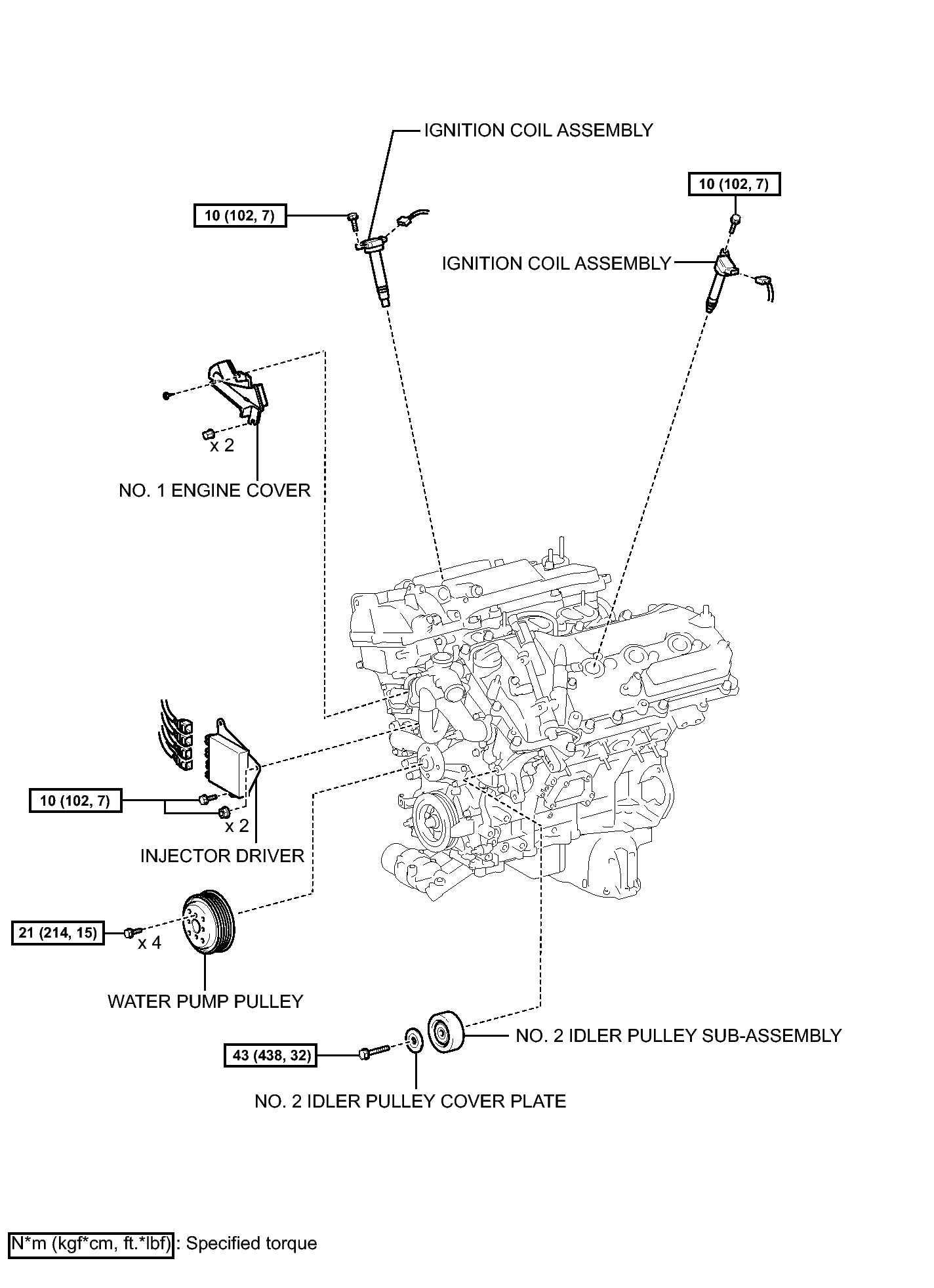

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (13 Of 17)
GTY261621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

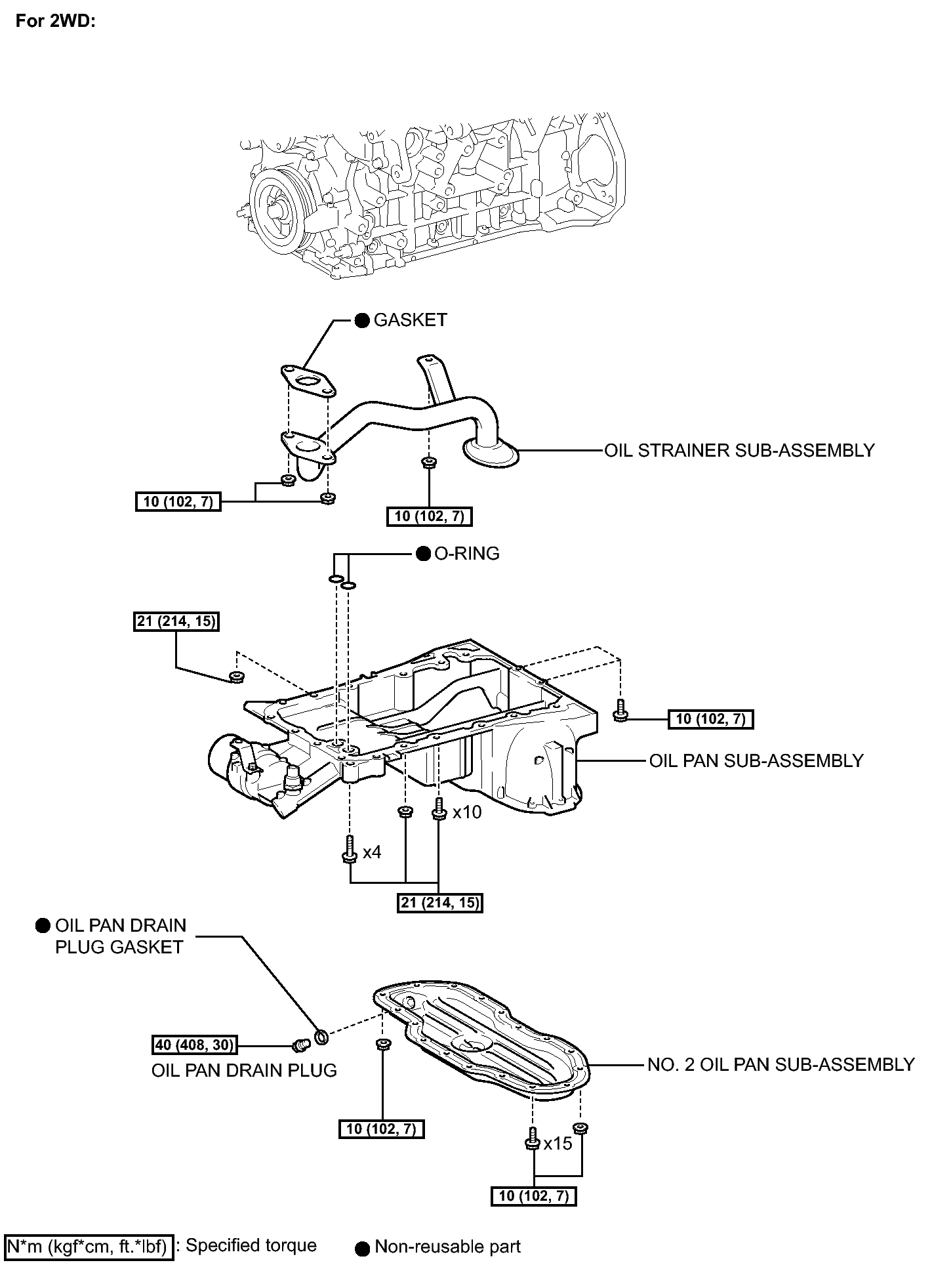

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (14 Of 17)
GTY359887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (2 Of 17)
GTY354509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

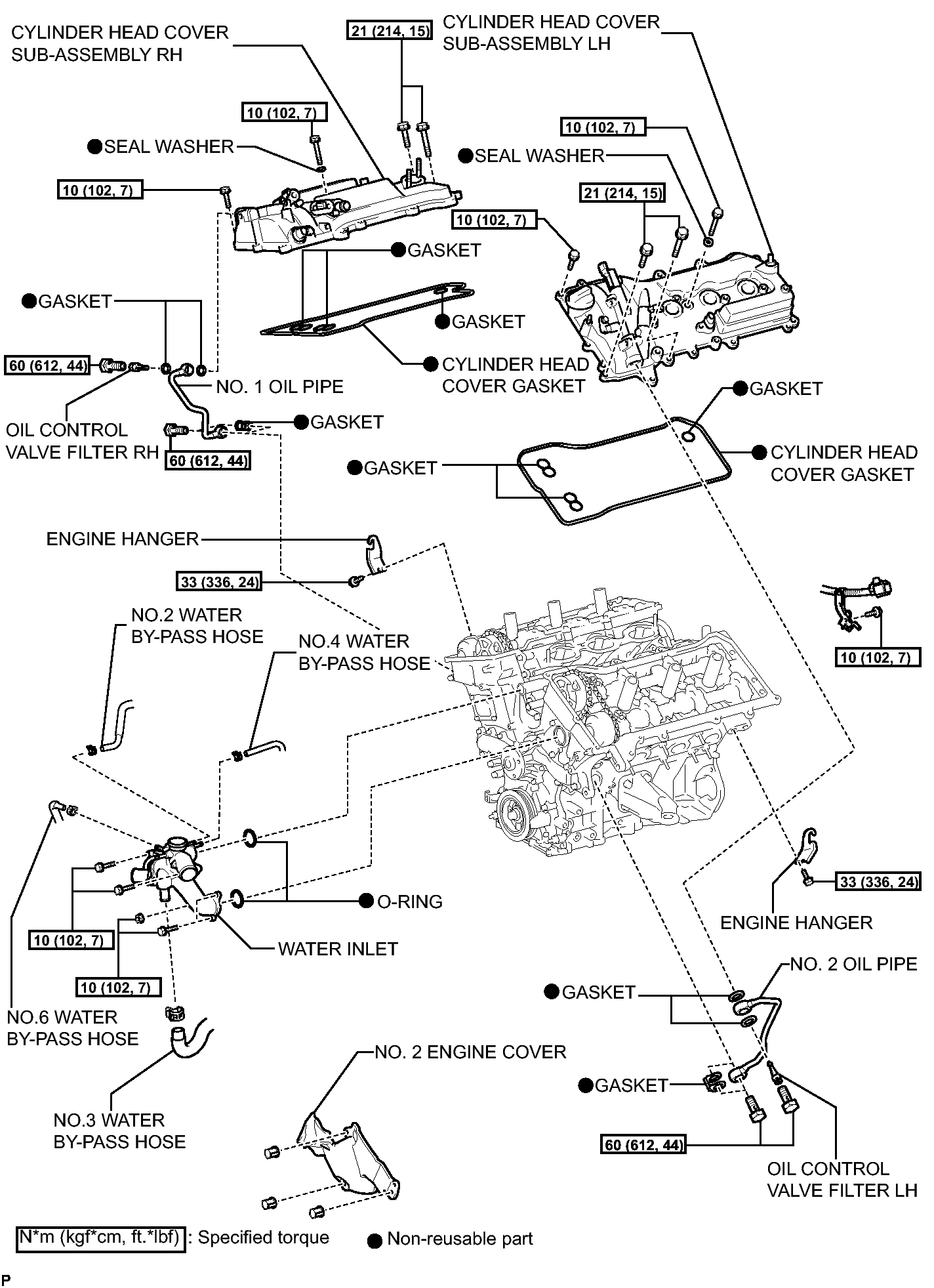

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (16 Of 17)
GTY146391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

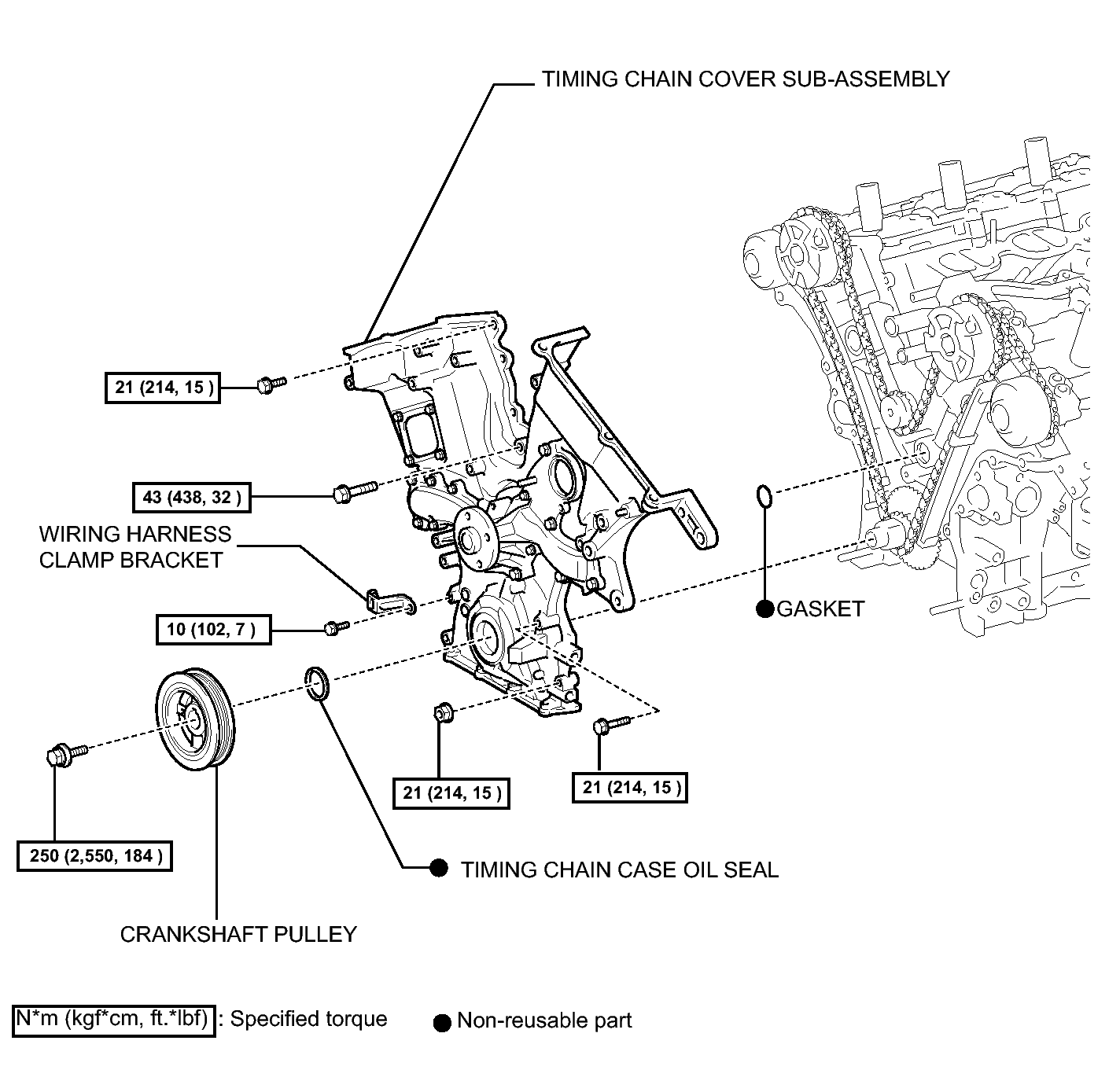

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications (17 Of 17)
GTY146307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
