Front Passenger Side Power Window Switch: Components: Illustration

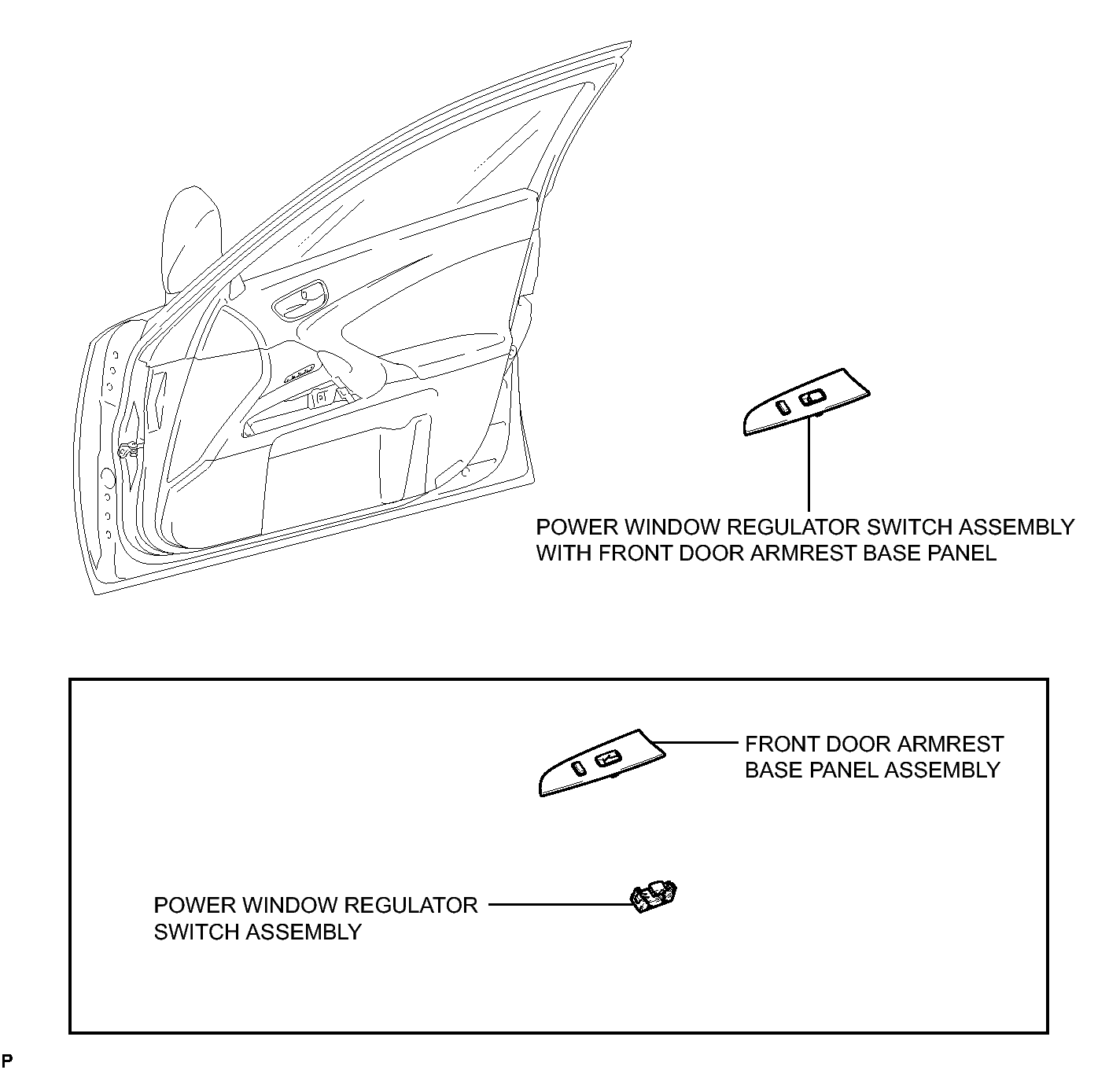

Fig 1: Identifying Front Passenger Side Power Window Switch Replacement Components

GTY126356

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
