Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

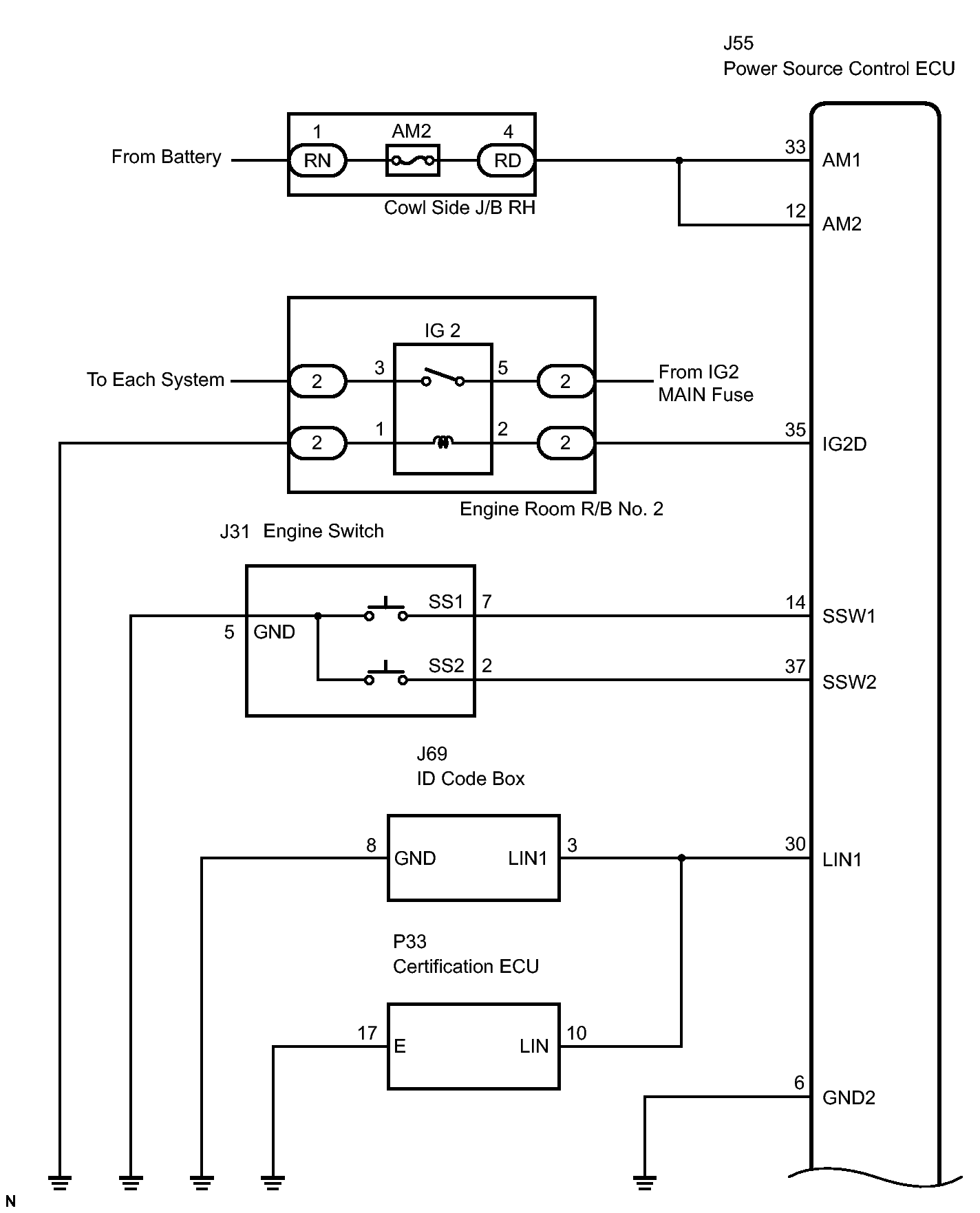

Fig 1: Identifying Power Source Mode Circuit Wiring Diagram (1 Of 2)
GTY350346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

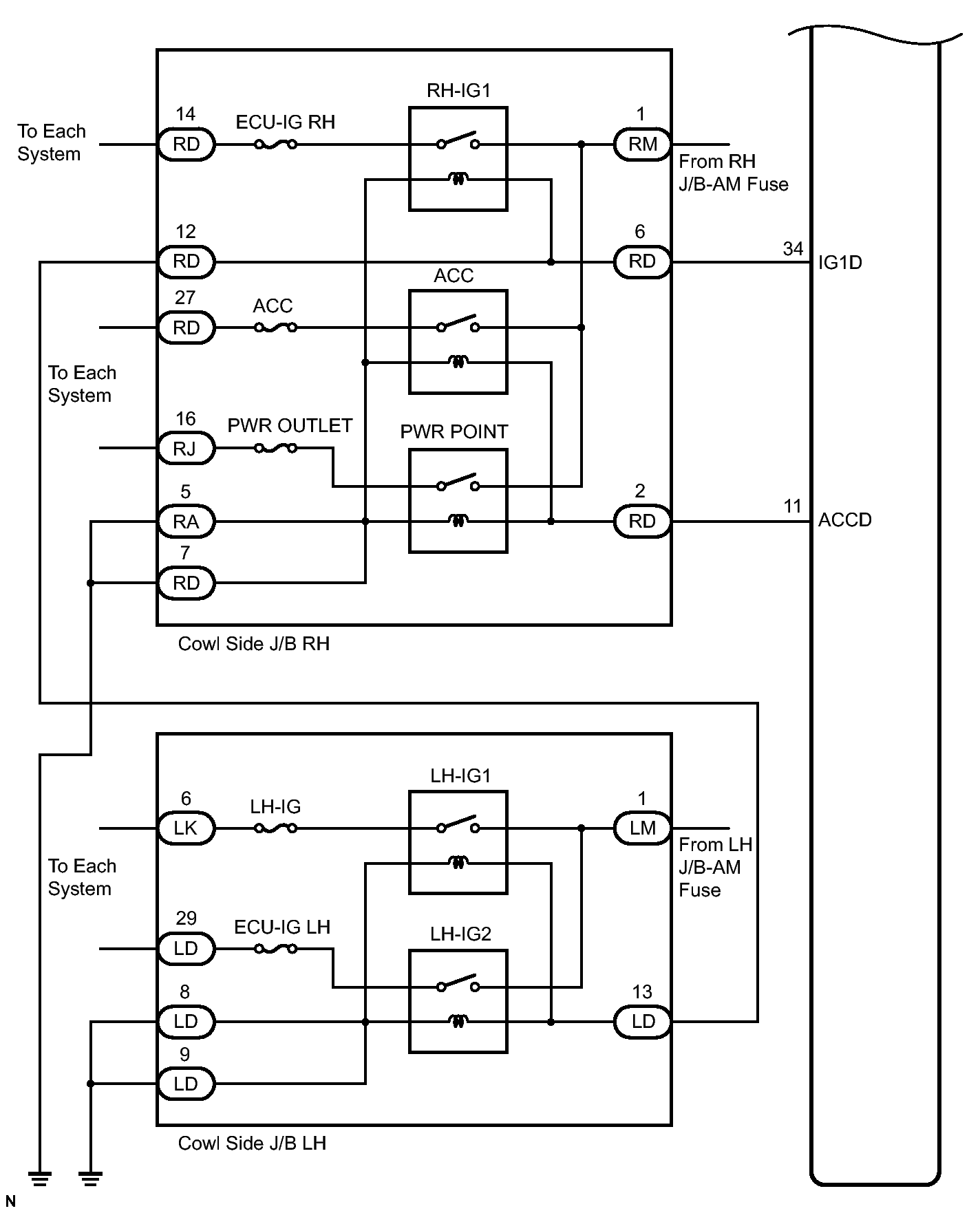

Fig 2: Identifying Power Source Mode Circuit Wiring Diagram (2 Of 2)
GTY140422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
