Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor)

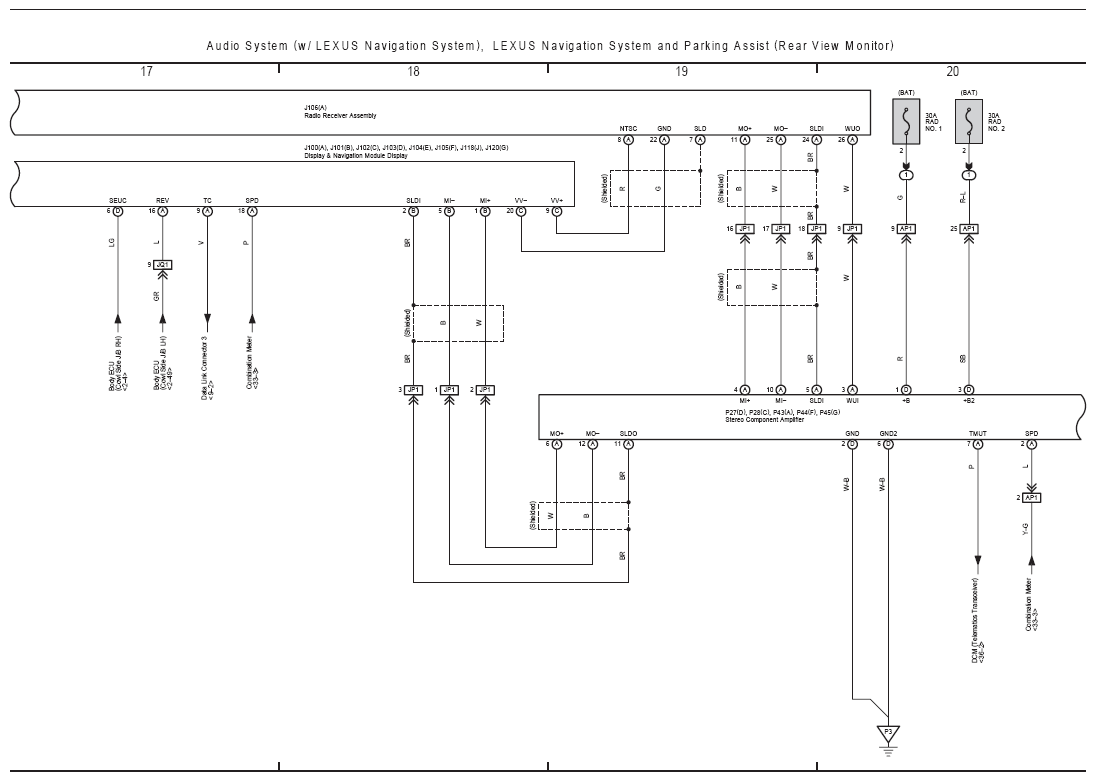

Fig 1: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

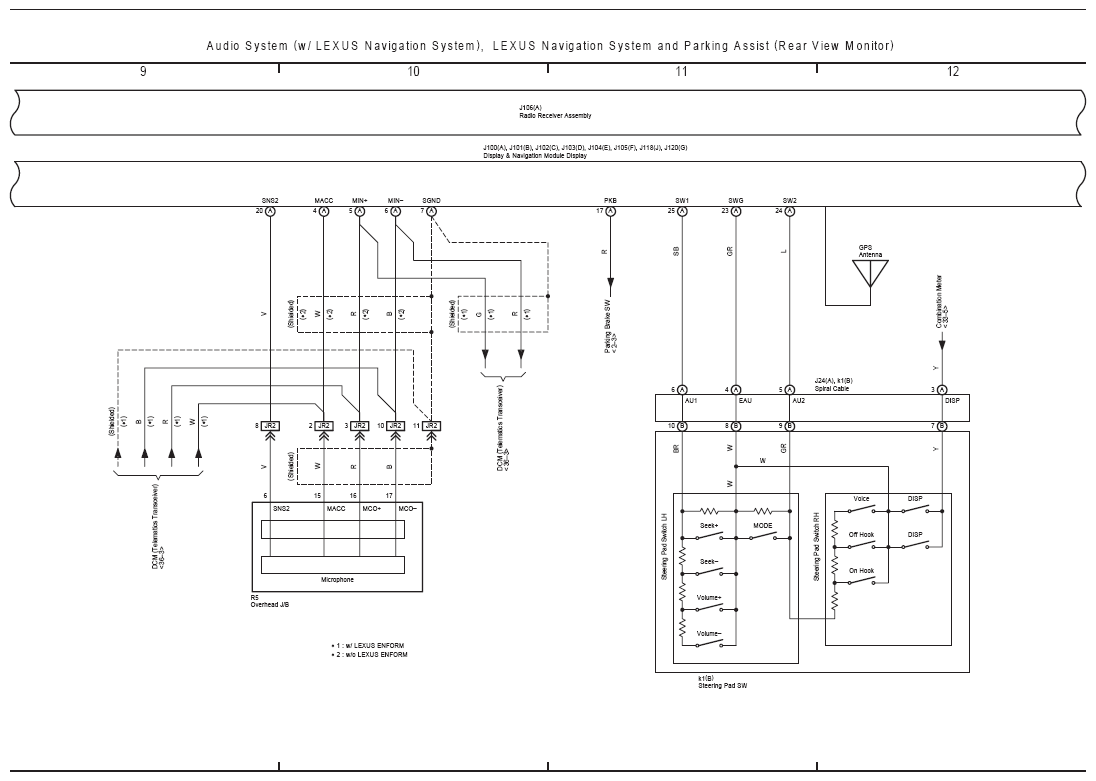

Fig 2: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

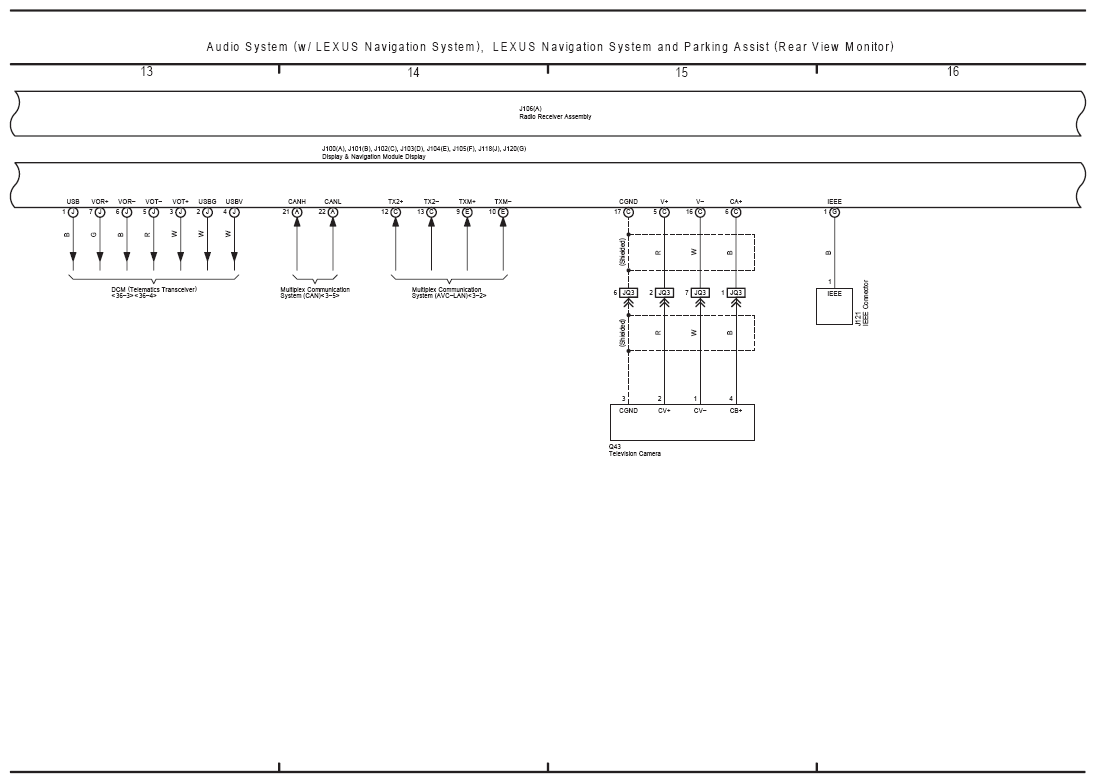

Fig 3: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

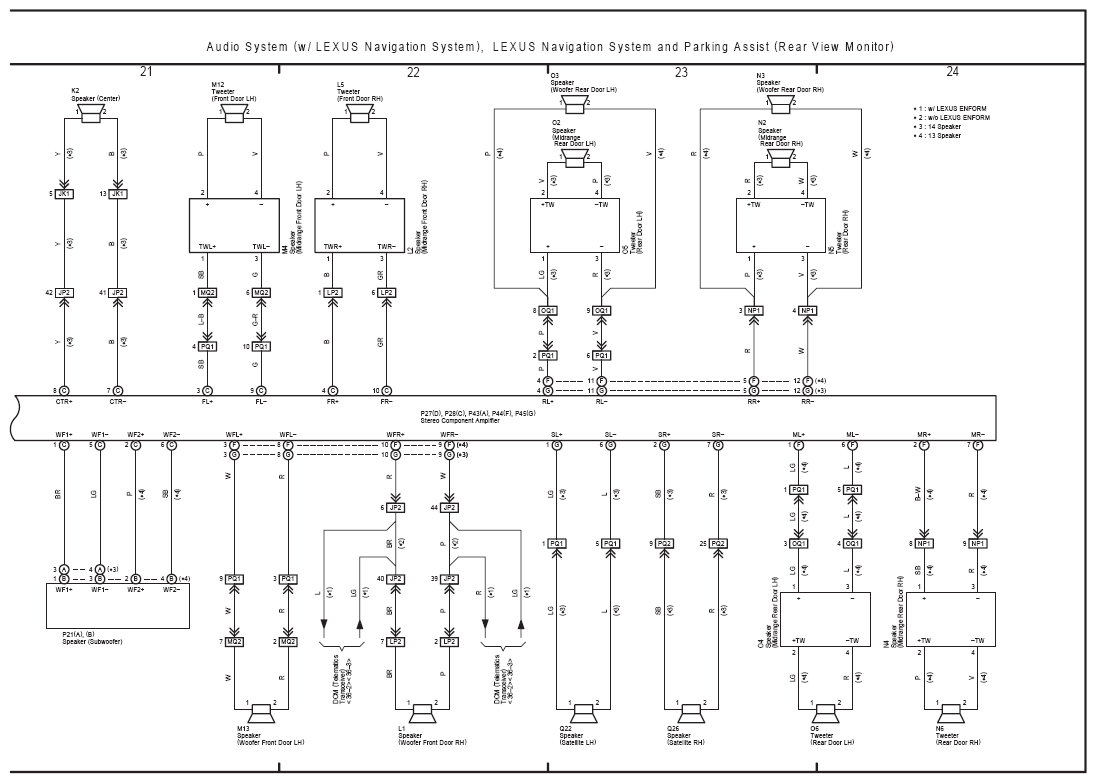

Fig 4: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

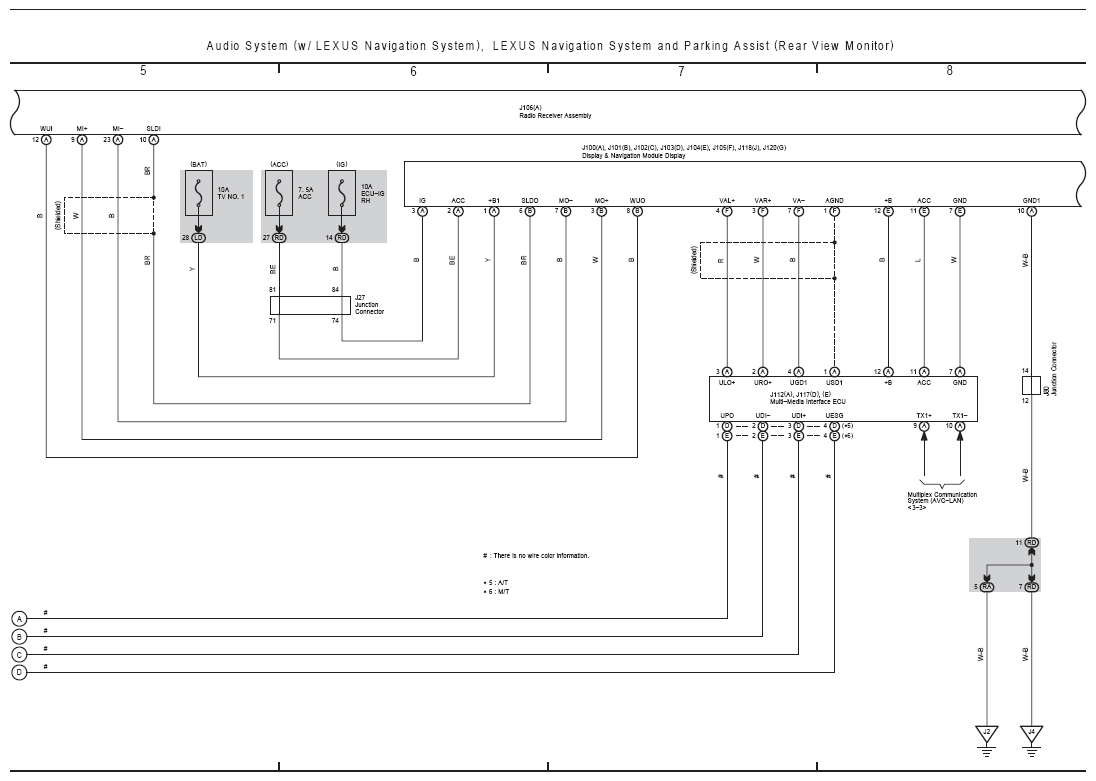

Fig 5: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

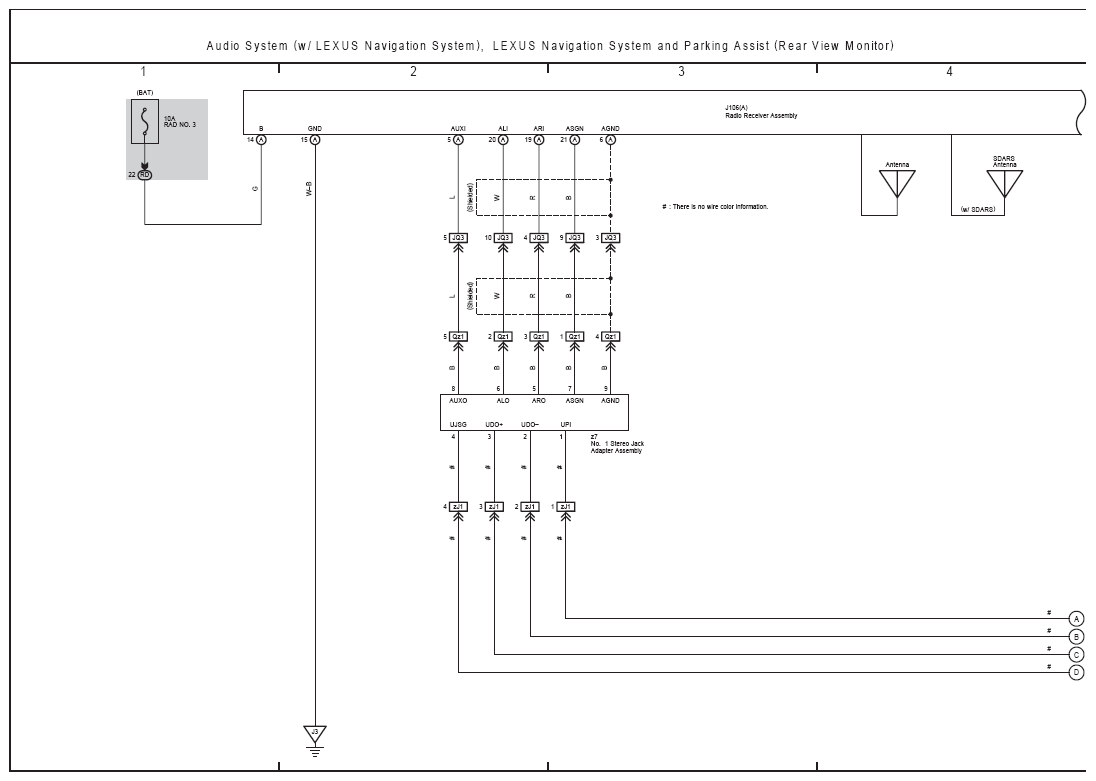

Fig 6: Audio System (W/LEXUS Navigation System), LEXUS Navigation System And Parking Assist (Rear View Monitor) Electrical Wiring Diagram (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
