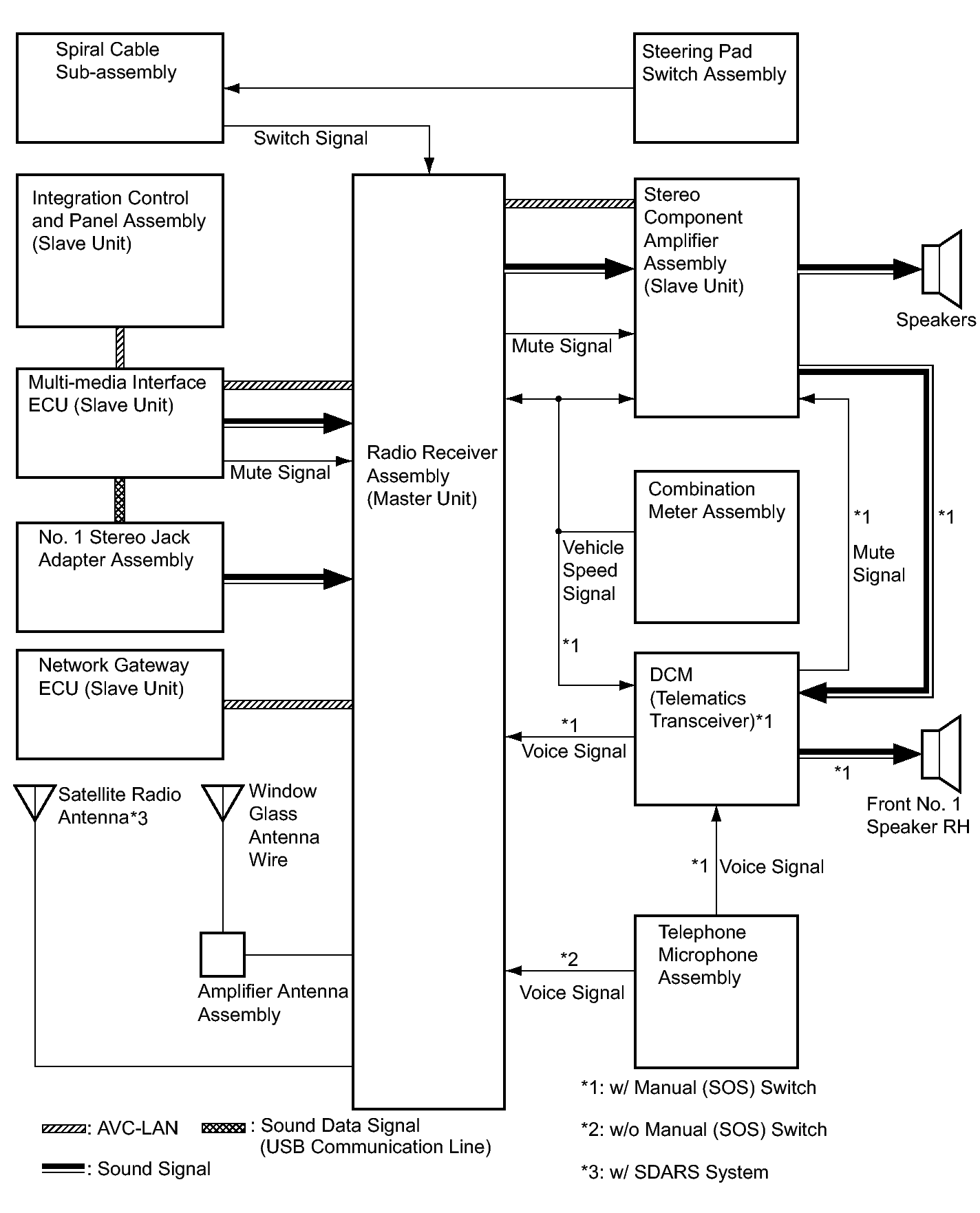

Home >> Lexus >> 2012 >> IS 250 Base, AWD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Infotainment >> Audio Entertainment System (W/O Navigation & Multi-Display) (Diagnostics - Introduction) >> AUDIO AND VISUAL SYSTEM (w/o Navigation System without Multi-display) >> System Diagram >> System Diagram
