Yaw Rate Sensor Communication Stop Mode: Wiring Diagram

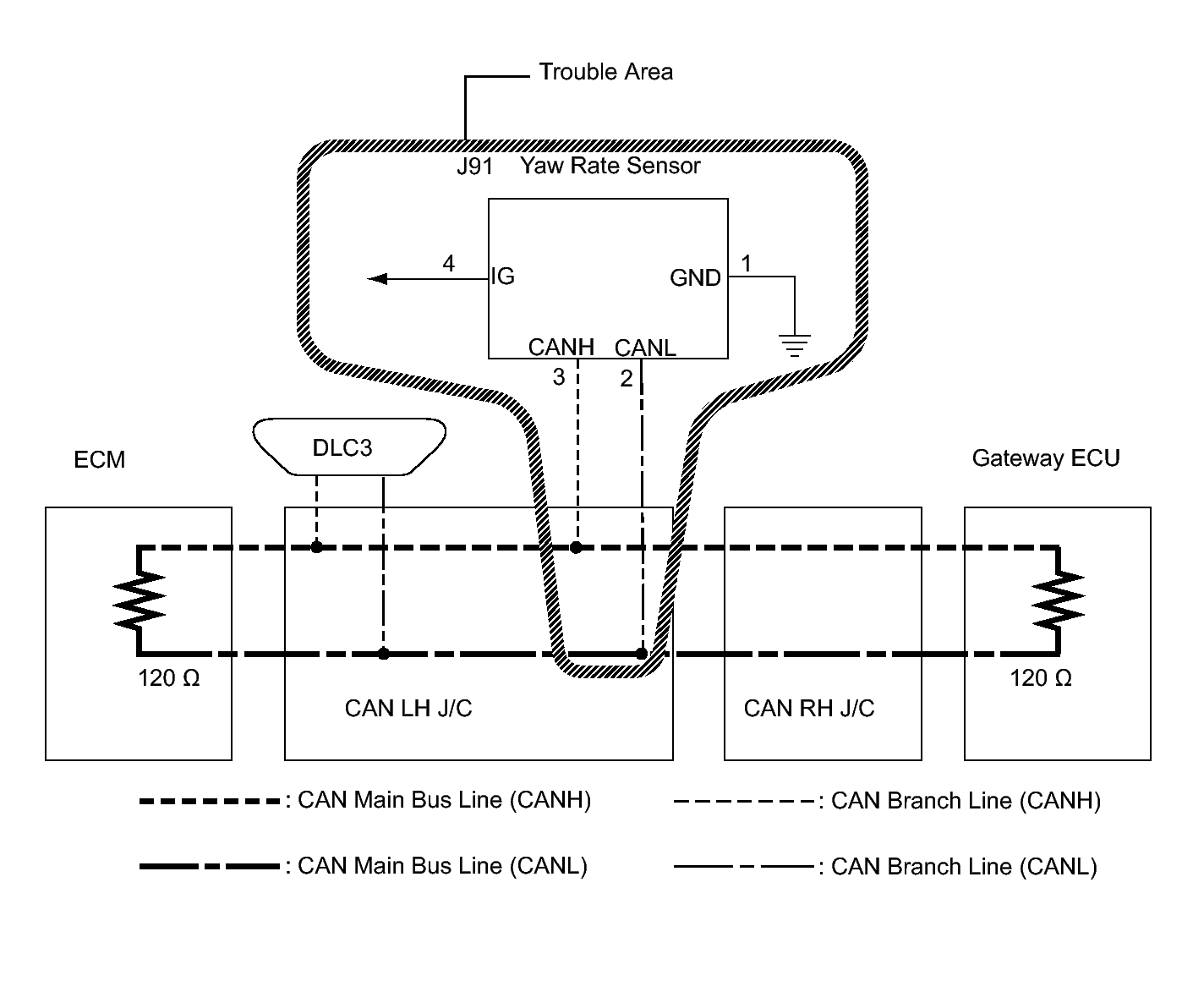

Fig 1: Identifying J91 Yaw Rate Sensor Wiring Diagram

GTY267691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
