Sub Radiator: Components: Illustration

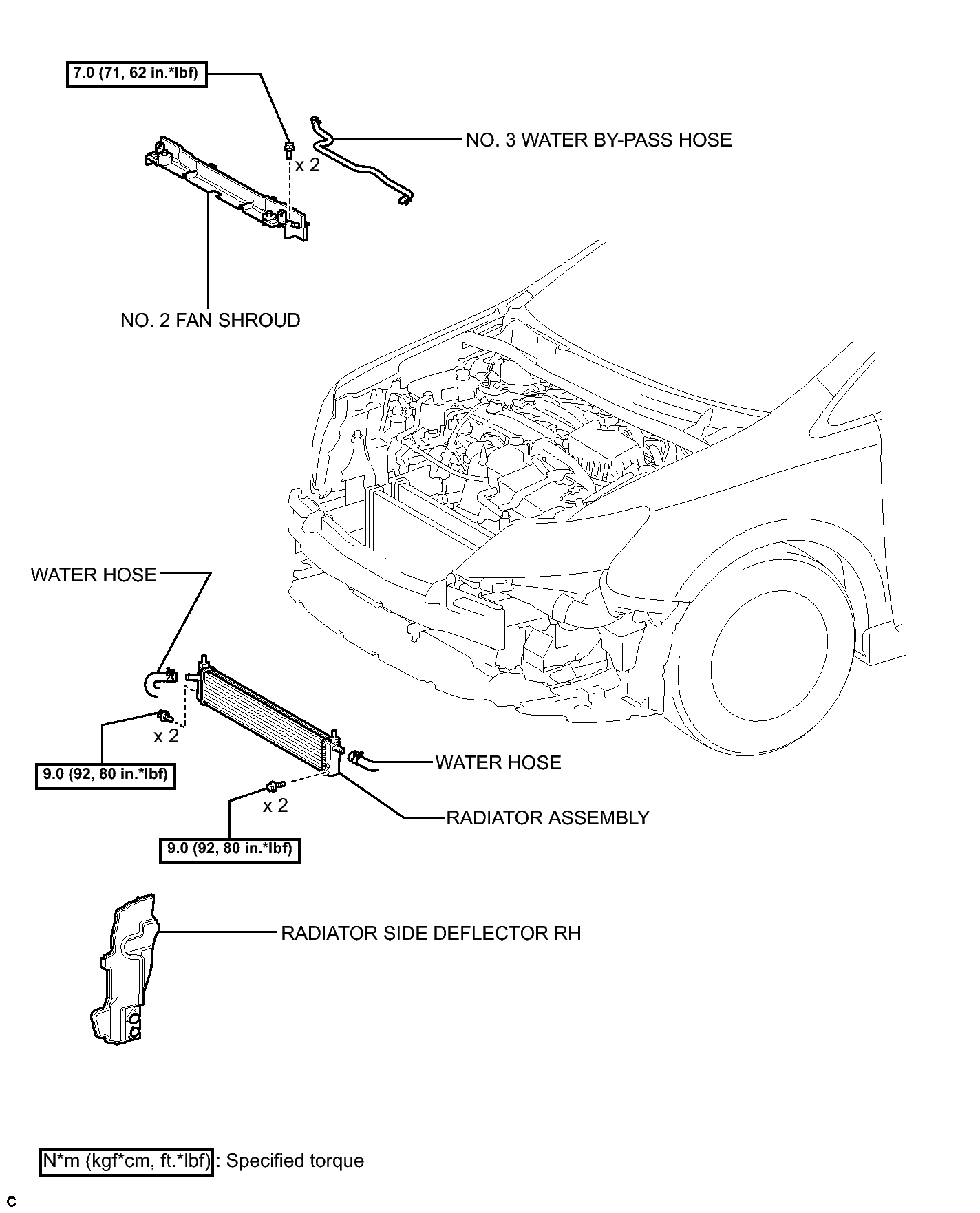

Fig 1: Identifying SUB Radiator Replacement Components With Torque Specifications

GTY280887

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
