DTC P0102, P0103: Mass or Volume Air Flow Circuit Low Input; Mass or Volume Air Flow Circuit High Input: Wiring Diagram

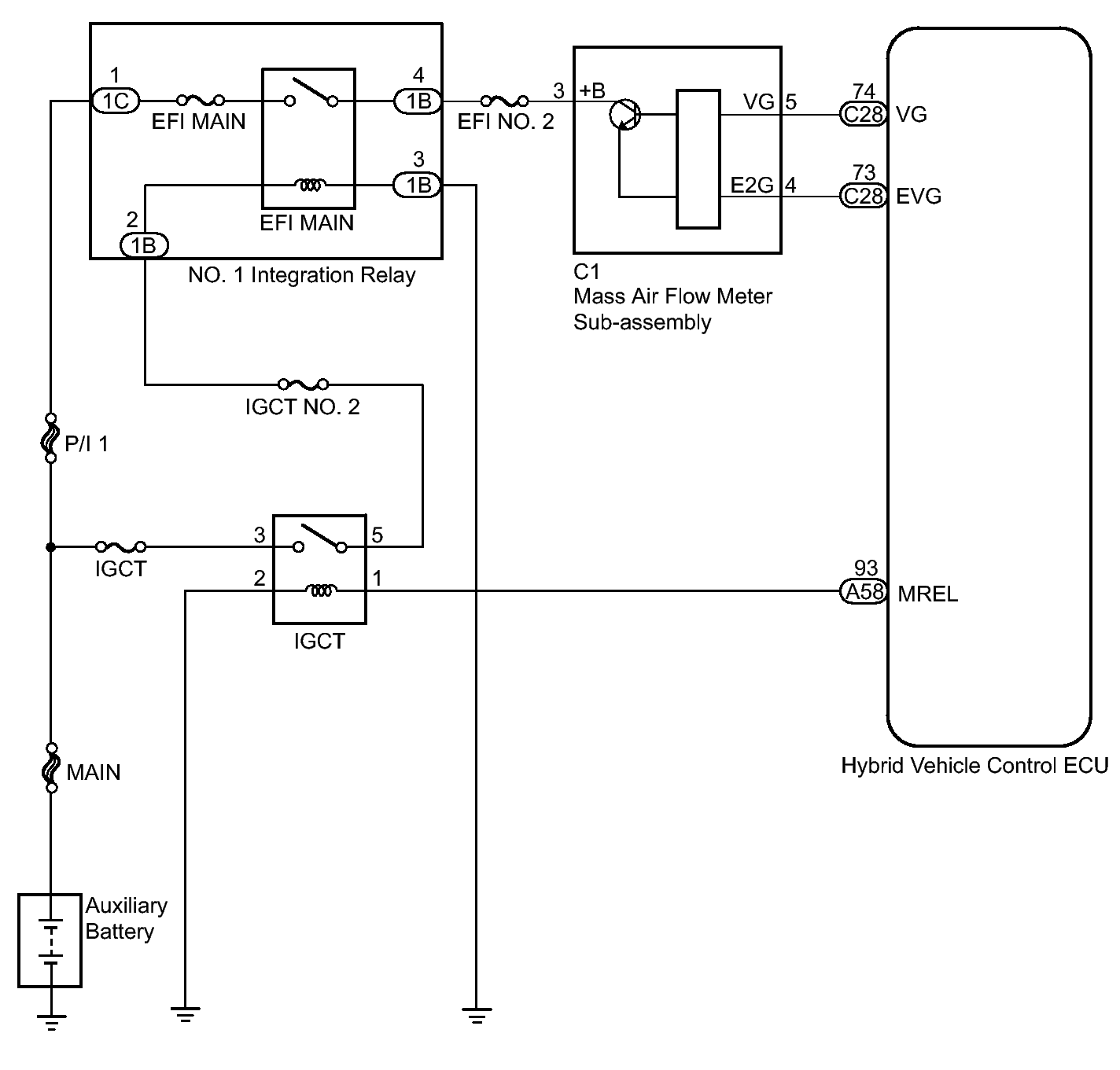

Fig 1: Mass Or Volume Air Flow Circuit Wiring Diagram
GTY393381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
