Fuel Pressure Regulator: Components: Illustration

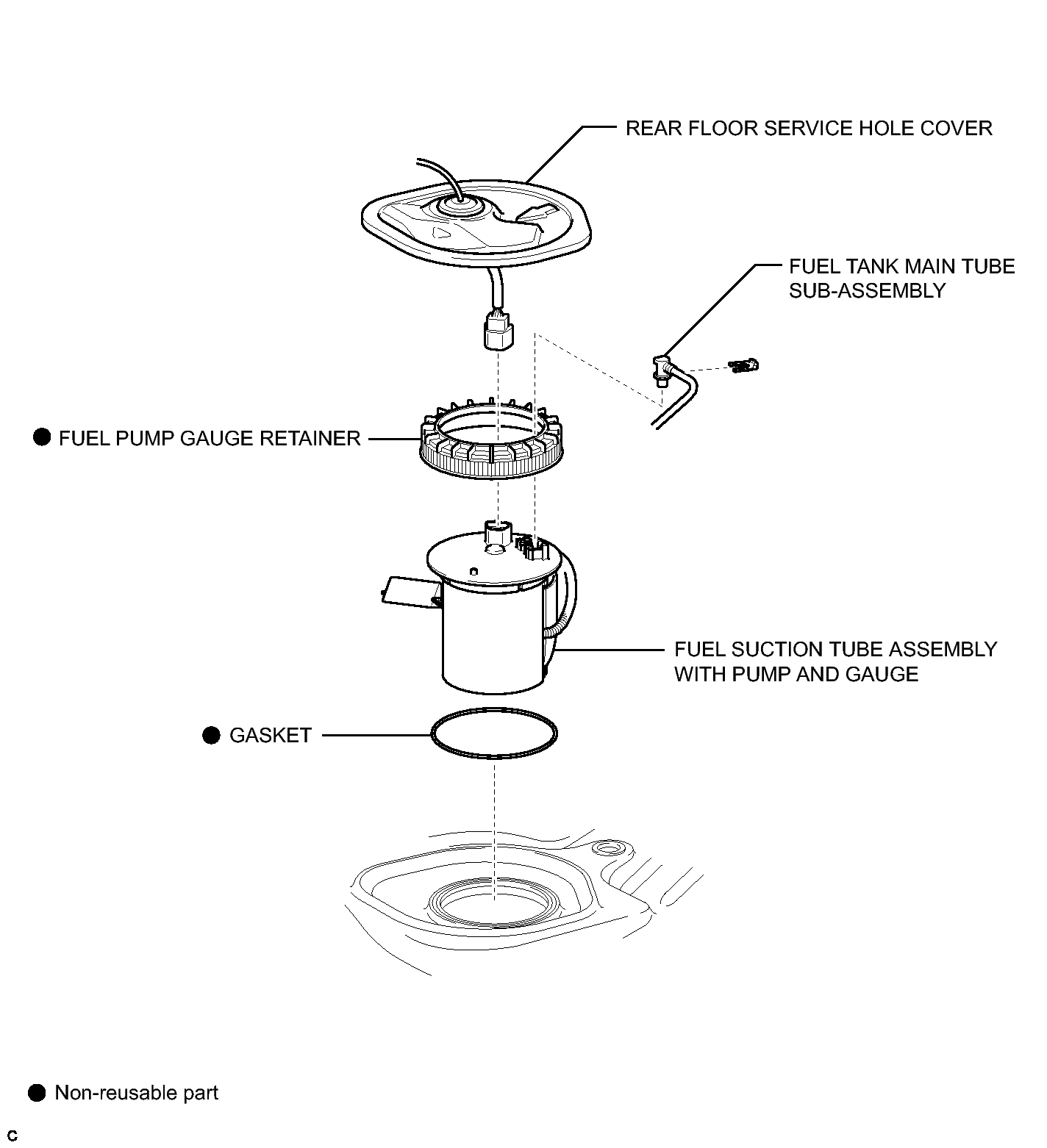

Fig 1: Identifying Fuel Pressure Regulator Replacement Components (1 Of 2)
GTY287823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

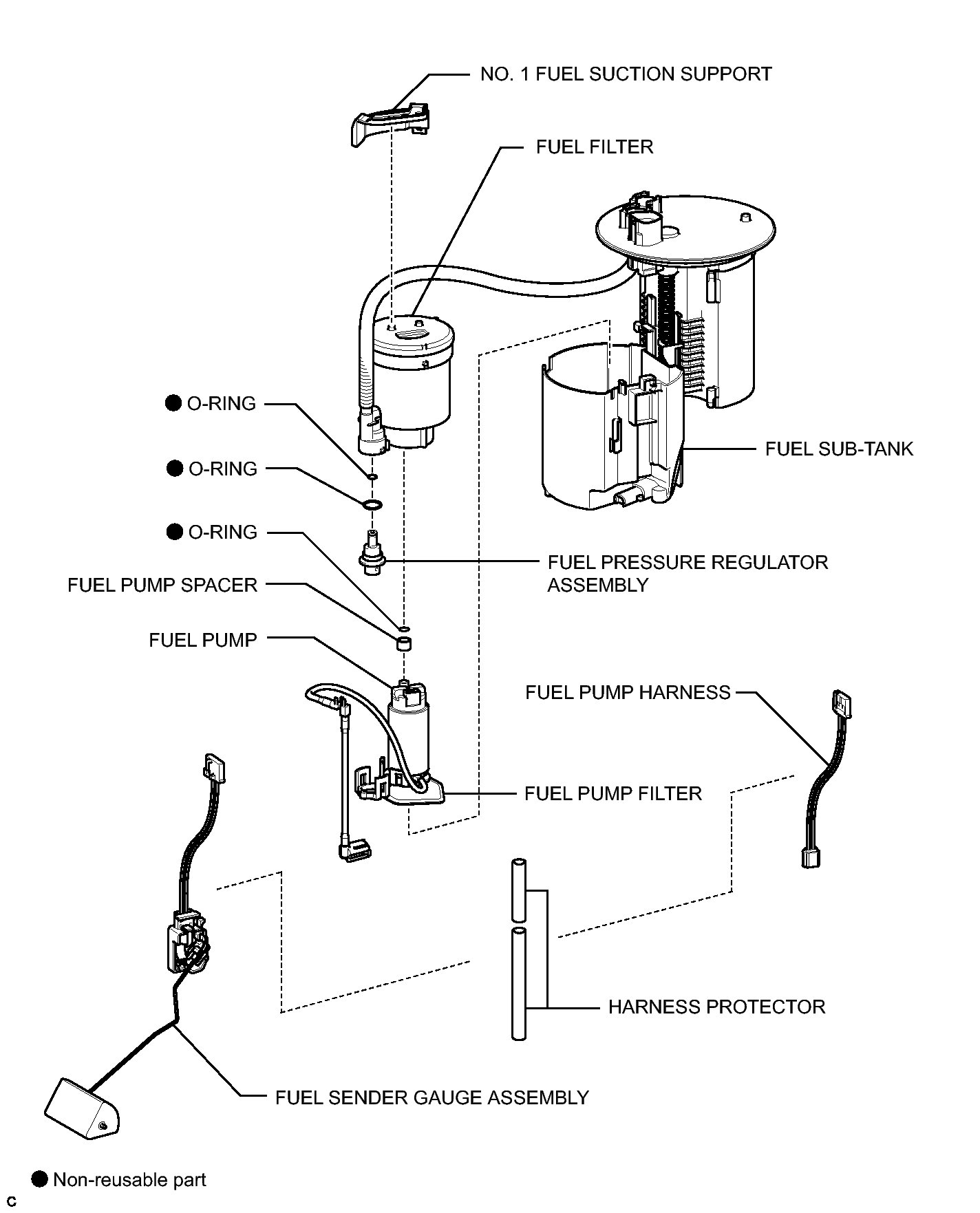

Fig 1: Identifying Fuel Pressure Regulator Replacement Components (2 Of 2)
GTY269986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
