Engine Unit: Components: Illustration

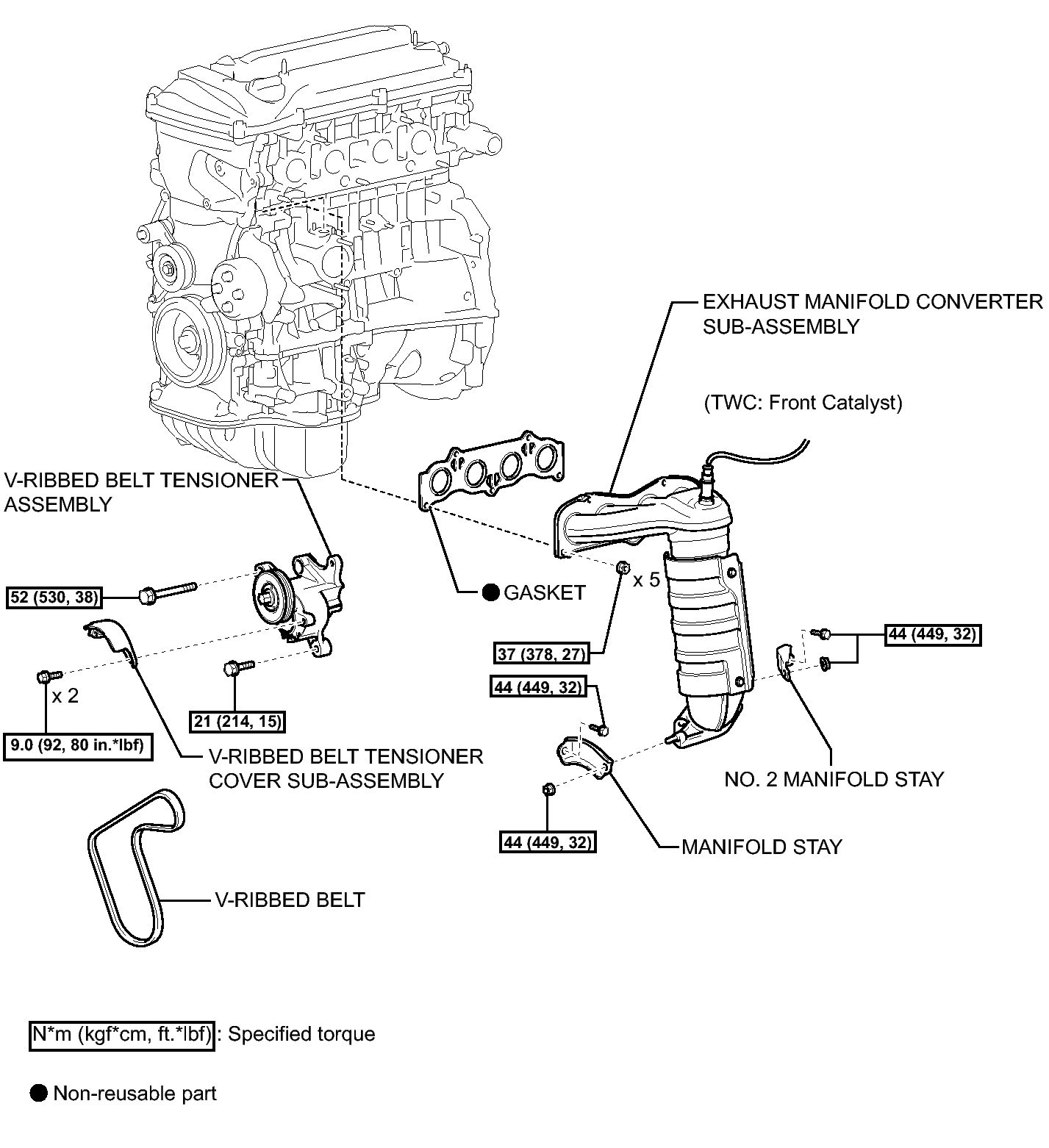

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (1 Of 7)
GTY275526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

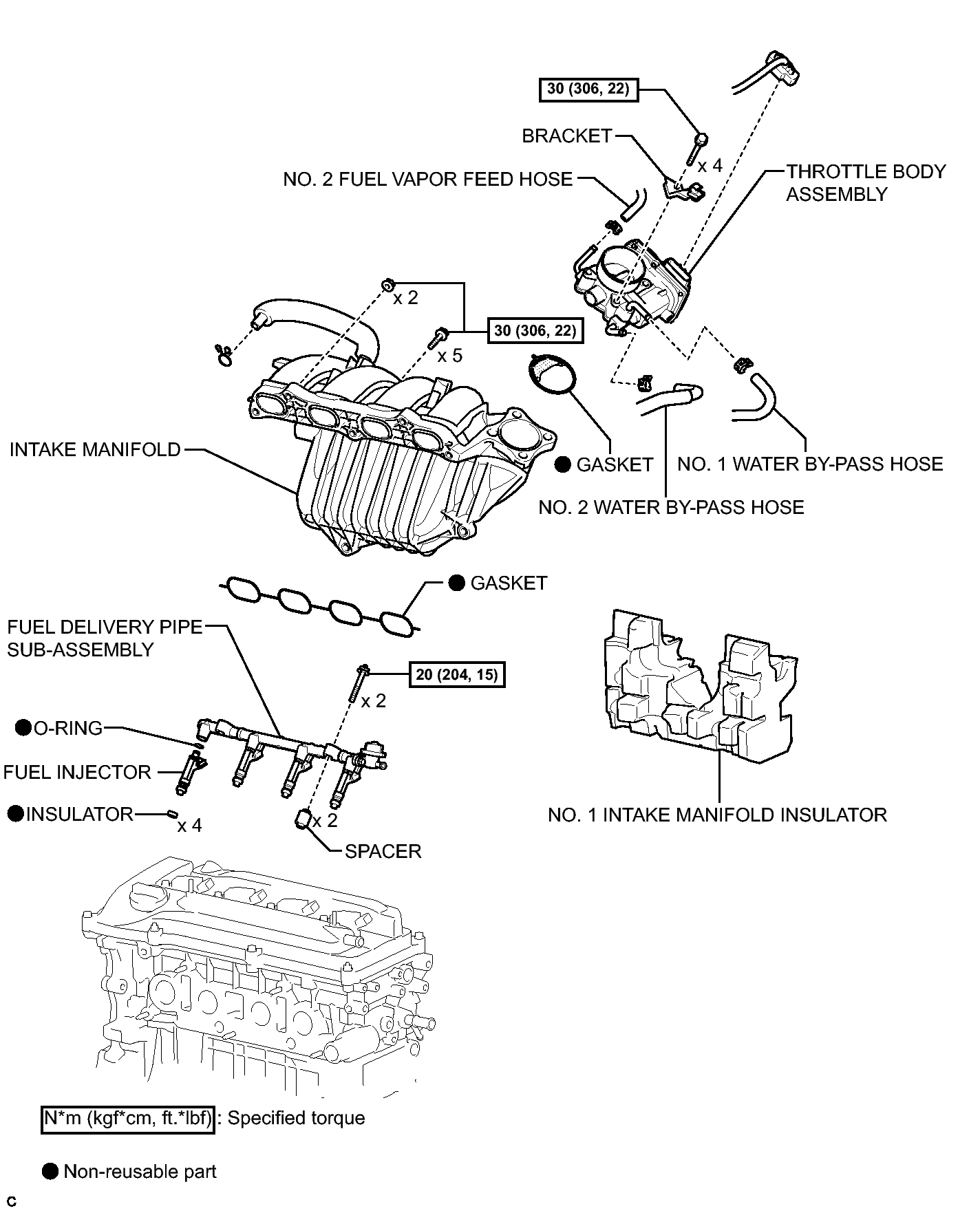

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (2 Of 7)
GTY260567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

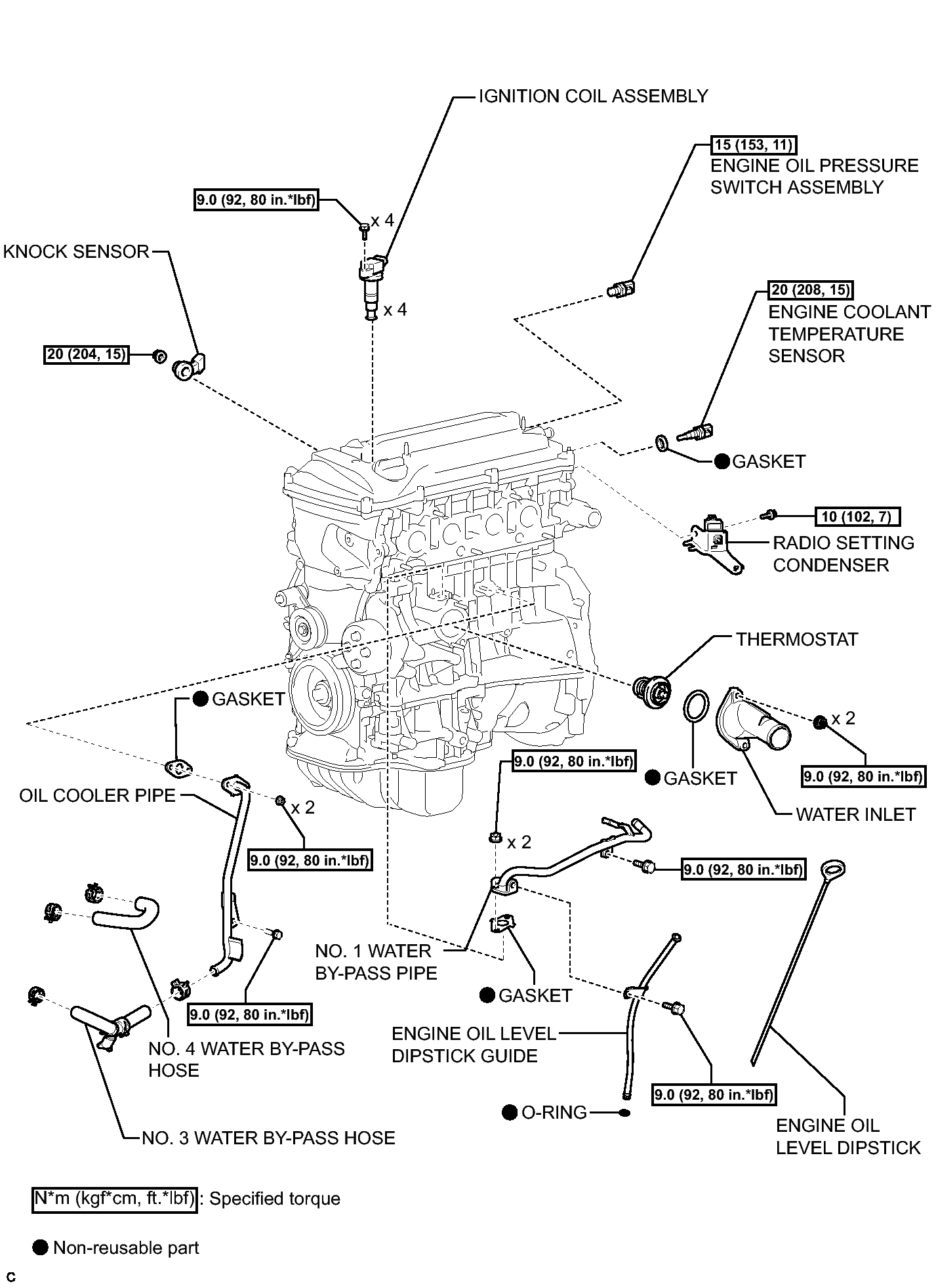

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (3 Of 7)
GTY255665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

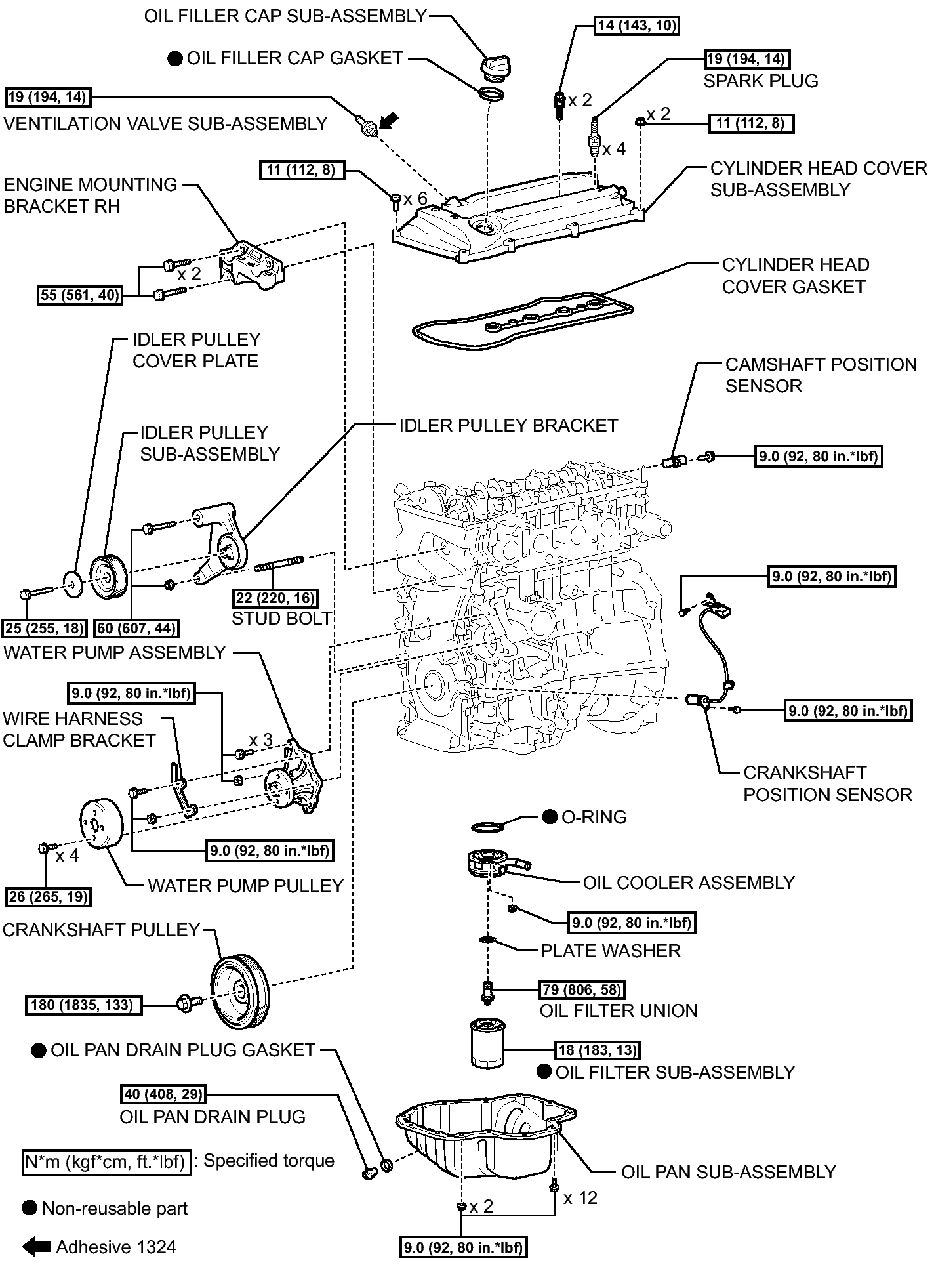

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (4 Of 7)
GTY257897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

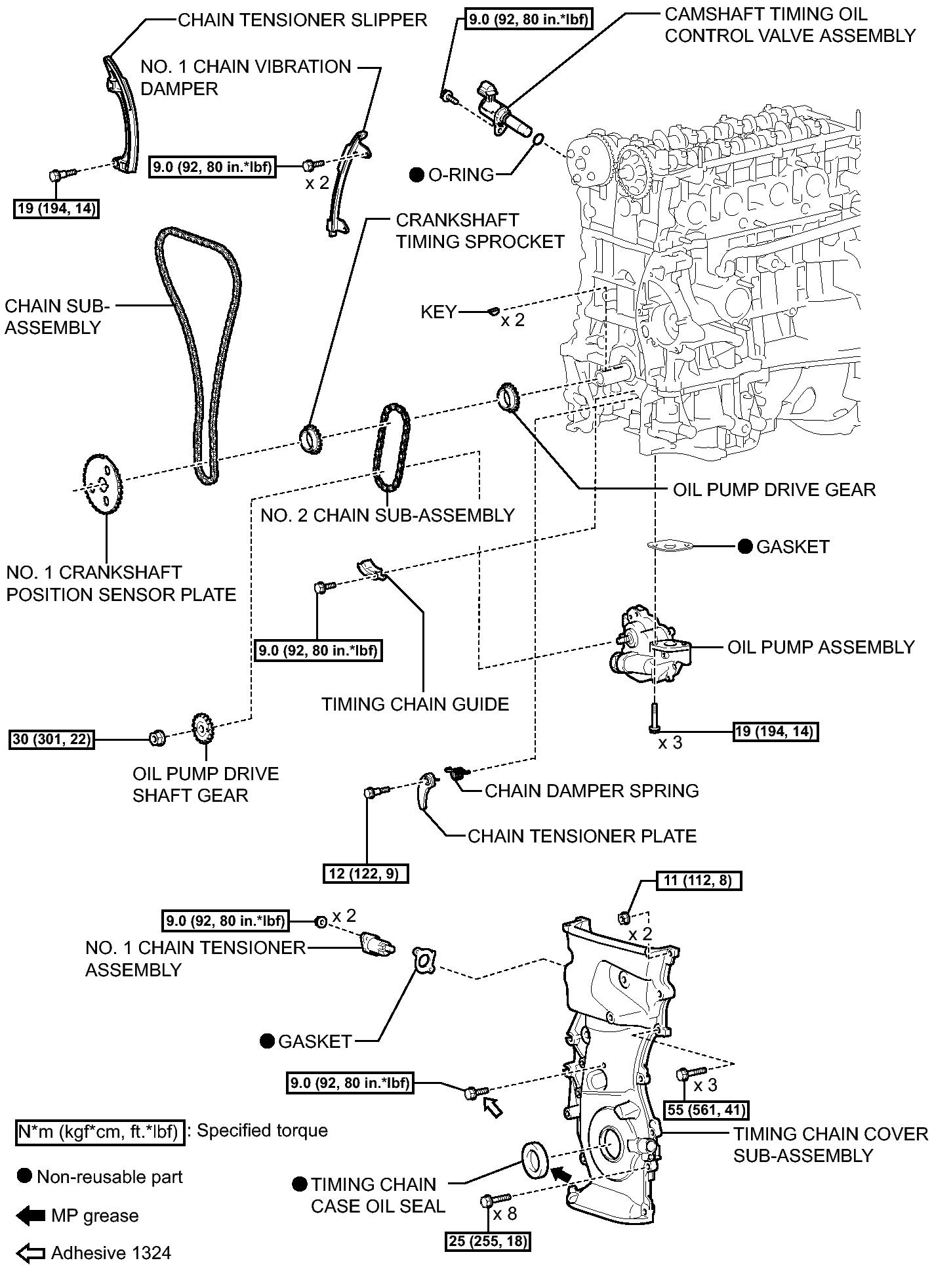

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (5 Of 7)
GTY264538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

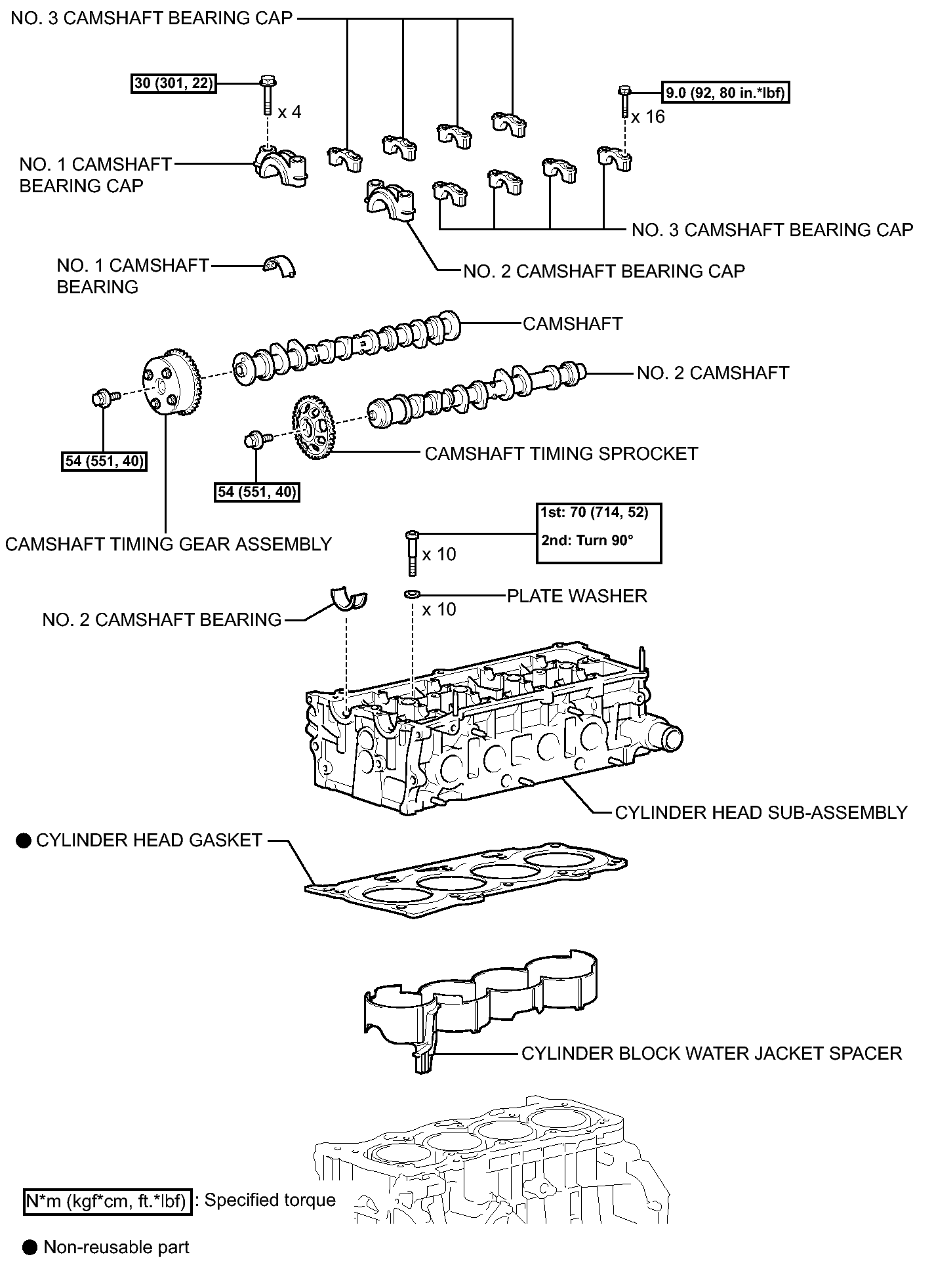

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (6 Of 7)
GTY254350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

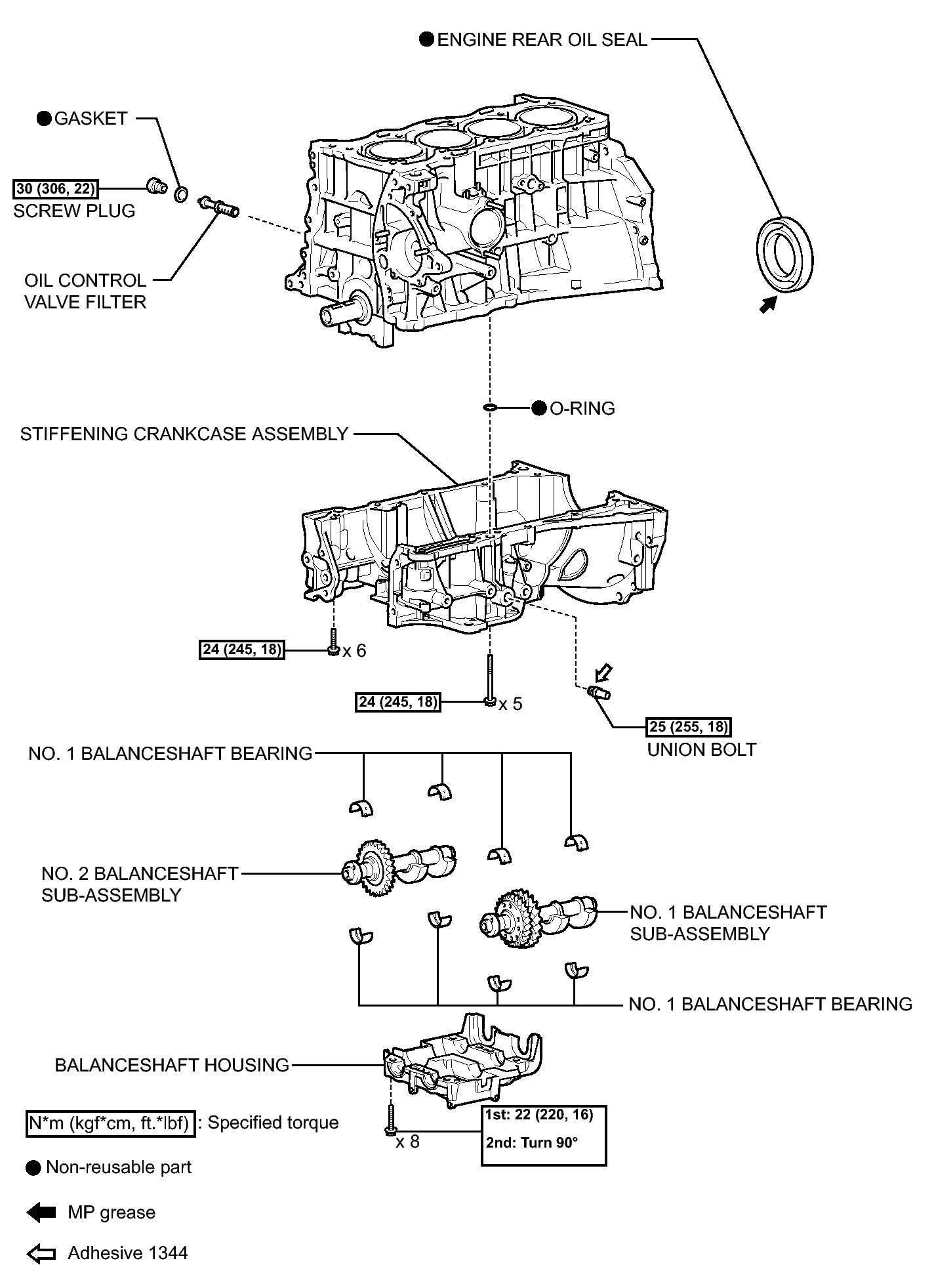

Fig 1: Identifying Engine Unit Replacement Components With Torque Specifications (7 Of 7)
GTY263815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
