Parts Location: Illustration

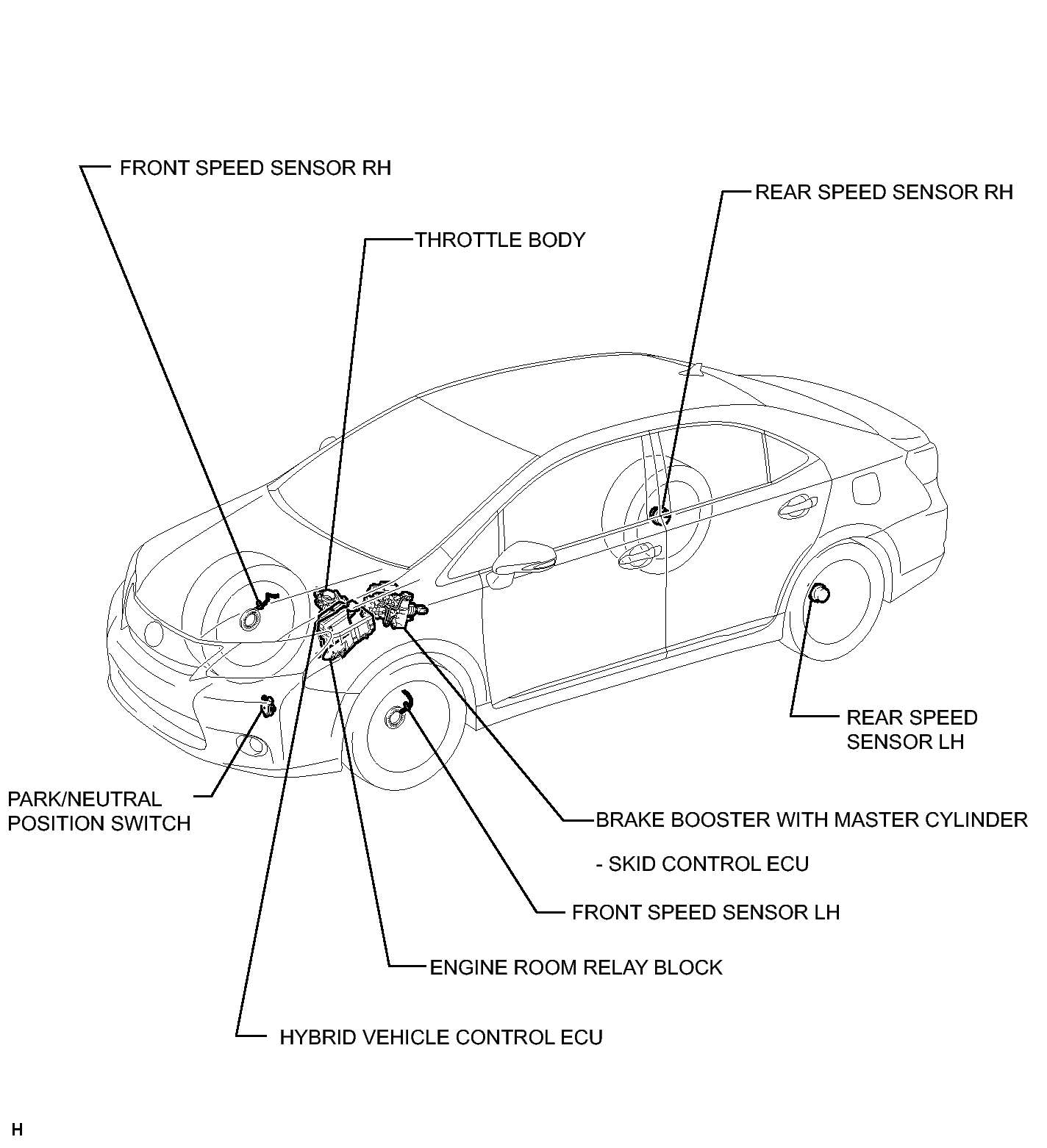

Fig 1: Identifying Cruise Control System Components Location (1 Of 2)
GTY261756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

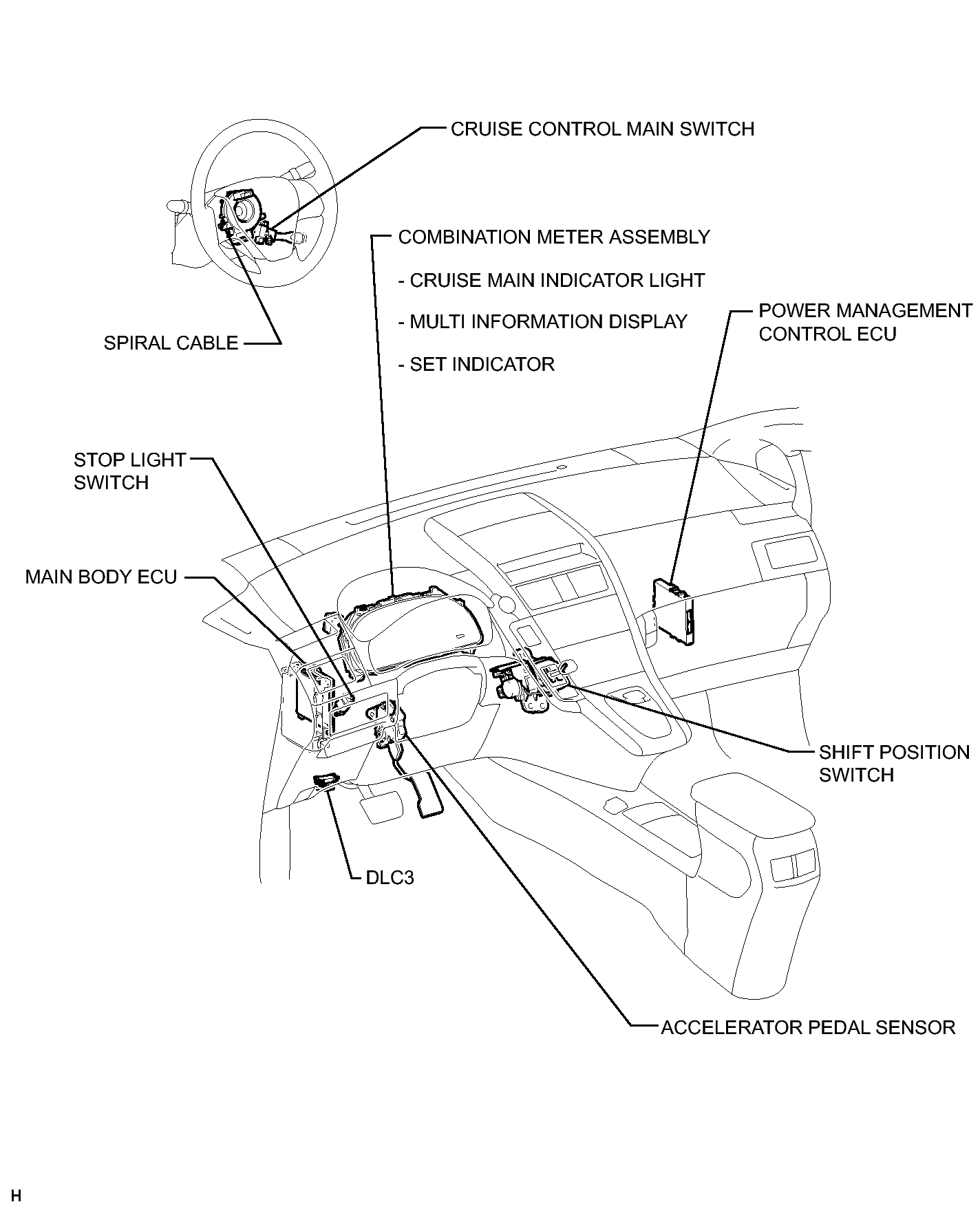

Fig 1: Identifying Cruise Control System Components Location (2 Of 2)
GTY263327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
