DTC B1793: Occupant Classification Sensor Power Supply Circuit Malfunction: Wiring Diagram

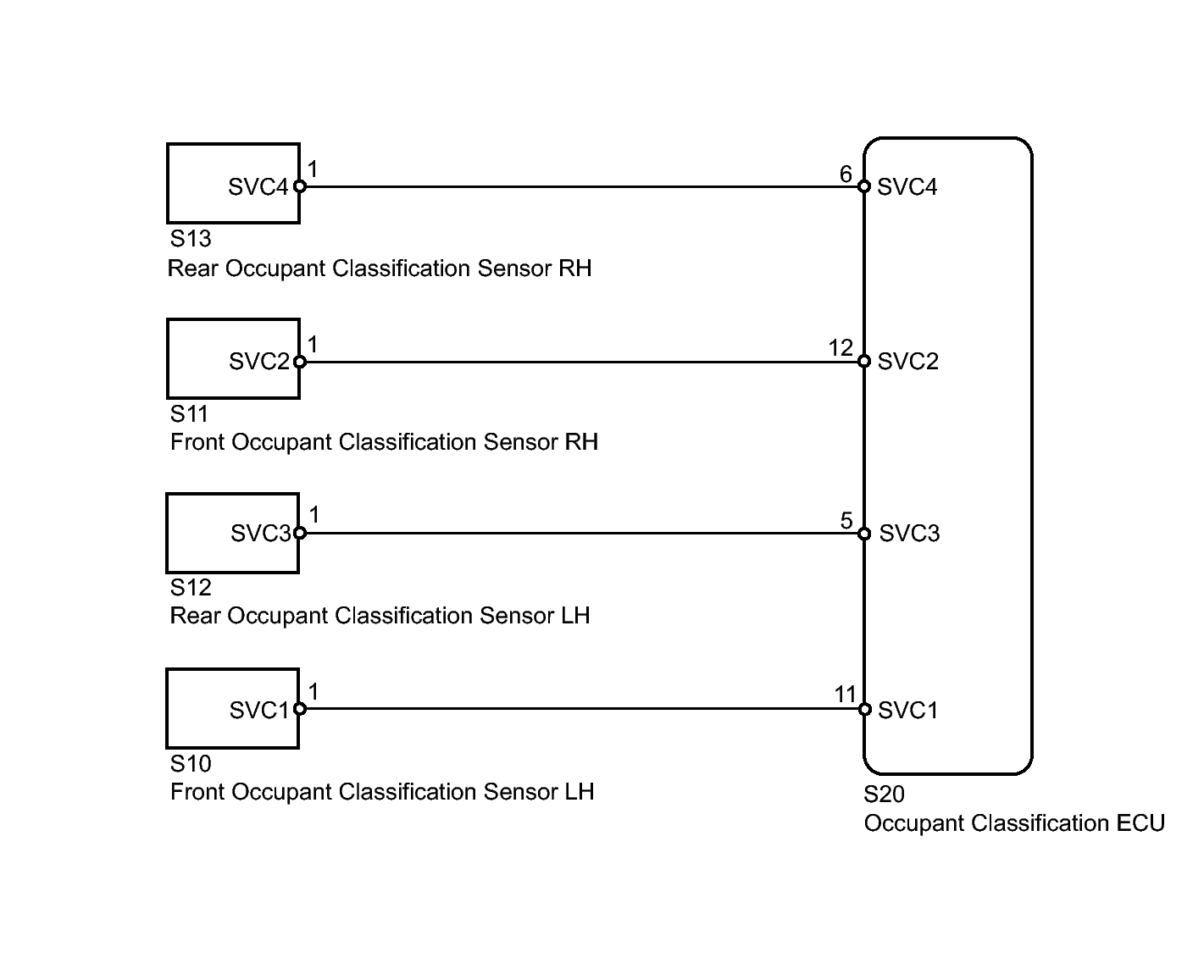

Fig 1: Identifying Occupant Classification Sensor Wiring Diagram
GTY272832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
