RELAY (w/ Headlight Cleaner System): Installation: Installation

  1. INSTALL HEADLIGHT CLEANER CONTROL RELAY

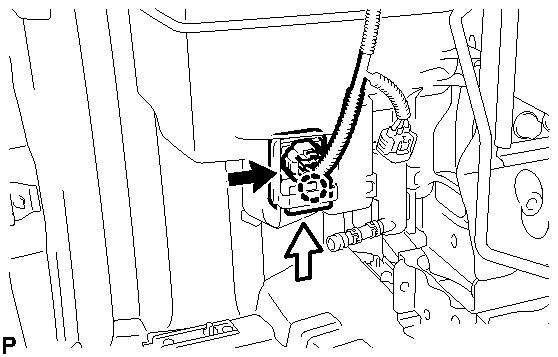

    1. Engage the claw to install the headlight cleaner control relay as shown in the illustration.
      Fig 1: Identifying Headlight Cleaner Control Relay
      GTY256441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY
    1. Install the front bumper assembly. Refer to INSTALLATION .
