Rain Sensor Circuit: Procedure

1. Disconnect the F101 windshield wiper relay assembly connector.
2. Disconnect the P7 rain sensor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F101-8 (SIG) - P7-4 (SIG)	Always	Below 1 Ω
   P7-4 (SIG) - Body ground	Always	10 kΩ or higher
   F101-14 (PA1) - P7-3 (AUTO)	Always	Below 1 Ω
   P7-3 (AUTO) - Body ground	Always	10 kΩ or higher
   F101-25 (E) - P7-1 (ES)	Always	Below 1 Ω
   P7-1 (ES) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the F101 windshield wiper relay assembly connector.

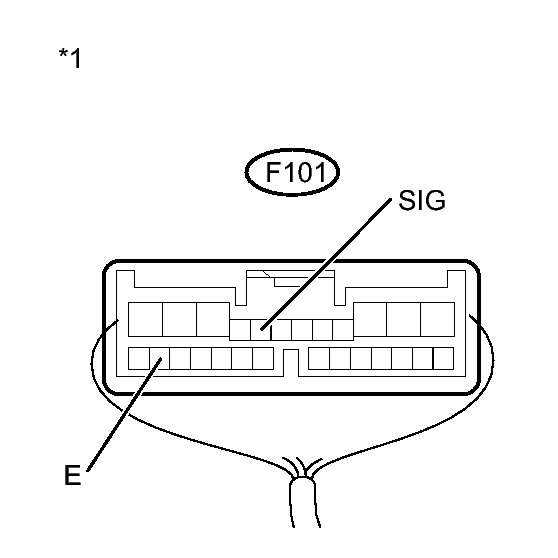

   Fig 1: Identifying F101 Windshield Wiper Relay Assembly Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   F101-8 (SIG) - F101-25 (E)	Power switch on (IG)	7.5 to 8.5 V

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Windshield Wiper Relay Assembly)

NG → See step   6

OK: Go to next step

1. Reconnect the P7 rain sensor connector.

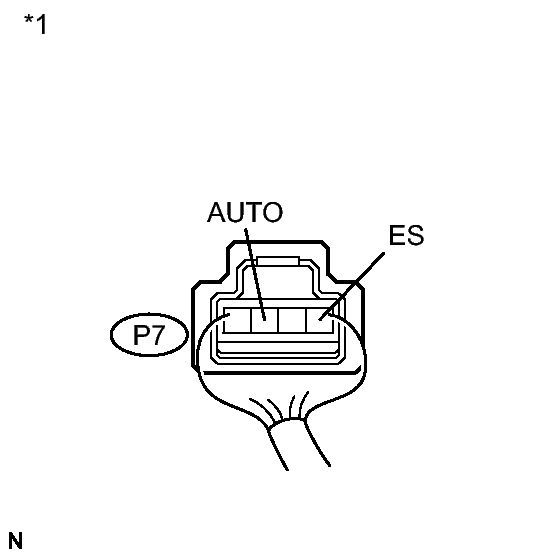

   Fig 2: Identifying P7 Rain Sensor Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect an oscilloscope to the automatic light control sensor connector.
3. Check for pulses.

   OK

   Tester Connection	Condition	Specified Condition
   P7-3 (AUTO) - P7-1 (ES)	Power switch on (IG)	Pulse generation

   TEXT IN ILLUSTRATION



   *1	Component with harness connected (Rain Sensor)

NG → See step   5

OK → See step   4
