DTC B156E, B156B: No Response from Multimedia Interface ECU; Multimedia Interface ECU Disconnected
>>
Wiring Diagram
DTC B156E, B156B: No Response from Multimedia Interface ECU; Multimedia Interface ECU Disconnected: Wiring Diagram

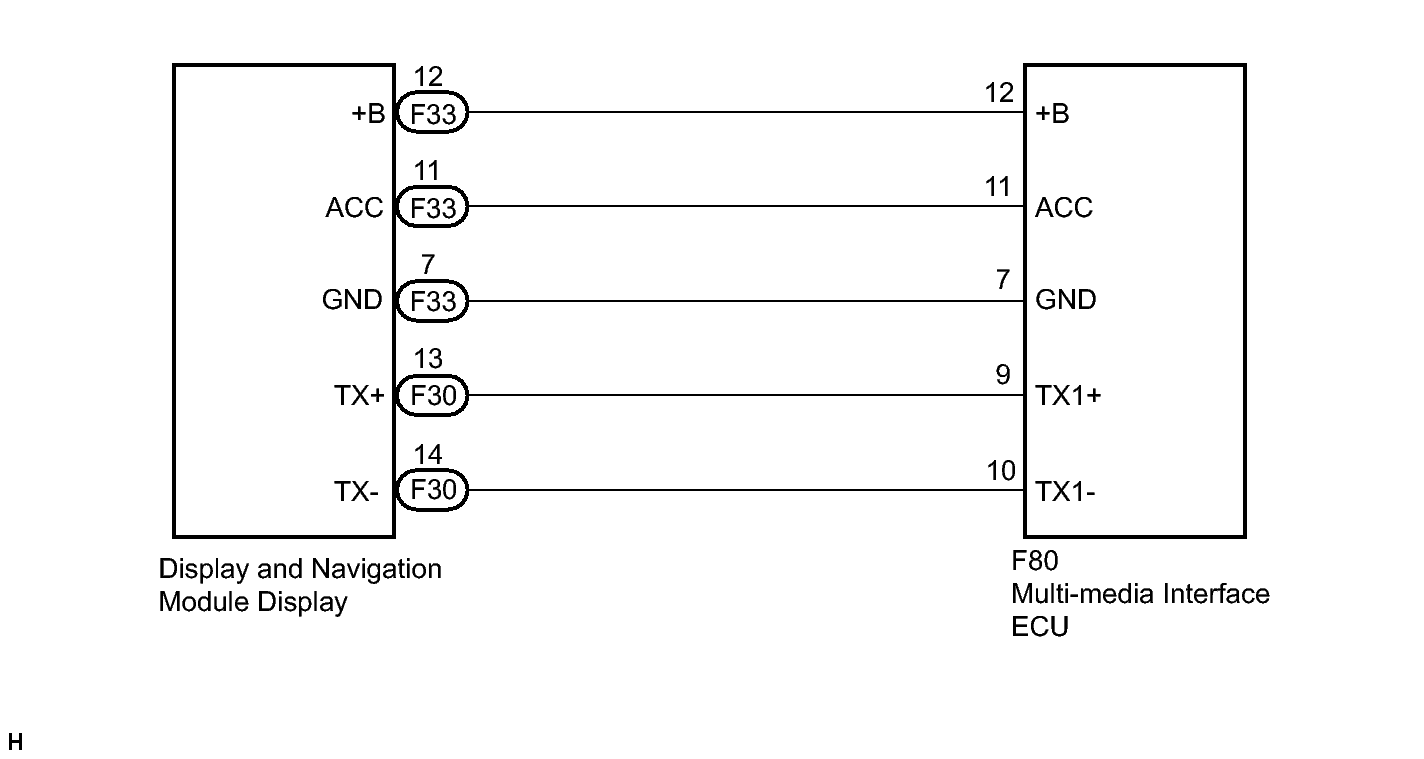

Fig 1: Display And Navigation Module Display - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
