Shift Lever: Components: Illustration

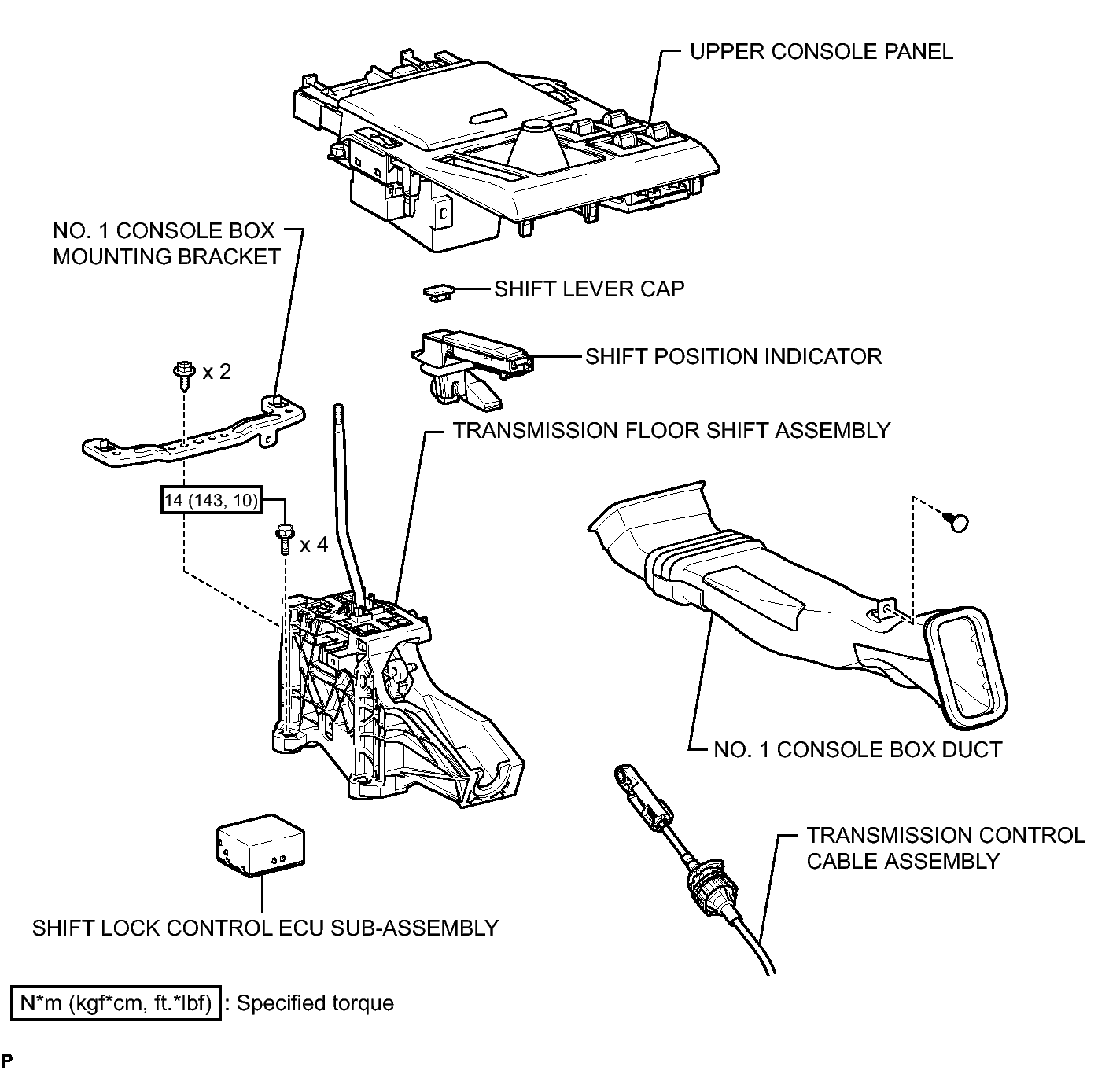

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications

GTY257128

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
