Absorber Control Actuator: Components: Illustration

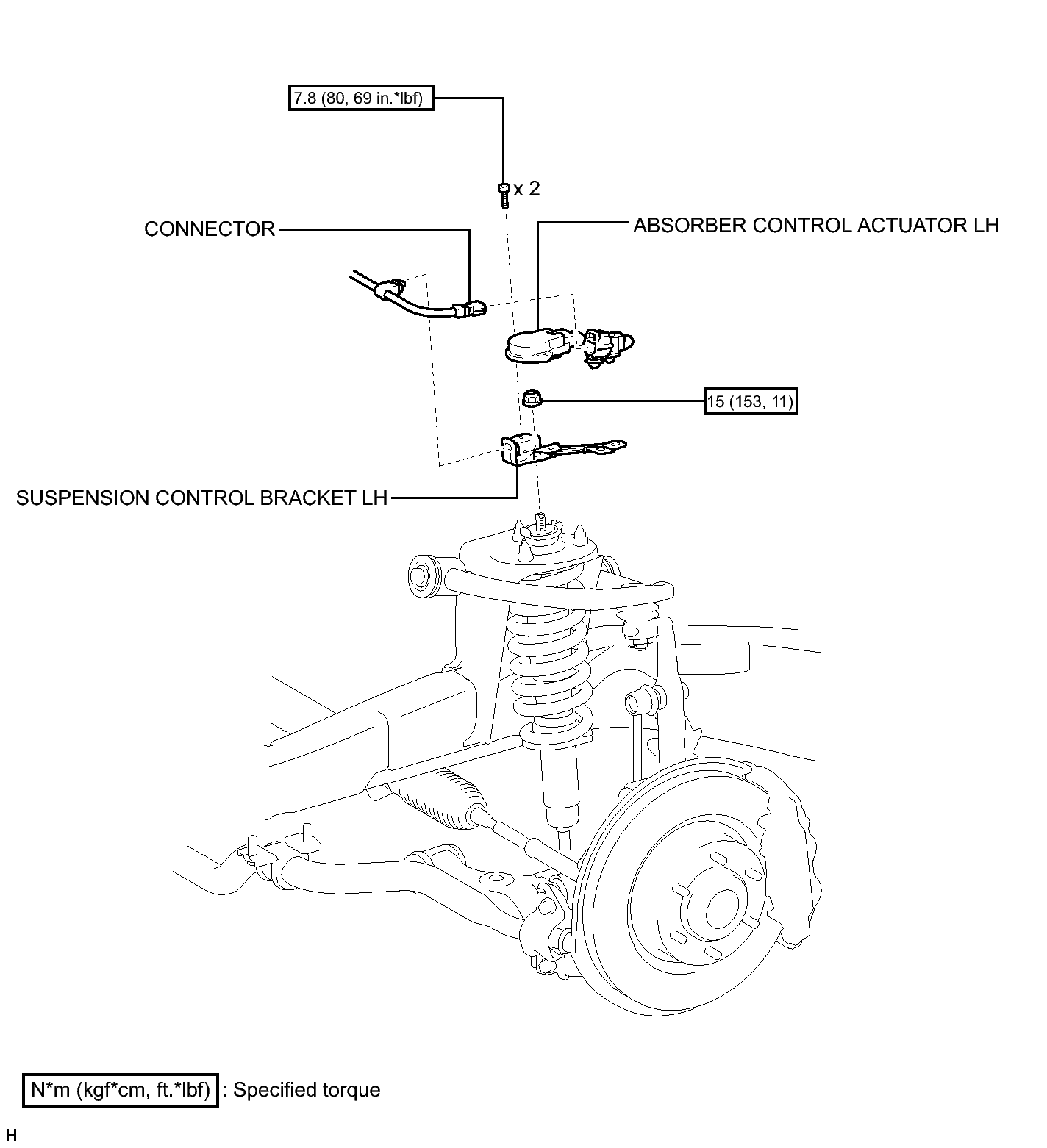

Fig 1: Identifying Absorber Control Actuator Replacement Components With Torque Specifications

GTY255517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
