Fuel Tank: Components: Illustration

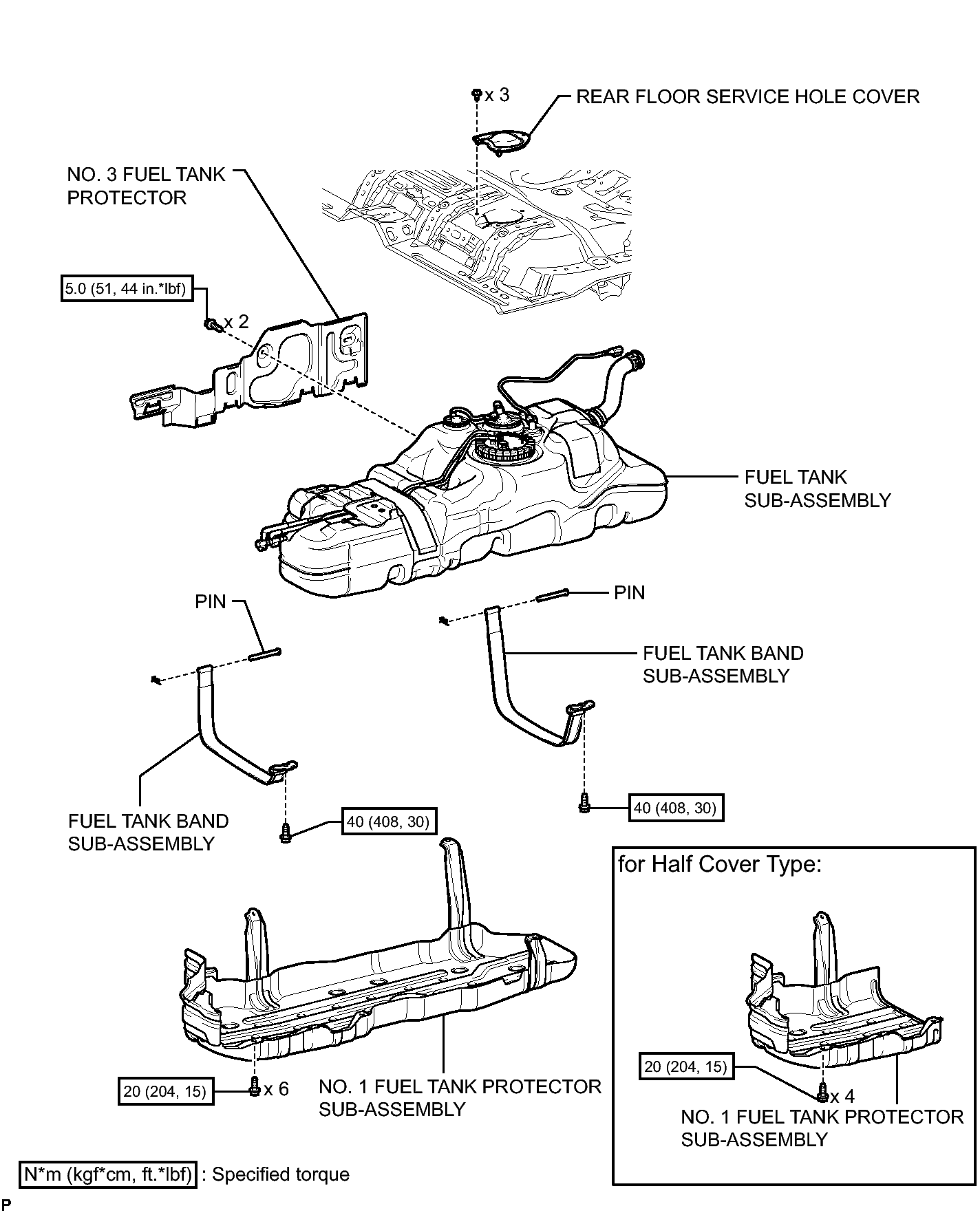

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
GTY211344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

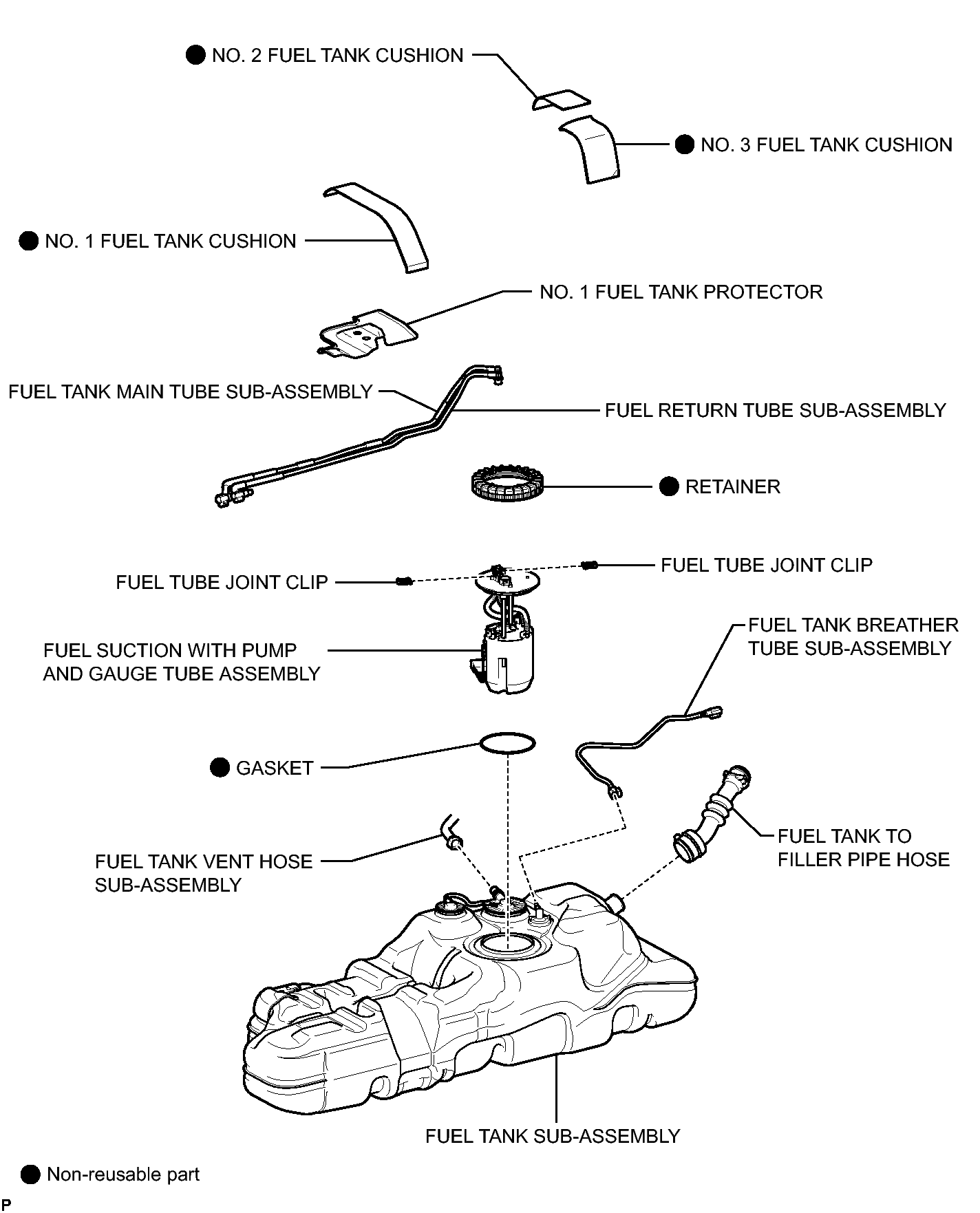

Fig 1: Identifying Fuel Tank Replacement Components (2 Of 2)
GTY282989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
