Fuel Pressure Regulator: Components: Illustration

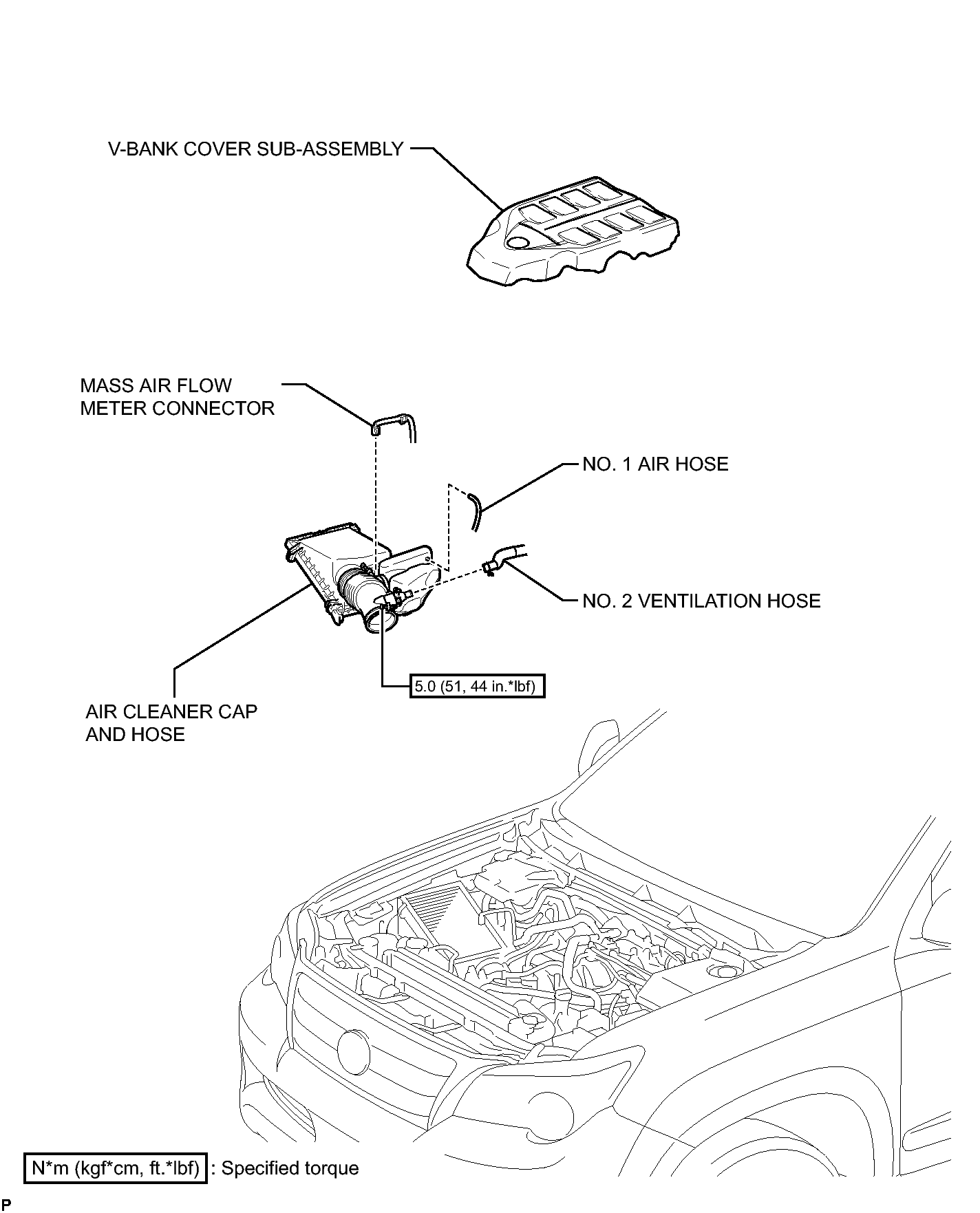

Fig 1: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications (1 Of 2)
GTY282030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

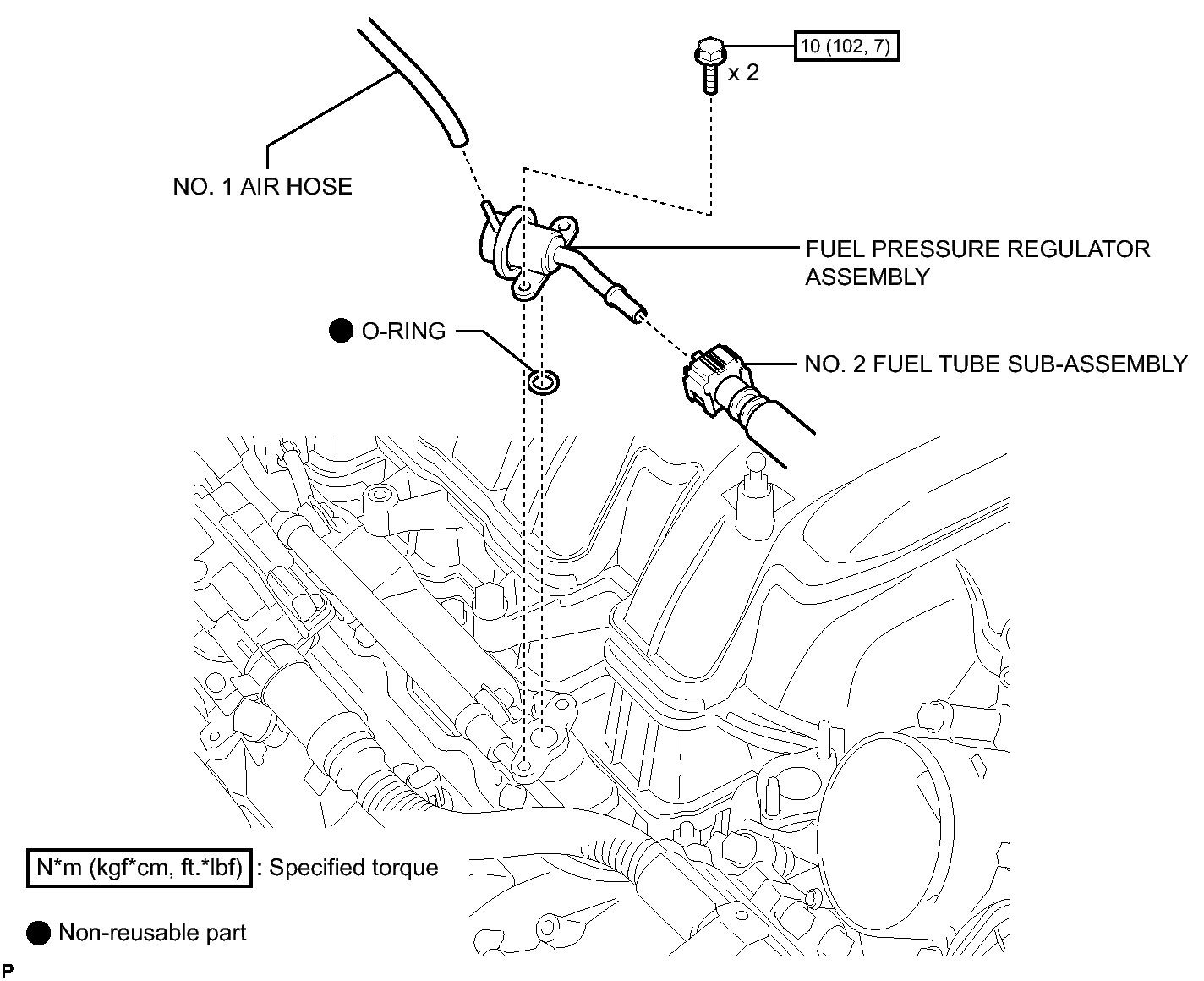

Fig 1: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications (2 Of 2)
GTY268666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
