Seat Heater (Rear): Notes

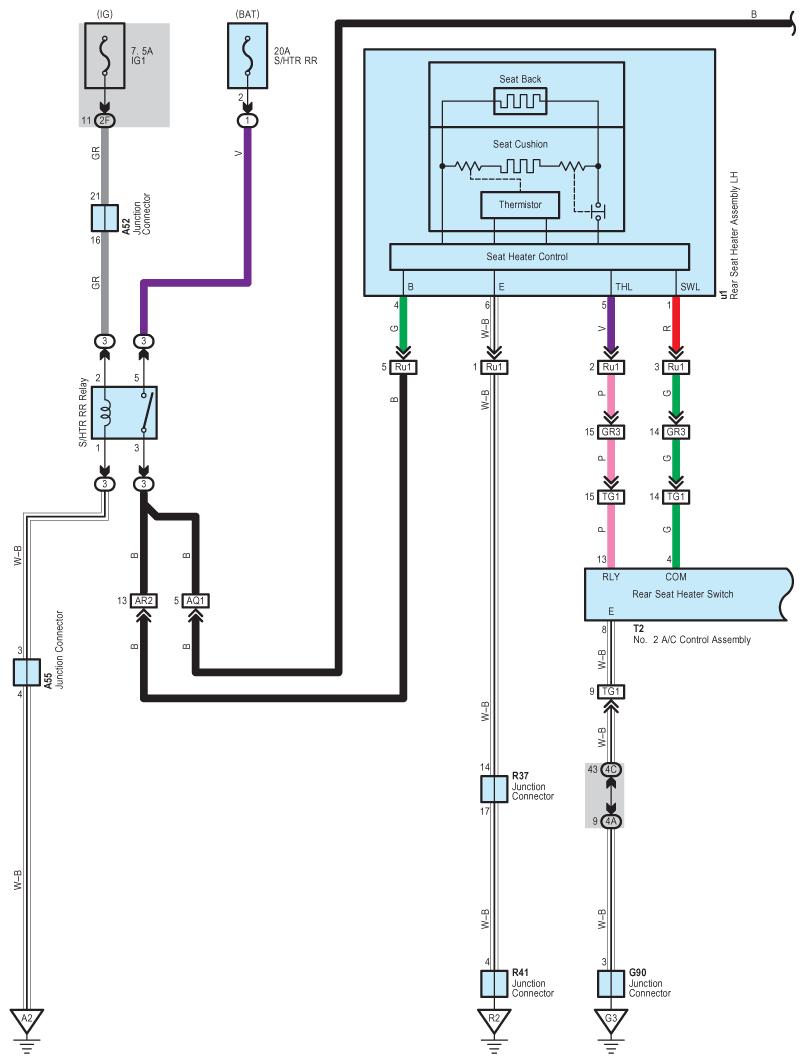

Fig 1: Seat Heater (Rear) - Wiring Diagram (1 Of 2)
G08931094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

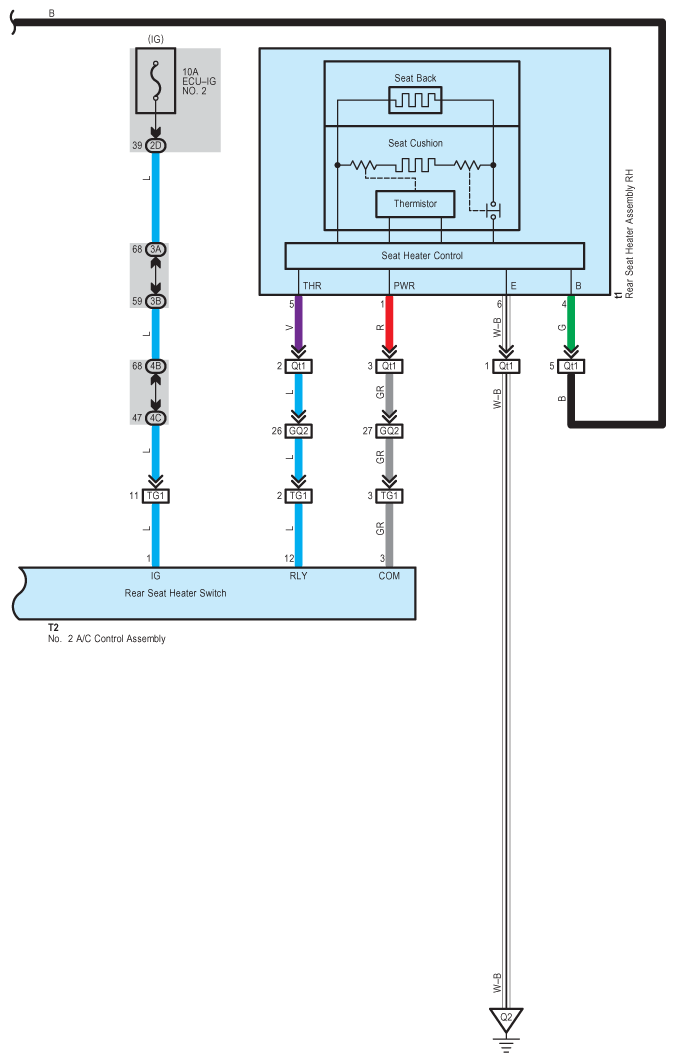

Fig 2: Seat Heater (Rear) - Wiring Diagram (2 Of 2)
G08931095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
