Power Outlet (12V): Notes

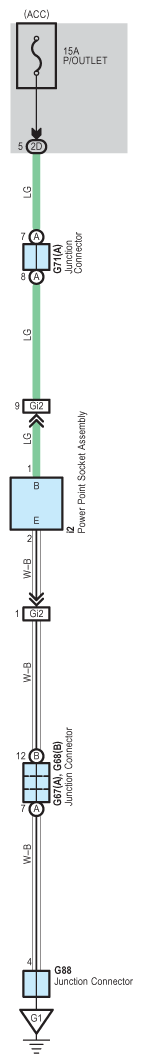

Fig 1: Power Outlet (12V) - Wiring Diagram

G08931106

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
