Dynamic Radar Cruise Control and Lane Departure Alert: Notes

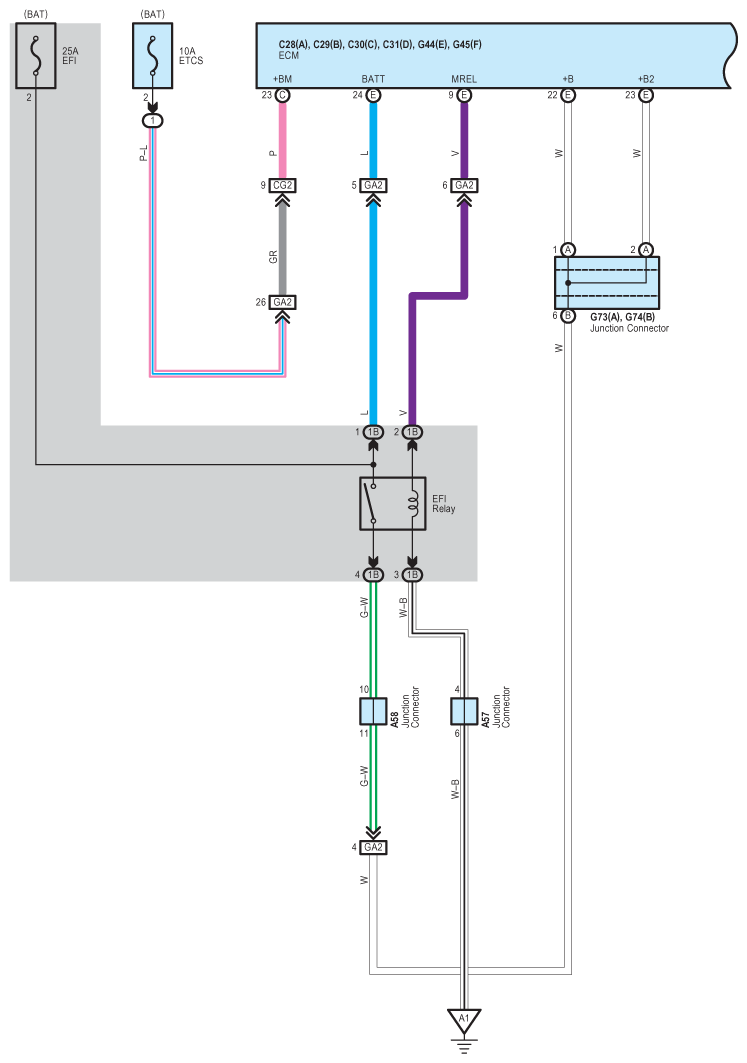

Fig 1: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (1 Of 22)

G08930976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

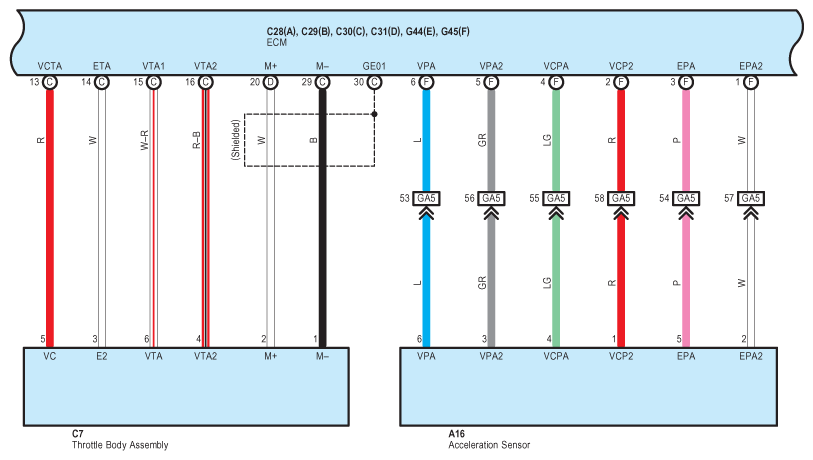

Fig 2: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (2 Of 22)

G08930977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

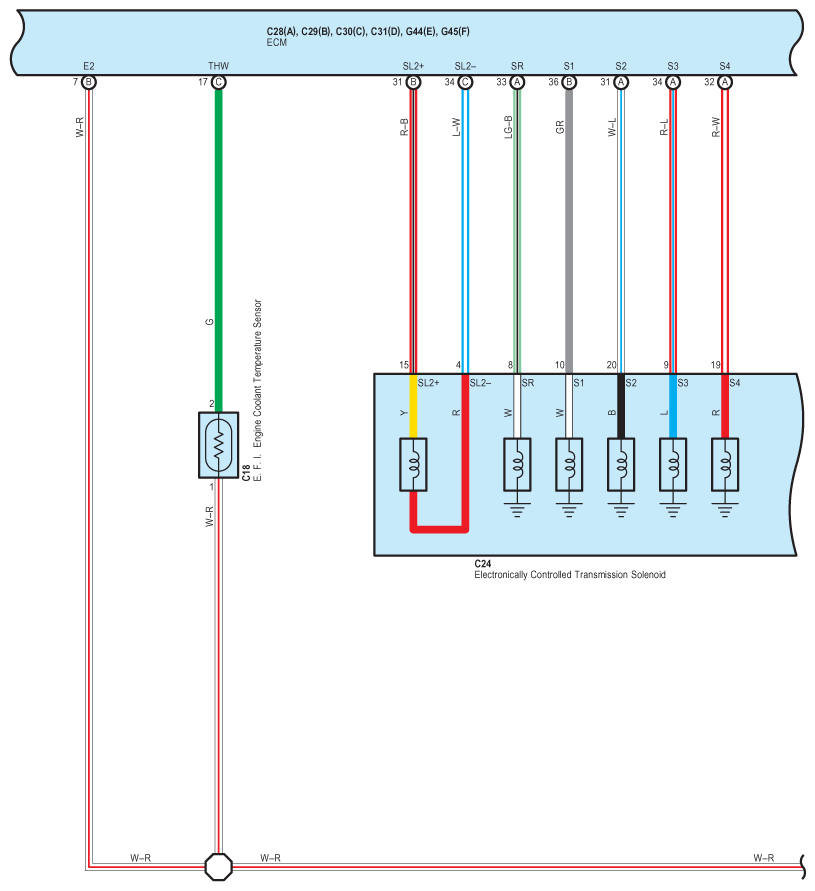

Fig 3: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (3 Of 22)

G08930978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

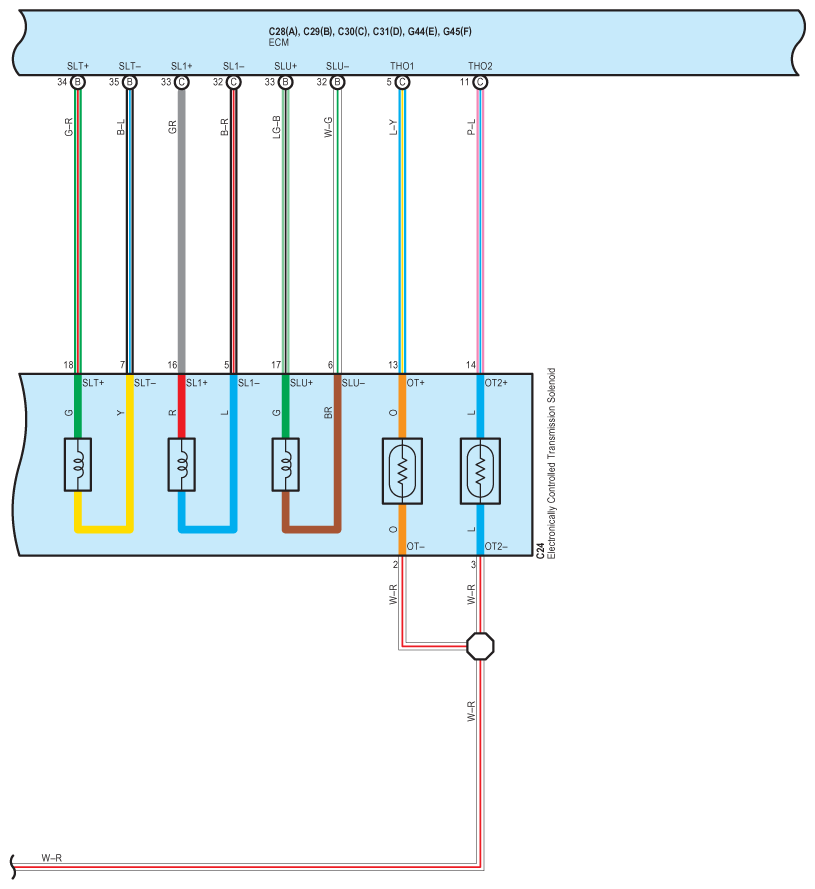

Fig 4: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (4 Of 22)

G08930979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

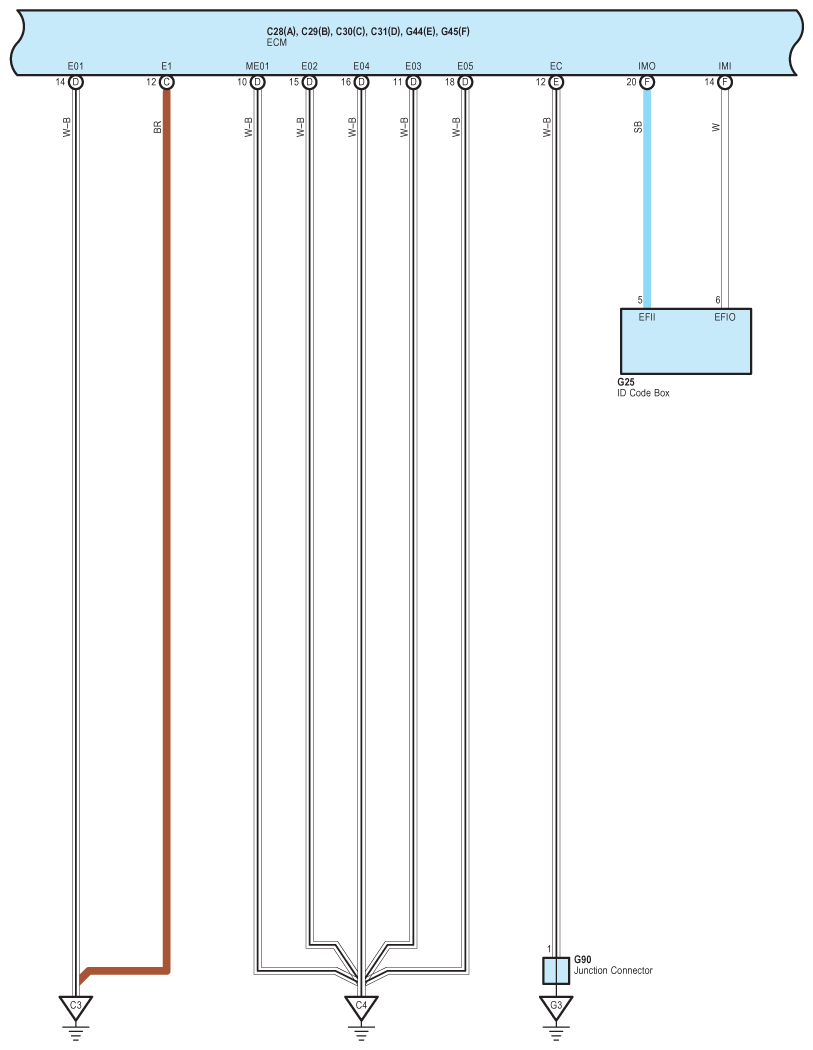

Fig 5: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (5 Of 22)

G08930980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

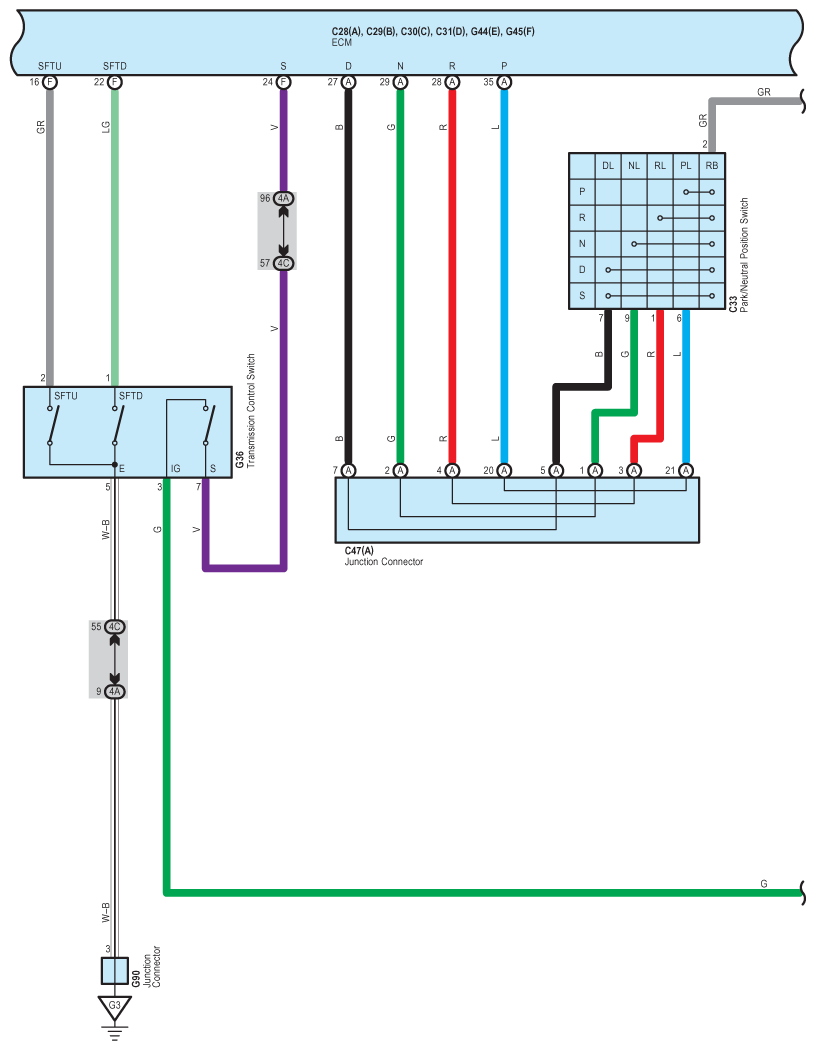

Fig 6: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (6 Of 22)

G08930981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

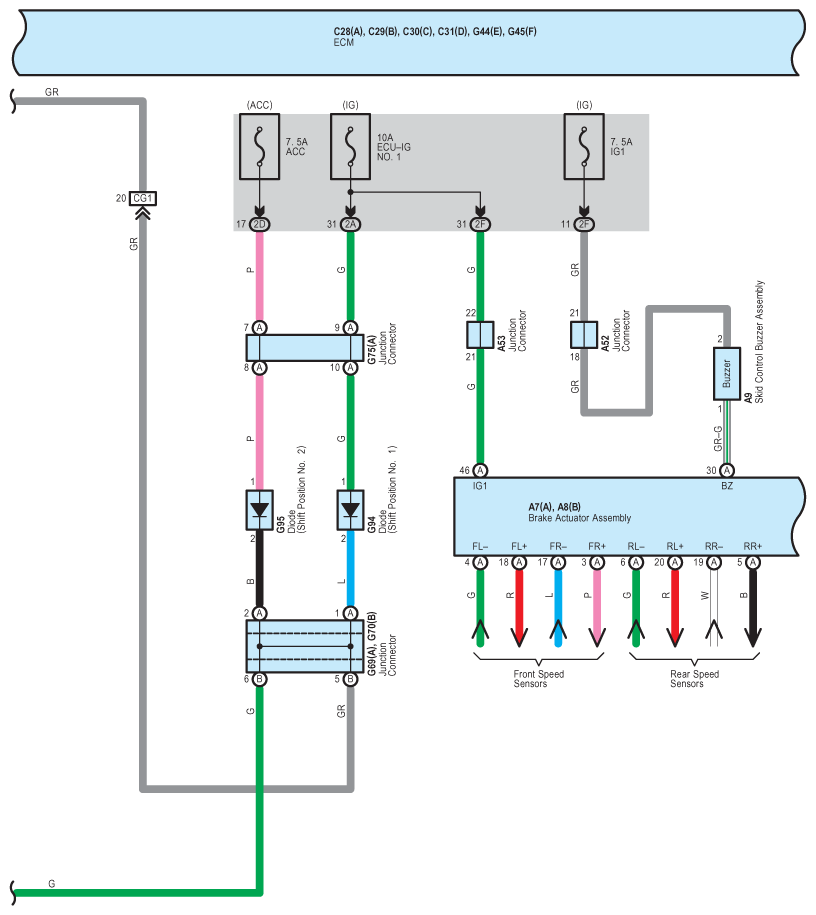

Fig 7: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (7 Of 22)

G08930982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

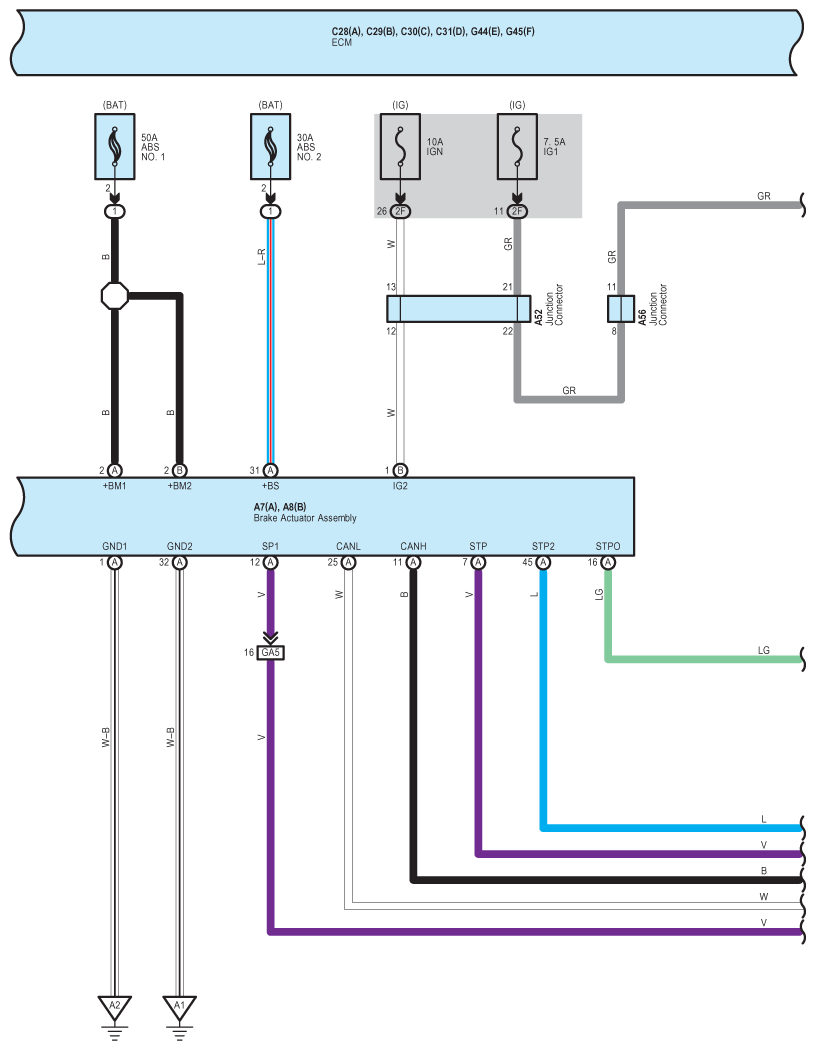

Fig 8: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (8 Of 22)

G08930983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

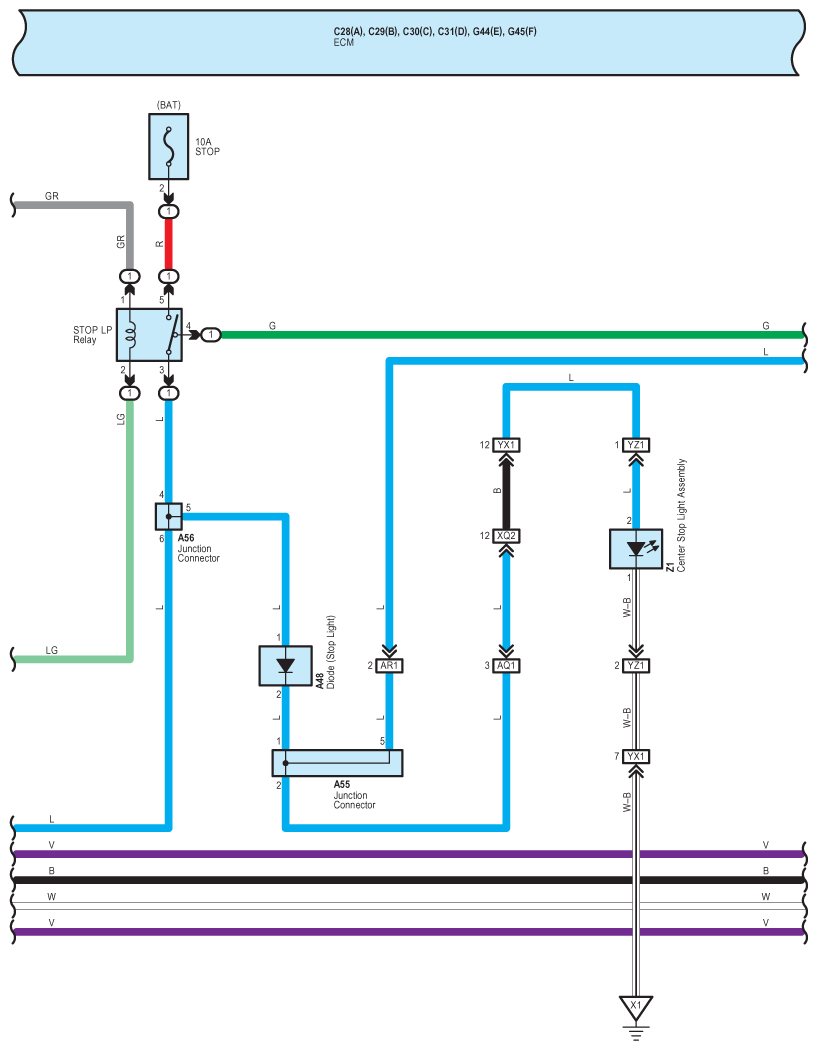

Fig 9: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (9 Of 22)

G08930984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

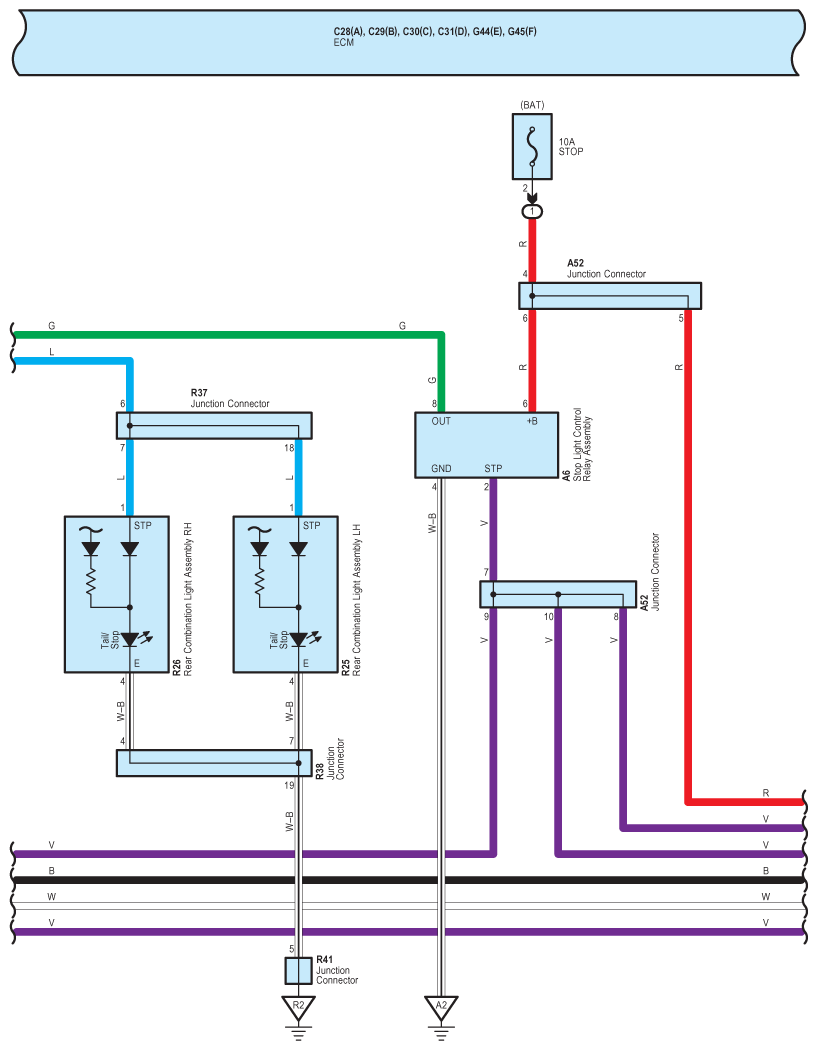

Fig 10: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (10 Of 22)

G08930985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

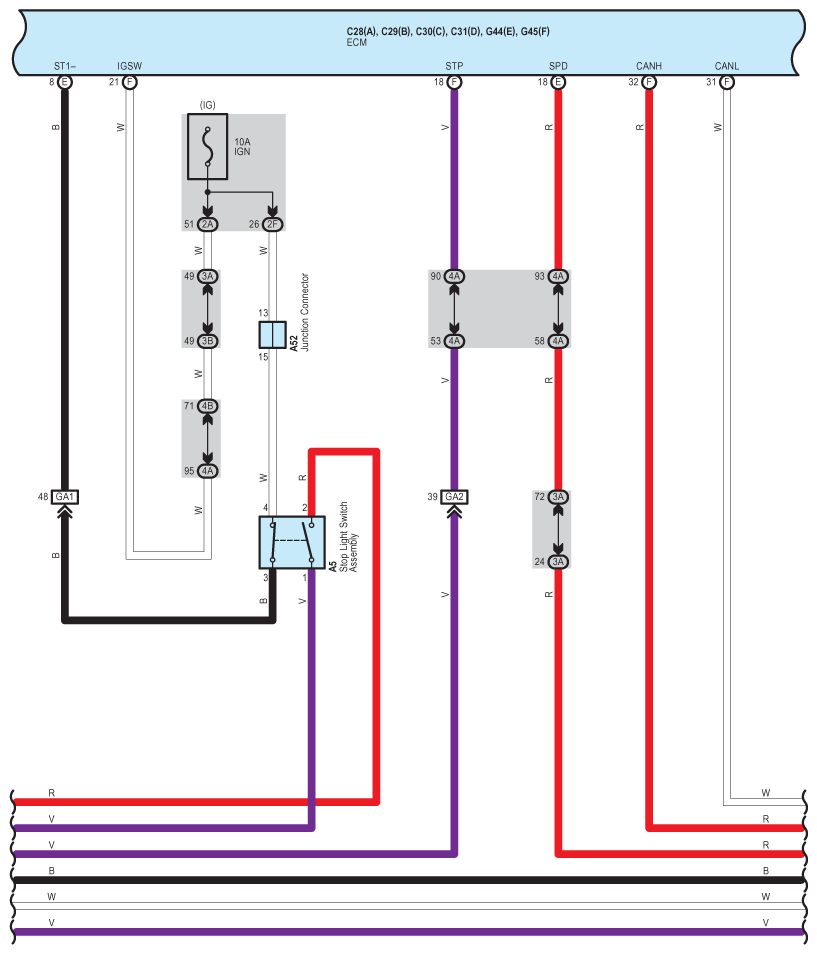

Fig 11: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (11 Of 22)

G08930986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

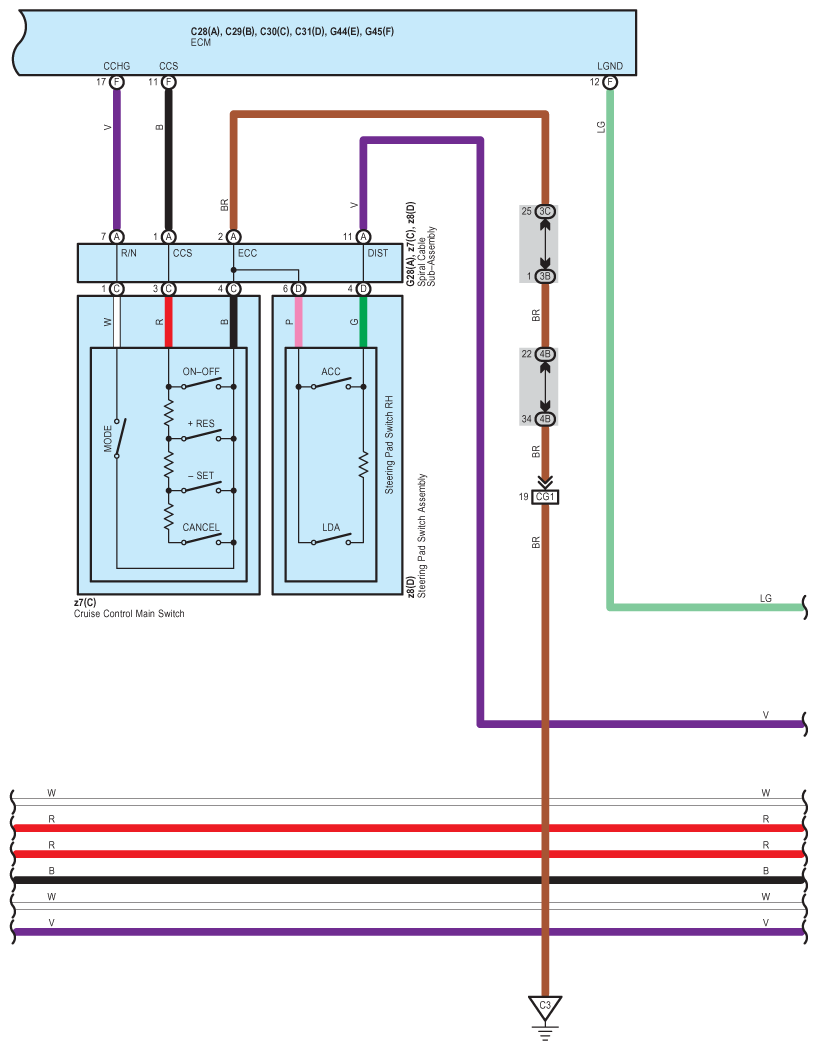

Fig 12: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (12 Of 22)

G08930987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

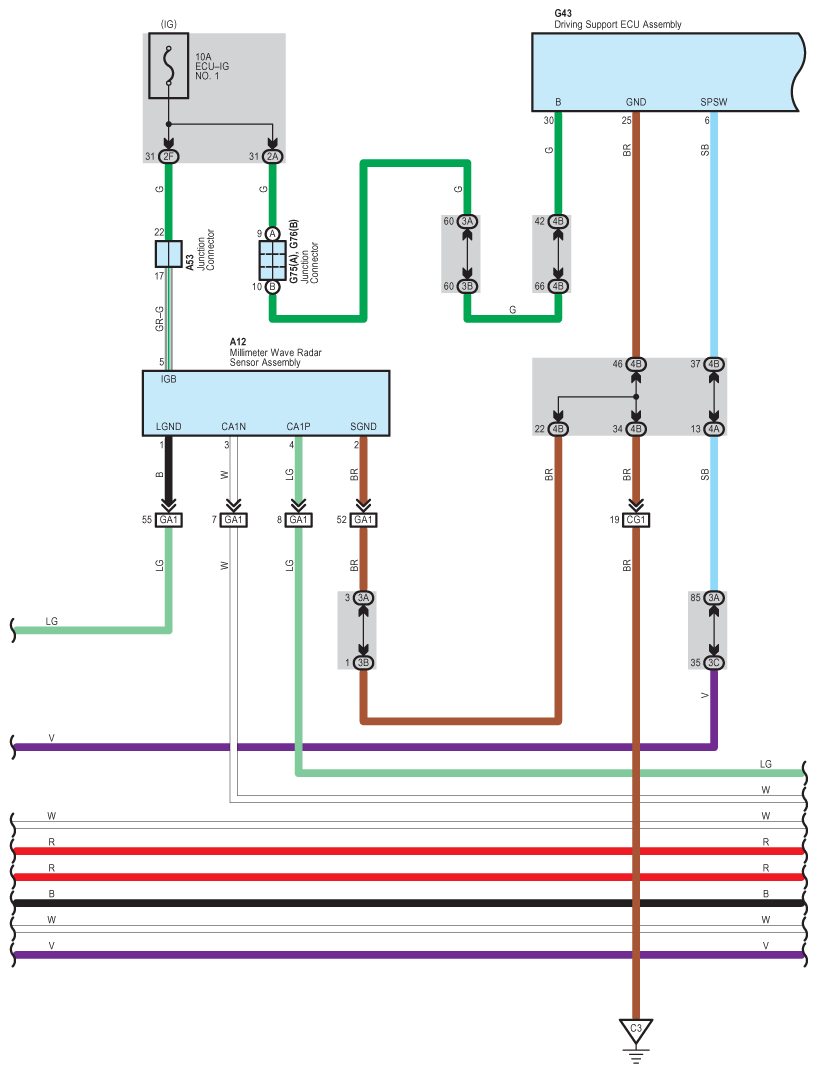

Fig 13: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (13 Of 22)

G08930988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

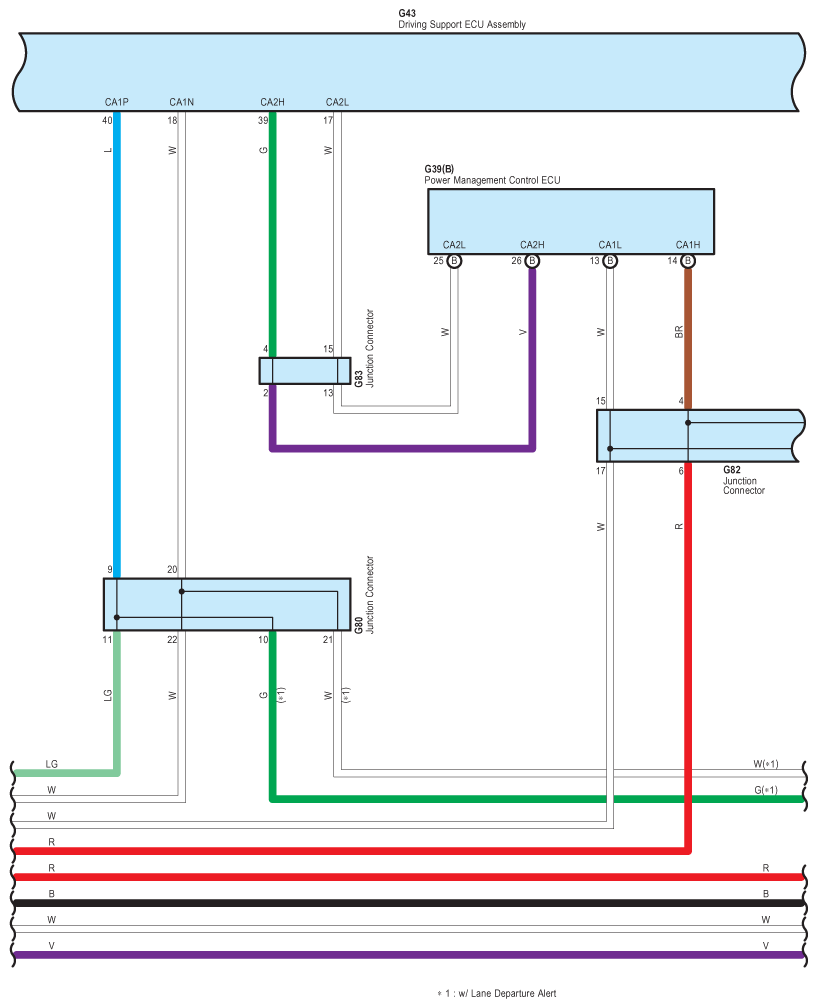

Fig 14: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (14 Of 22)

G08930989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

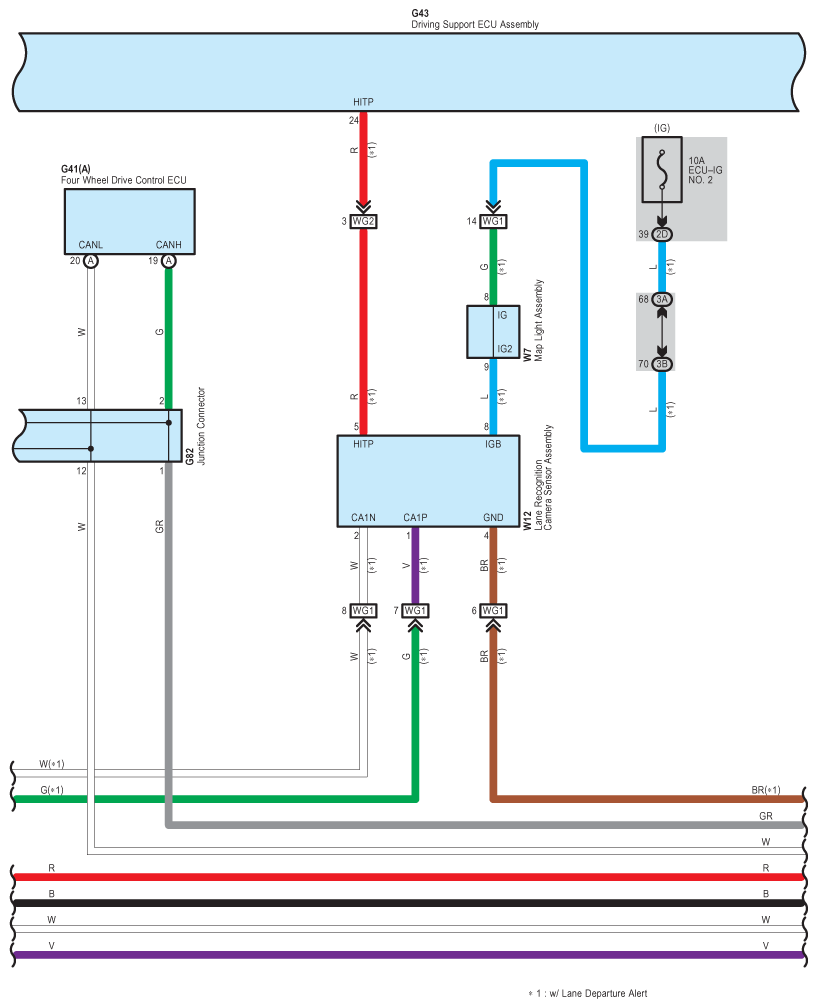

Fig 15: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (15 Of 22)

G08930990

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

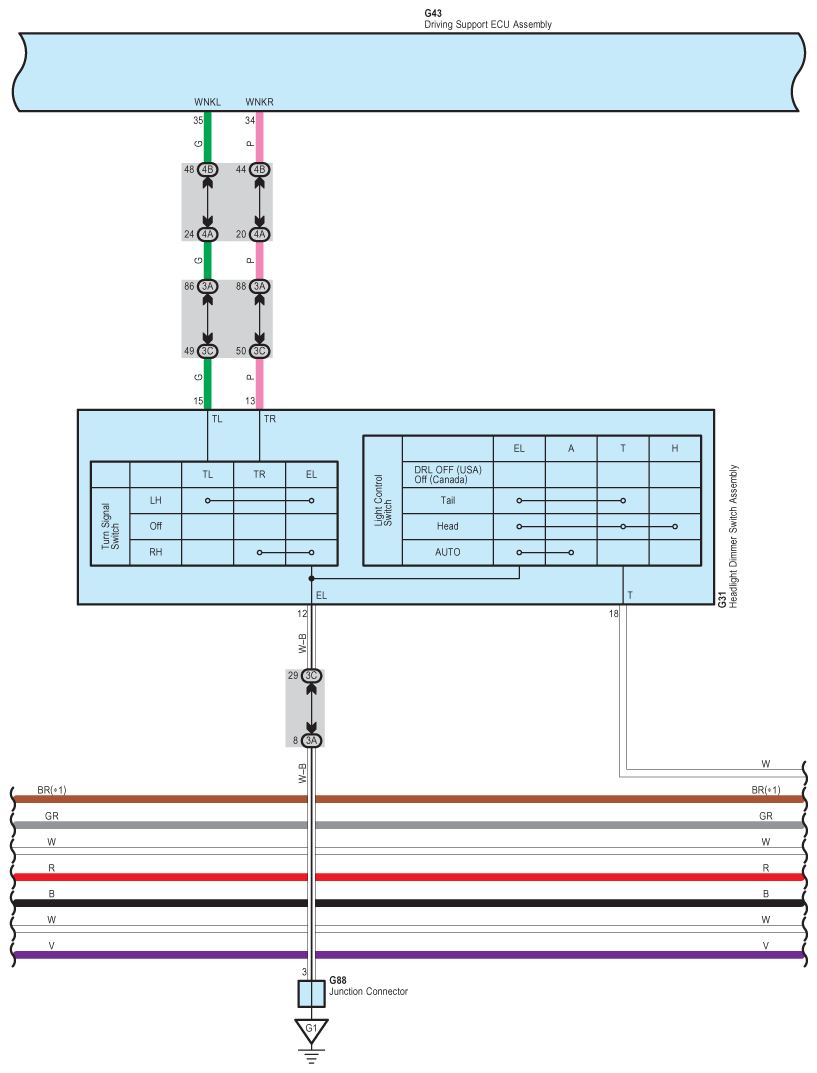

Fig 16: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (16 Of 22)

G08930991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

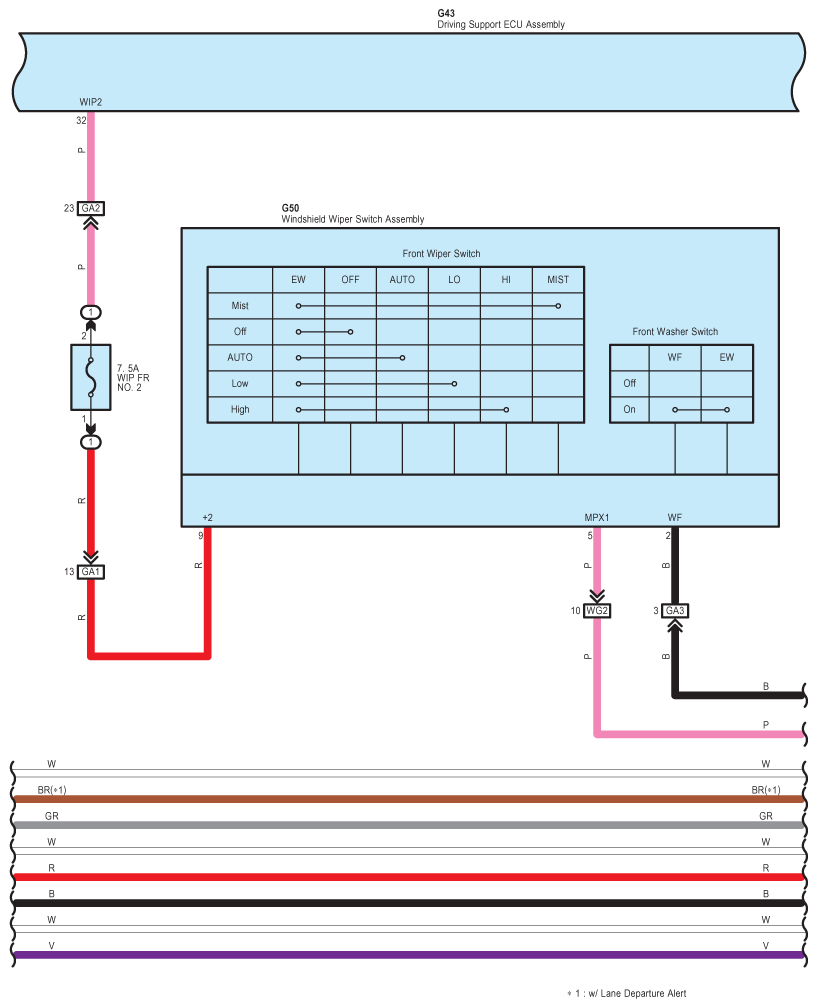

Fig 17: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (17 Of 22)

G08930992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

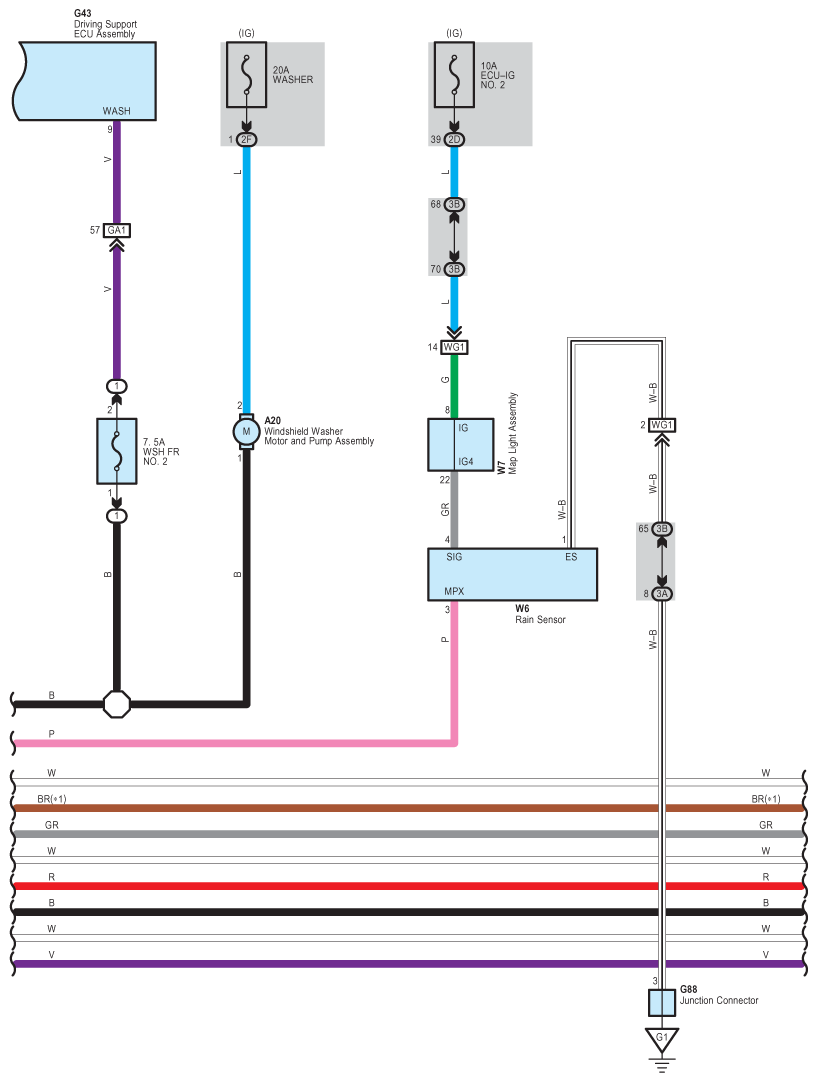

Fig 18: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (18 Of 22)

G08930993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

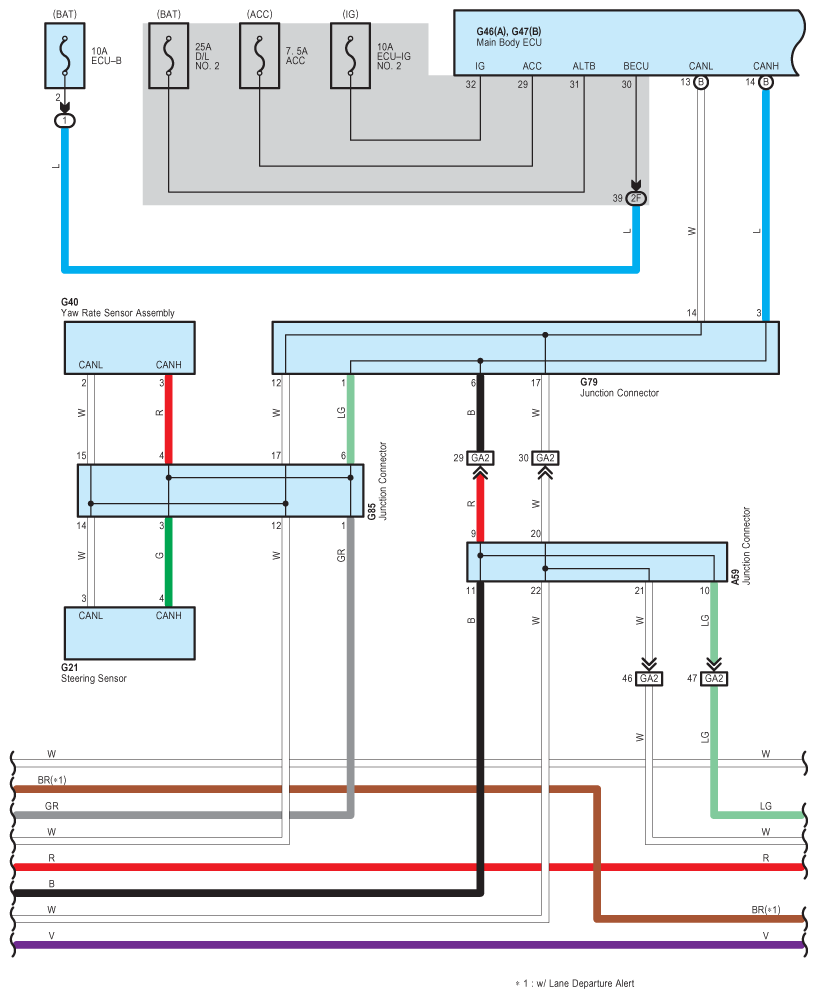

Fig 19: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (19 Of 22)

G08930994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

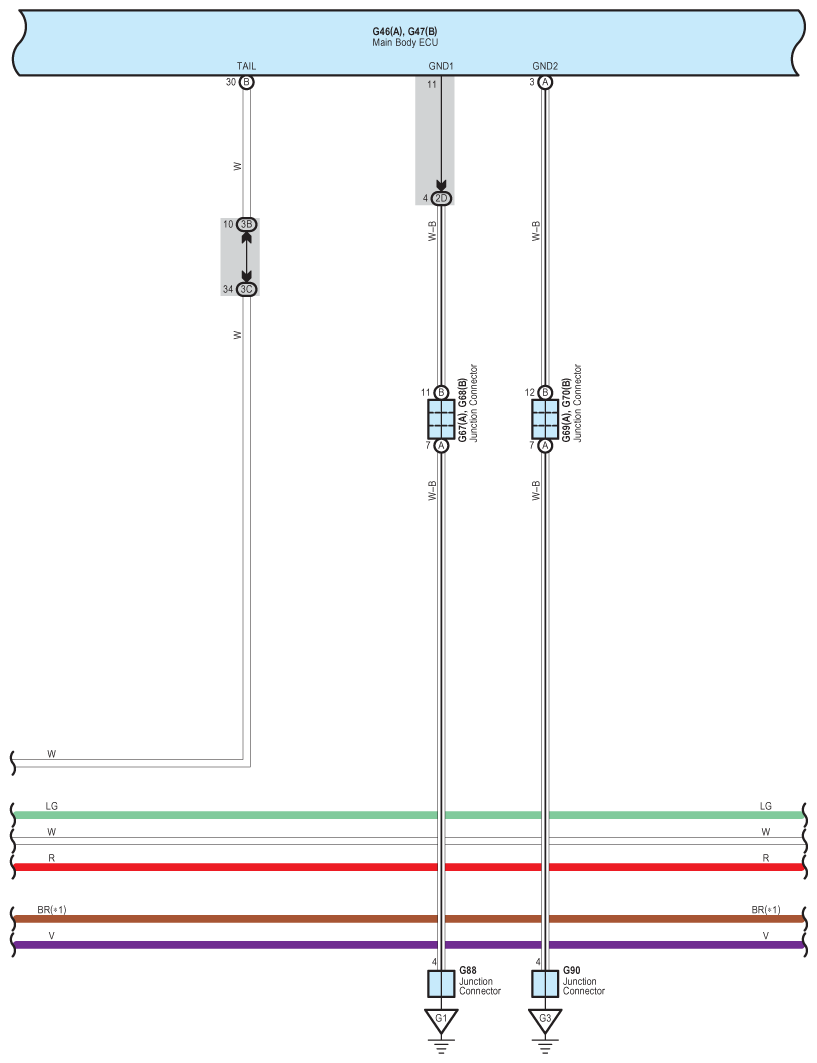

Fig 20: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (20 Of 22)

G08930995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

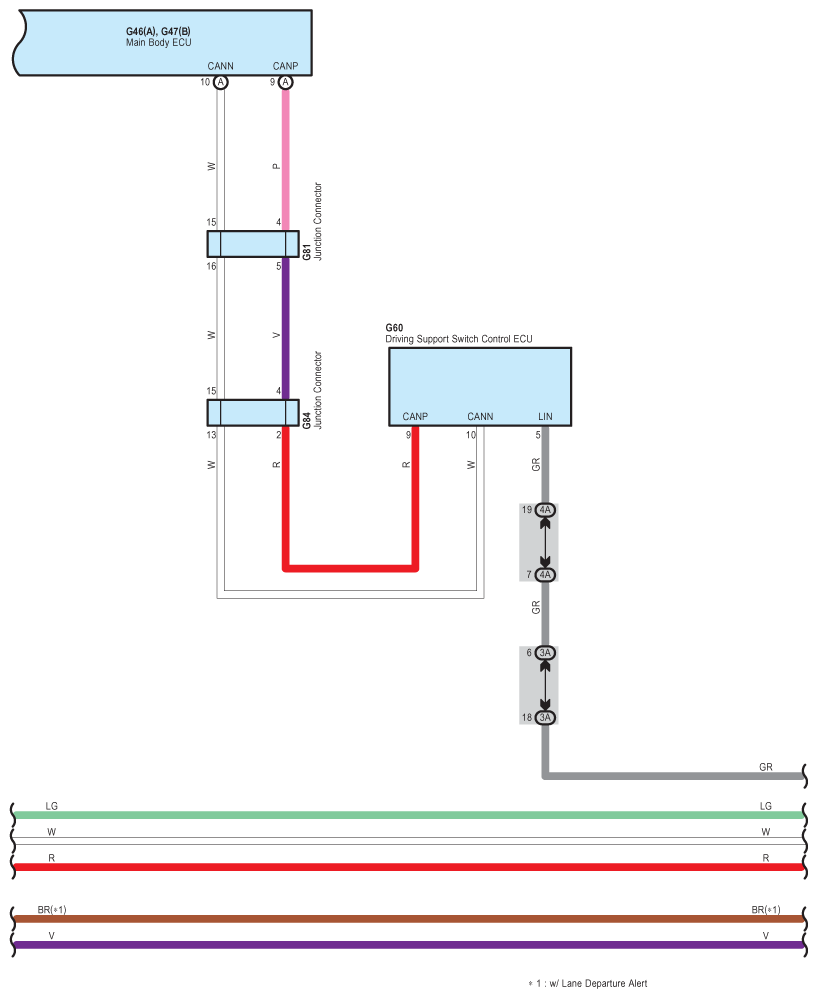

Fig 21: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (21 Of 22)

G08930996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

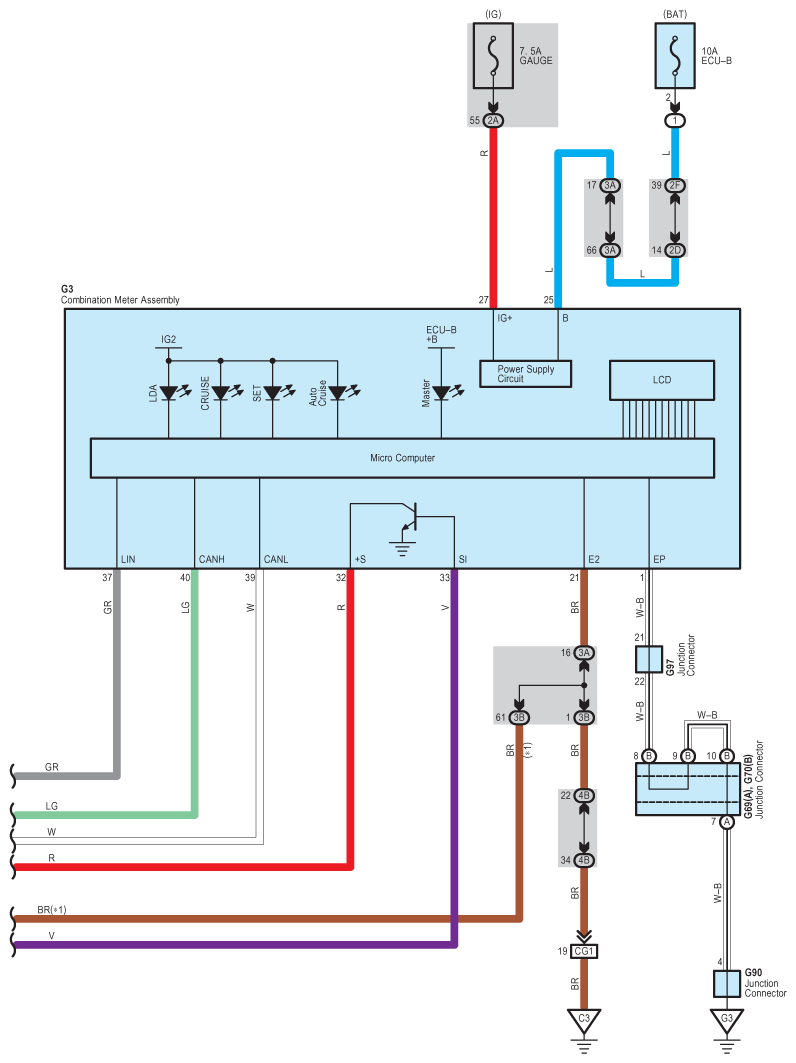

Fig 22: Dynamic Radar Cruise Control And Lane Departure Alert - Wiring Diagram (22 Of 22)

G08930997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
