Back Window Stay: Components: Illustration

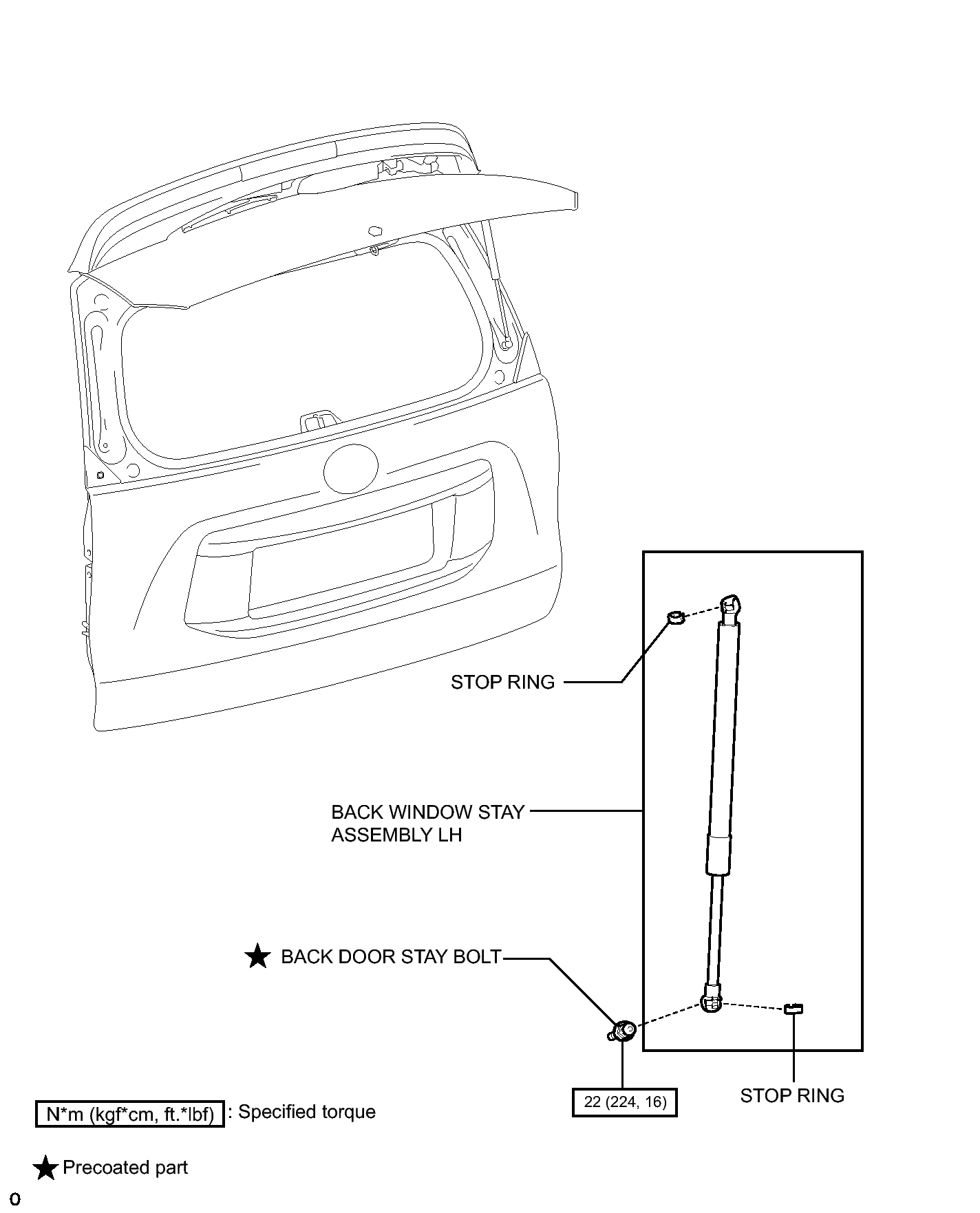

Fig 1: Identifying Back Window Stay Replacement Components With Torque Specifications

GTY259779

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
