  1. INSPECT SEAT MEMORY SWITCH

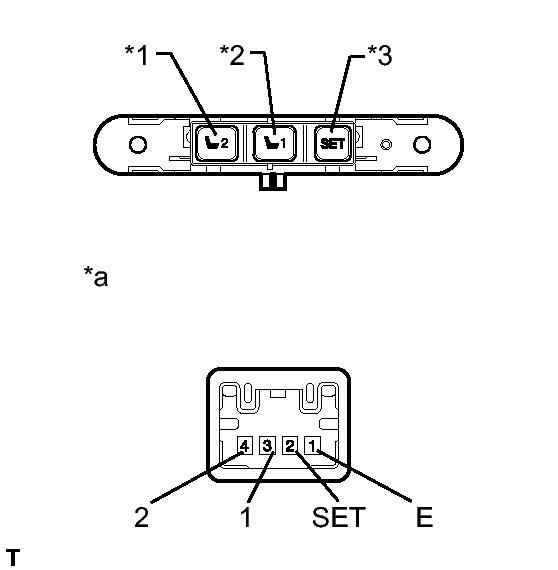

    Fig 1: Identifying Seat Memory Switch
    GTY393549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      3 (1) - 1 (E) 1 switch pressed Below 1 Ω
      4 (2) - 1 (E) 2 switch pressed
      2 (SET) - 1 (E) SET switch pressed

      If the result is not as specified, replace the seat memory switch.

      TEXT IN ILLUSTRATION

      *1 2 Switch
      *2 1 Switch
      *3 SET Switch
      *a Component without harness connected
      (Seat Memory Switch)
