Control Valve Assembly: Components: Illustration

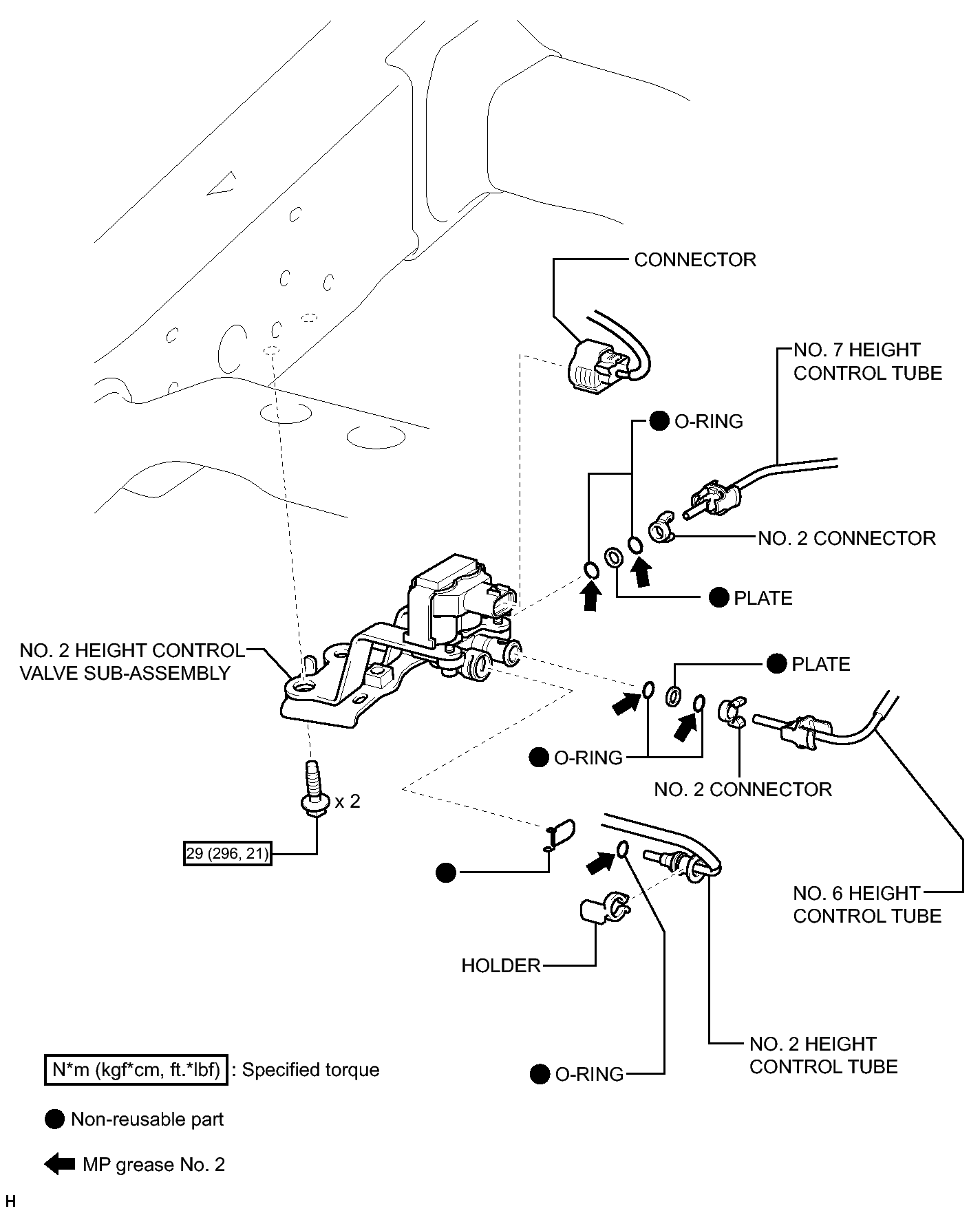

Fig 1: Identifying Control Valve Assembly Replacement Components With Torque Specifications

GTY270298

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
