Hybrid Battery Control System (Service Information)
>>
Sub Radiator
>>
Components
>>
Illustration
Sub Radiator: Components: Illustration

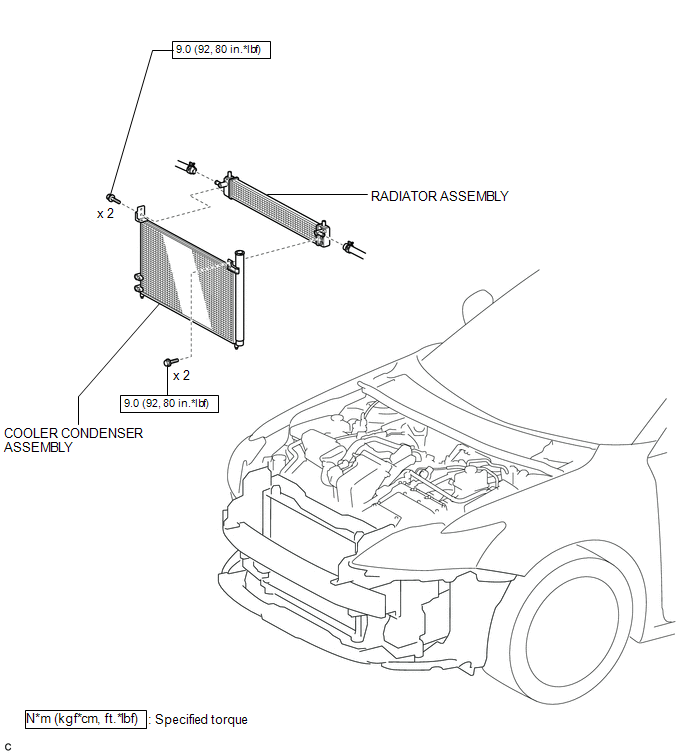

Fig 1: Identifying Sub Radiator Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
