Accelerator Pedal Sensor: Components: Illustration

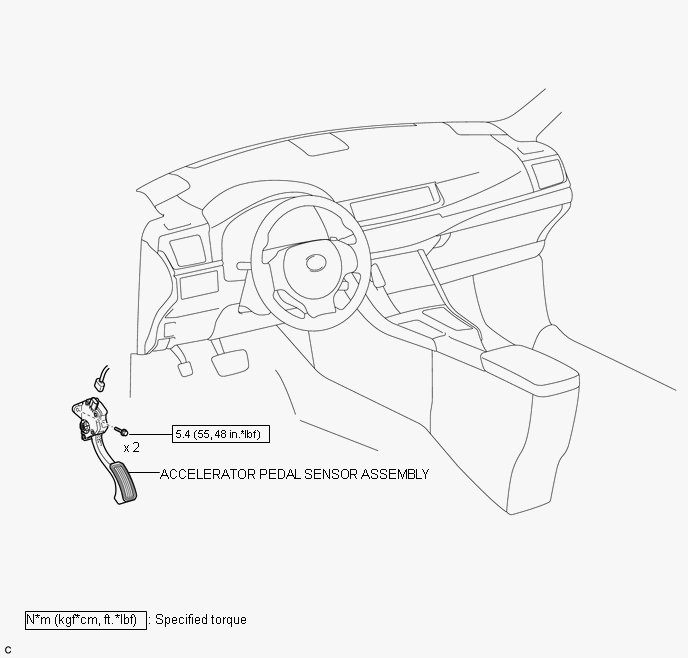

Fig 1: Identifying Accelerator Pedal Sensor Replacement Components With Torque Specifications

GTY357651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
