Certification Ecu: Installation: Installation
- INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

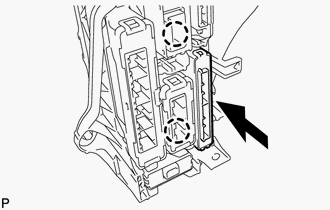

- Engage the 2 claws and install the certification ECU (smart key ECU assembly).
- INSTALL ECU INTEGRATION BOX RH . Refer to INSTALLATION - Step 2
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 22
- INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 26
- INSTALL INSTRUMENT SIDE PANEL RH . Refer to INSTALLATION - Step 27
- INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH . Refer to INSTALLATION - Step 52
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 43 .
- INSTALL FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 44 .
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE . Refer to INSTALLATION - Step 70
- INSTALL DECK FLOOR BOX RH . Refer to INSTALLATION - Step 71
- INSTALL REAR NO. 3 FLOOR BOARD . Refer to INSTALLATION - Step 72
- INSTALL REAR DECK FLOOR BOX . Refer to INSTALLATION - Step 73
- INSTALL REAR NO. 2 FLOOR BOARD . Refer to INSTALLATION - Step 74
- REGISTER KEY NOTE:
If the certification ECU (smart key ECU assembly) is replaced, register all the keys. Refer to REGISTRATION .
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
