Back Door Lock: Components: Illustration

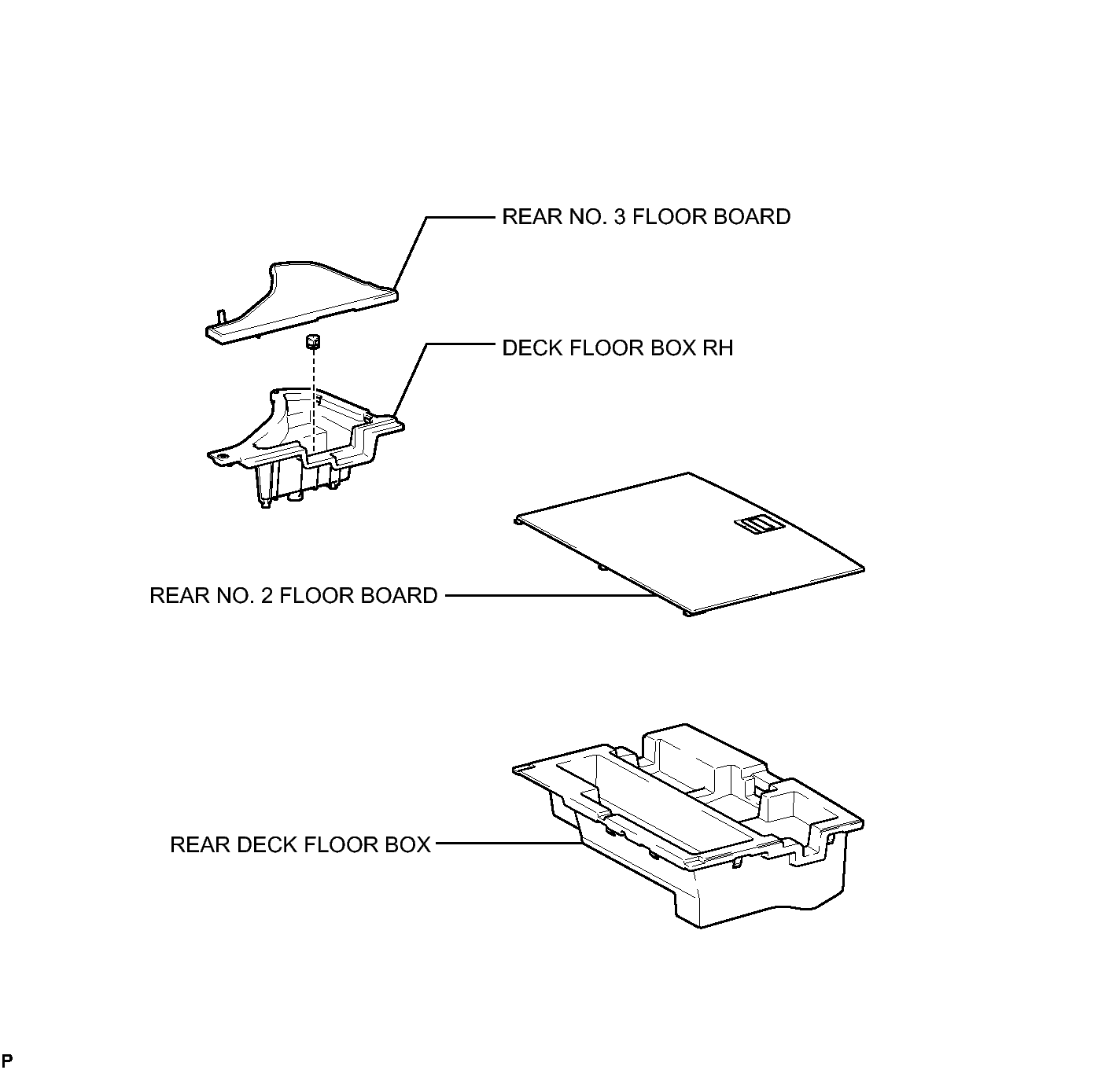

Fig 1: Identifying Back Door Lock Replacement Components (1 Of 2)
GTY352832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

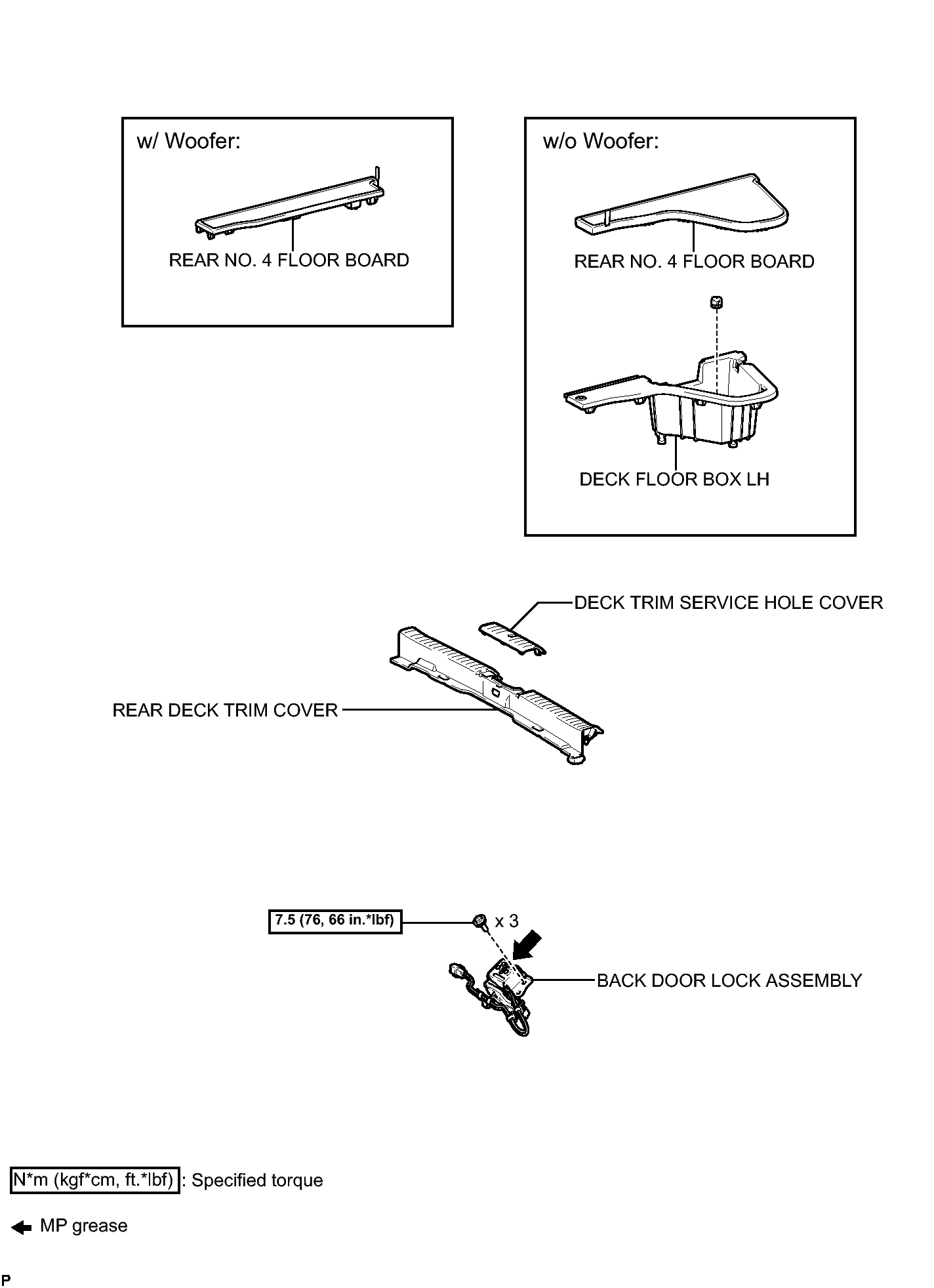

Fig 1: Identifying Back Door Lock Replacement Components With Torque Specifications (2 Of 2)
GTY359570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
