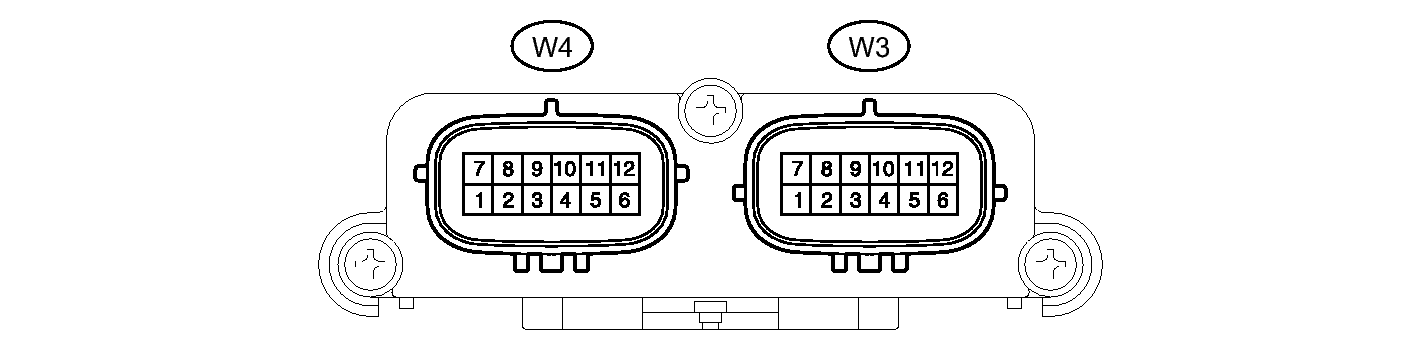

| W4-1 (+B) - W4-3 (GND) |
W - W-B |
Auxiliary battery |
Always |
11 to 14 V |
| W4-2 (DIA) - W4-3 (GND) |
GR - W-B |
Diagnosis (DLC3) |
Power switch on (IG) |
Pulse generation |
| W4-3 (GND) - Body ground |
W-B - Body ground |
Ground |
Always |
Below 1 V |
| W4-4 (FSR-) - W4-3 (GND) |
LG - W-B |
Airbag sensor assembly communication line |
Always |
Below 1 V |
| W4-5 (BGND) - W4-3 (GND) |
P - W-B |
Passenger side buckle switch ground line |
Always |
Below 1 V |
| W4-7 (IG2) - W4-3 (GND) |
B - W-B |
Power source |
Power switch on (IG) |
11 to 14 V |
| W4-8 (FSR+) - W4-4 (FSR-) |
L - LG |
Airbag sensor assembly communication line |
Power switch on (IG) |
Pulse generation |
| W4-9 (BSW) - W4-5 (BGND) |
G - P |
Passenger side buckle switch line |
Always |
Pulse generation |
| W3-1 (SGD1) - W4-3 (GND) |
G - W-B |
Front occupant classification sensor LH ground line |
Always |
Below 1 V |
| W3-2 (SGD2) - W4-3 (GND) |
LG - W-B |
Front occupant classification sensor RH ground line |
Always |
Below 1 V |
| W3-3 (SGD3) - W4-3 (GND) |
W - W-B |
Rear occupant classification sensor LH ground line |
Always |
Below 1 V |
| W3-4 (SGD4) - W4-3 (GND) |
BR - W-B |
Rear occupant classification sensor RH ground line |
Always |
Below 1 V |
| W3-5 (SVC3) - W3-3 (SGD3) |
GR - W |
Rear occupant classification sensor LH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
| W3-6 (SVC4) - W3-4 (SGD4) |
V - BR |
Rear occupant classification sensor RH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
| W3-7 (SIG1) - W3-1 (SGD1) |
P - G |
Front occupant classification sensor LH signal line |
Power switch on (IG), a load applied to front occupant classification sensor LH |
0 to 5.1 V |
| W3-8 (SIG2) - W3-2 (SGD2) |
L - LG |
Front occupant classification sensor RH signal line |
Power switch on (IG), a load applied to front occupant classification sensor RH |
0 to 5.1 V |
| W3-9 (SIG3) - W3-3 (SGD3) |
SB - W |
Rear occupant classification sensor LH signal line |
Power switch on (IG), a load applied to rear occupant classification sensor LH |
0 to 5.1 V |
| W3-10 (SIG4) - W3-4 (SGD4) |
B - BR |
Rear occupant classification sensor RH signal line |
Power switch on (IG), a load applied to rear occupant classification sensor RH |
0 to 5.1 V |
| W3-11 (SVC1) - W3-1 (SGD1) |
R - G |
Front occupant classification sensor LH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
| W3-12 (SVC2) - W3-2 (SGD2) |
W - LG |
Front occupant classification sensor RH power supply line |
Power switch on (IG) |
4.9 to 5.1 V |
