Back Door Entry Unlock Function does not Operate: Wiring Diagram

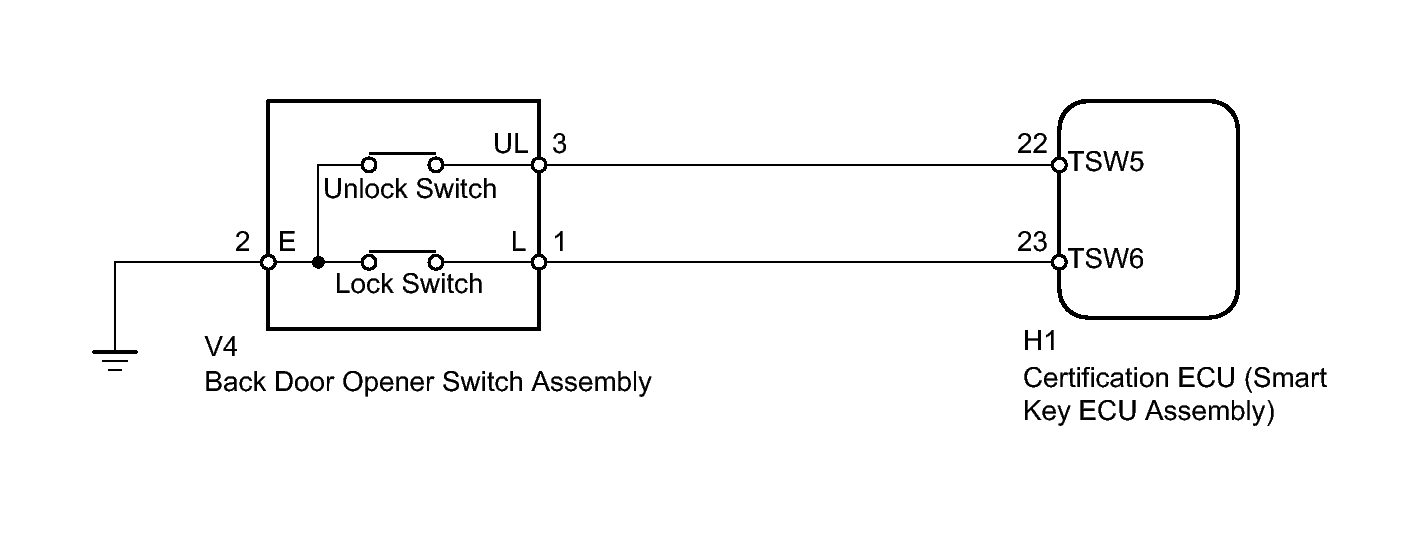

Fig 1: Identifying Back Door Entry Unlock Function Wiring Diagram

GTY347812

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
