Sound Signal Circuit between Navigation ECU and Multi-media Interface ECU: Wiring Diagram

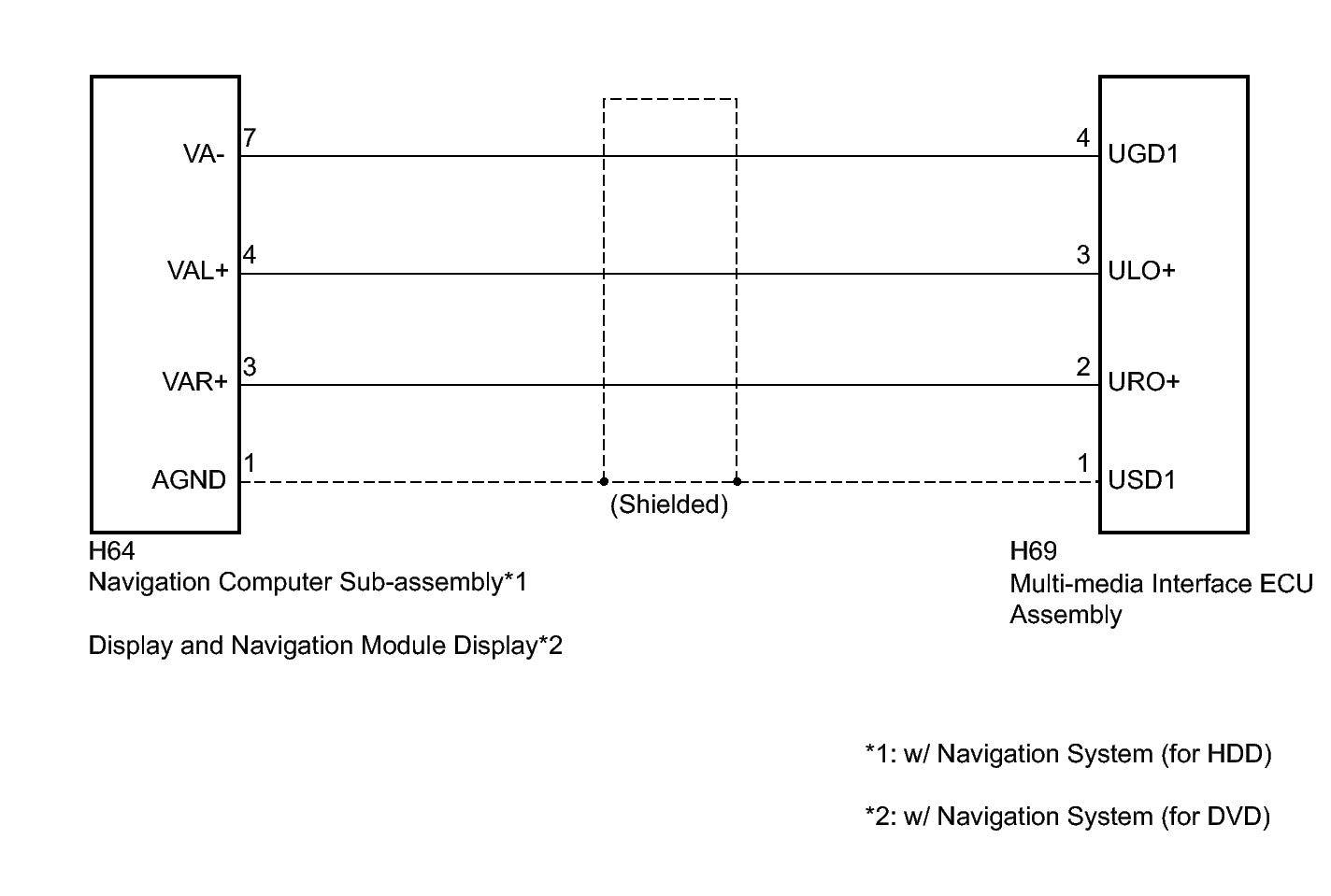

Fig 1: Identifying Navigation ECU and Multi-Media Interface ECU
GTY349597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
