Center Differential Lock Switch: Components: Illustration

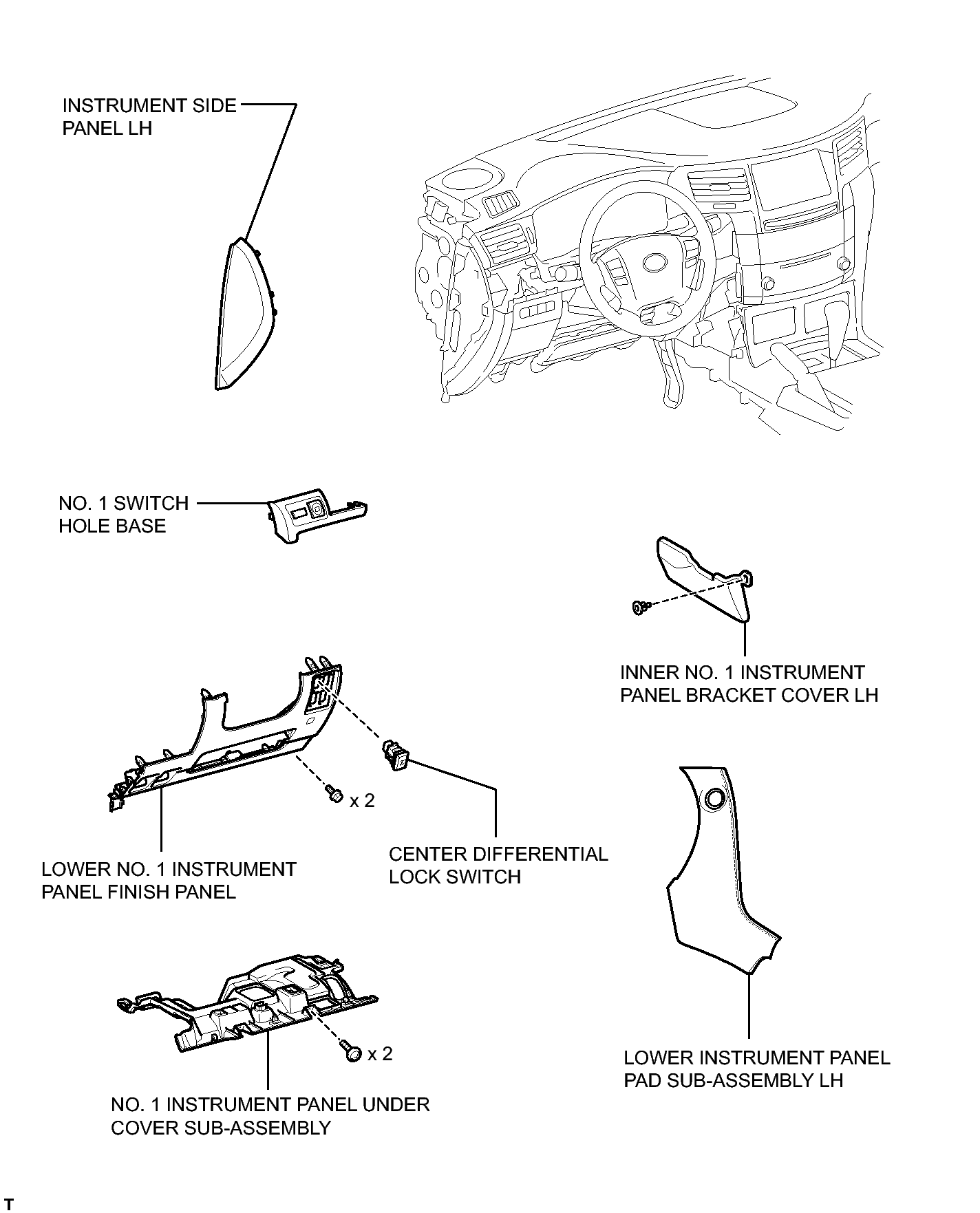

Fig 1: Identifying Center Differential Lock Switch Replacement Components

GTY134993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
