Shift Lever: Components: Illustration

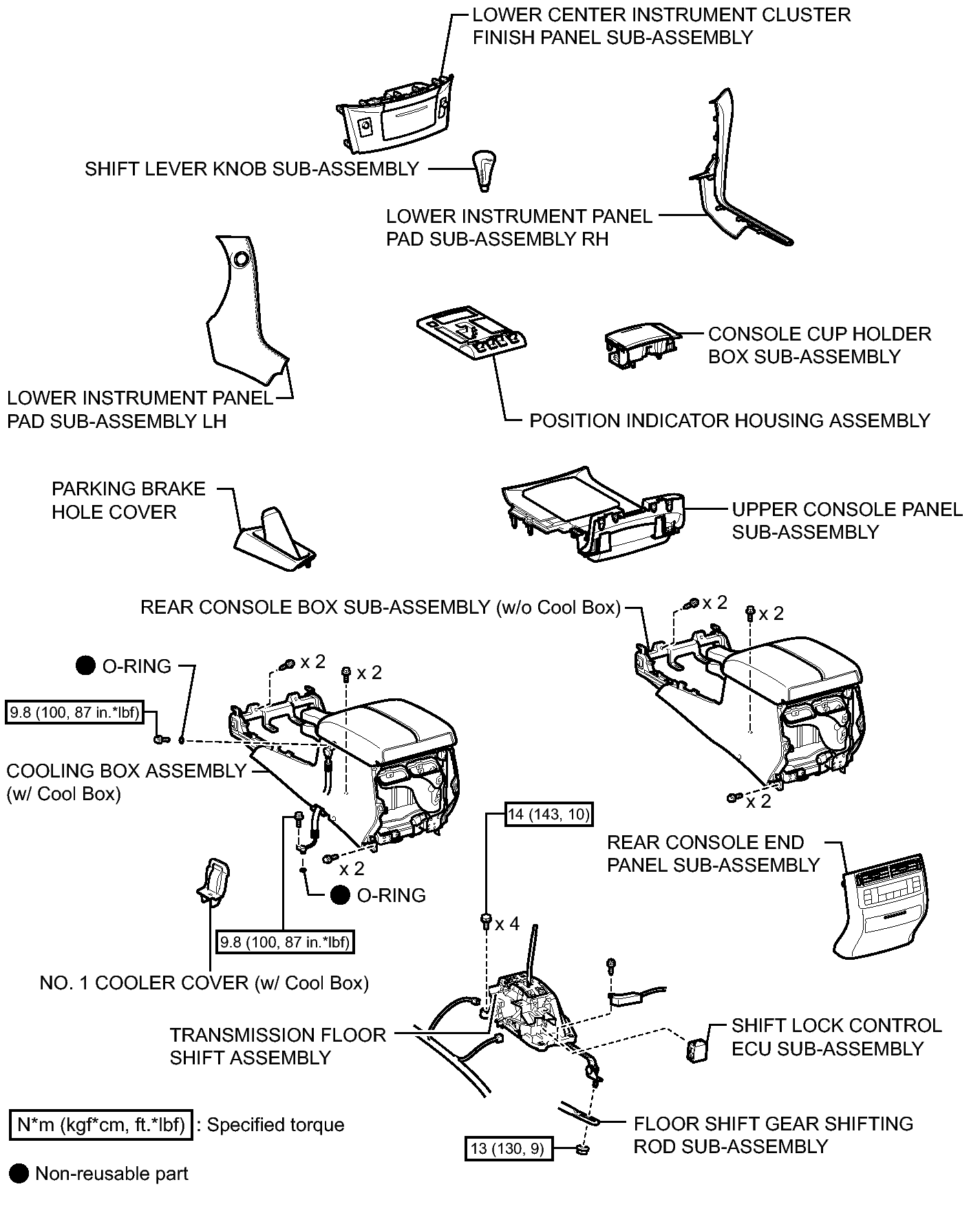

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (1 Of 2)
GTY108911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

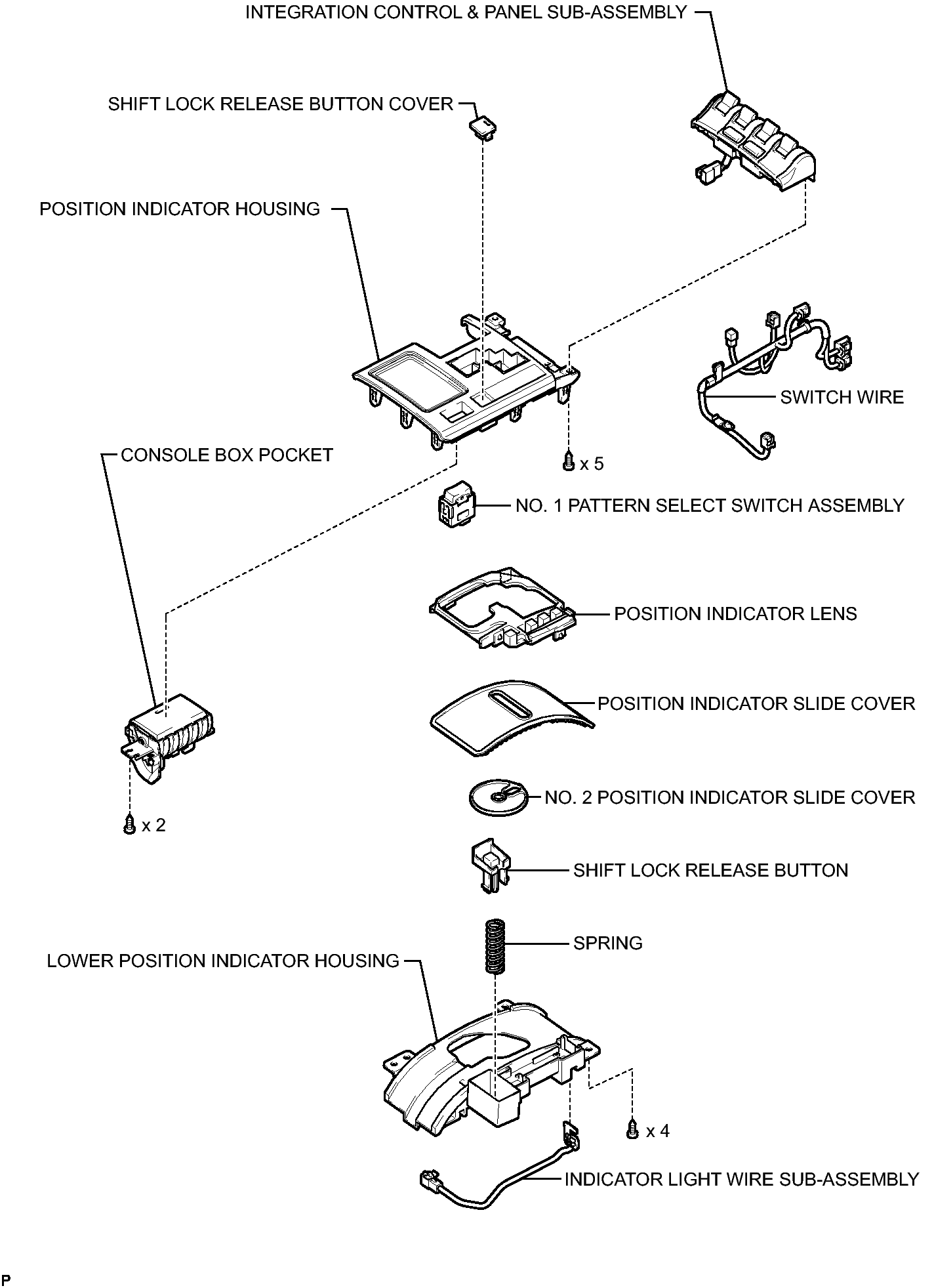

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (2 Of 2)
GTY108905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
